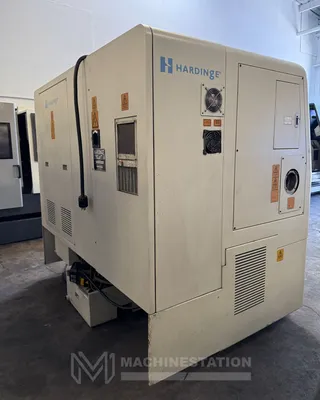

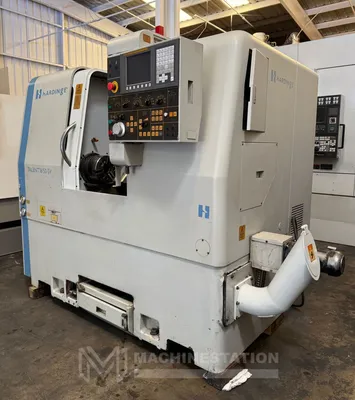

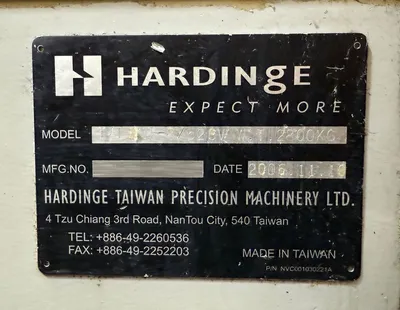

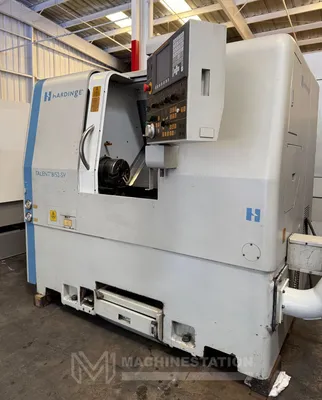

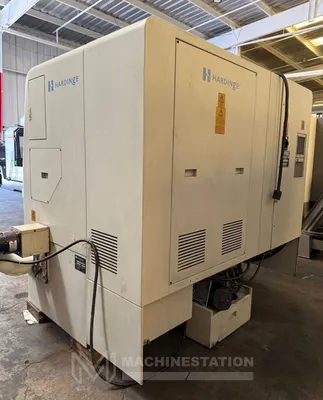

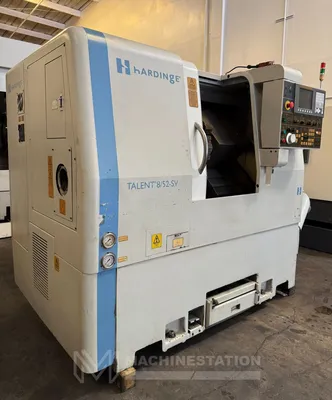

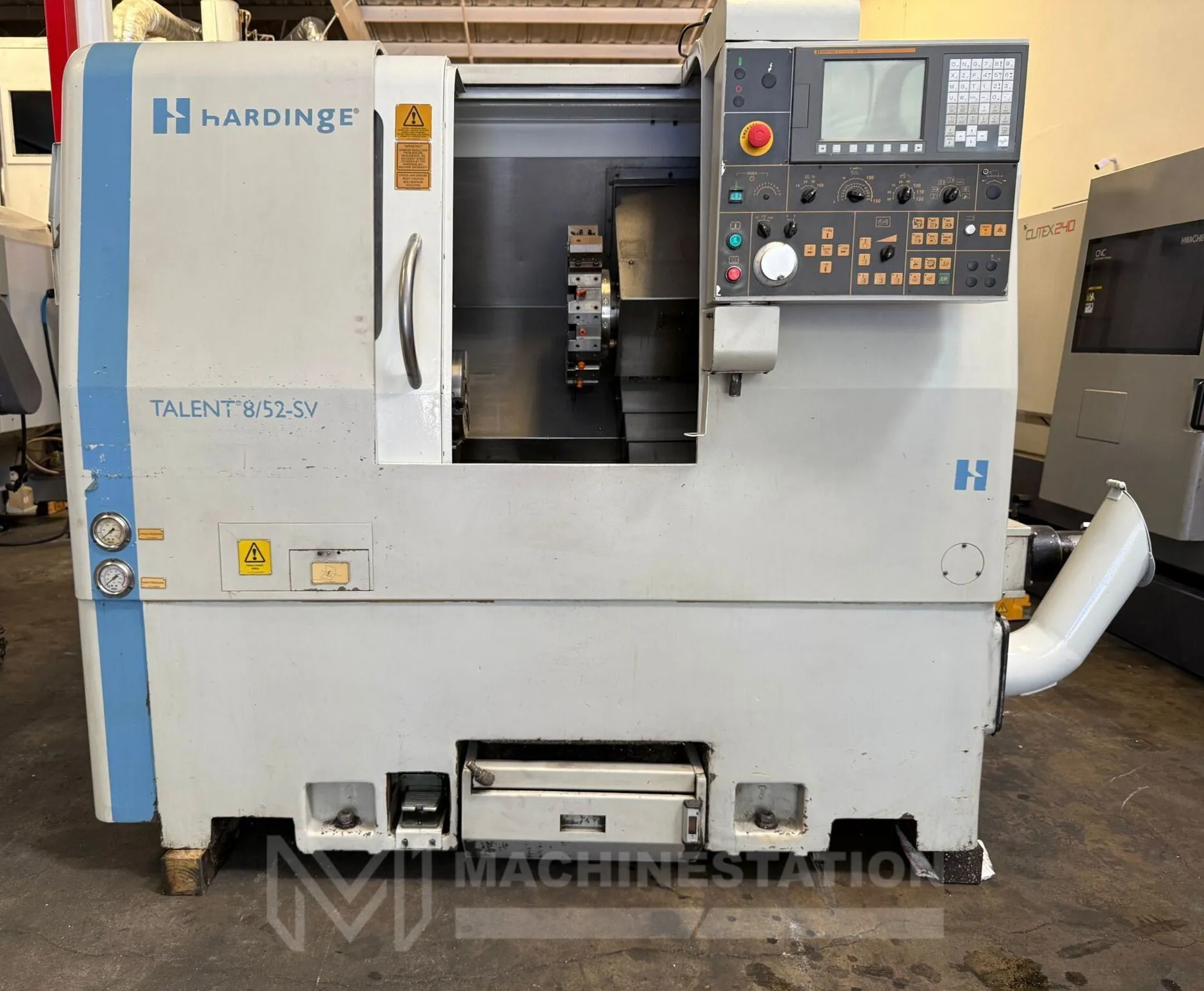

USED 2006 HARDINGE TALENT 8/52-SV
Overview
Specifications
| Swing | 18" | 457.2 mm |
|---|---|---|
| Machining Length | 15" | 381 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.05" | 52.07 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 11" | 279.4 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc Oi-TC CNC Control) | CNC (Fanuc Oi-TC CNC Control) |
| Dimensions | 80″ x 65″ x 70″ High Approx. | 80″ x 65″ x 70″ High Approx. |
| Weight | 6,200 lbs Approx. | 6,200 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final
Features:

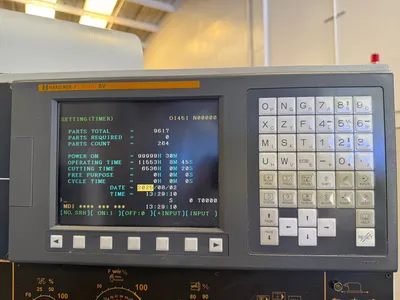

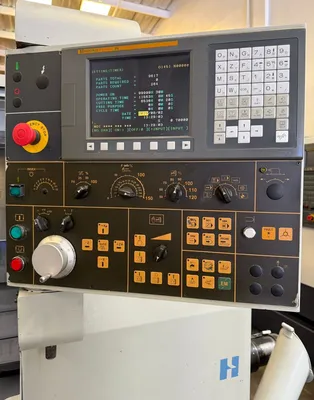

Fanuc Oi-TC CNC Control
Linear Ways Construction
6,536 Hours Cutting Time
A2-6, 5000 RPM Spindle
12 Station Automatic Turret
PCMCIA Card Interface
Coolant System
Capacity:
Max Turning Diameter: 11.00″
Max Turning Length: 15.00″
Max Swing Over Bed: 18.00″
Max Bar Capacity: 2.05″
Travels:
X Axis Travel: 9.00″
Z Axis Travel: 16.00″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.56″
Spindle Speed: 5000 RPM
Spindle Motor: 20 HP

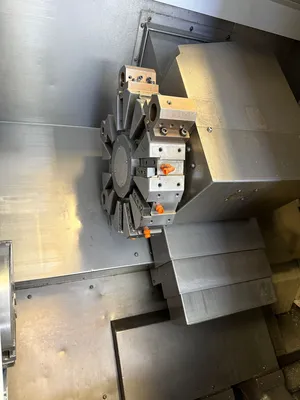

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.78 Second
Tool Size: 1″
Tool Holders Type: BMT
General:

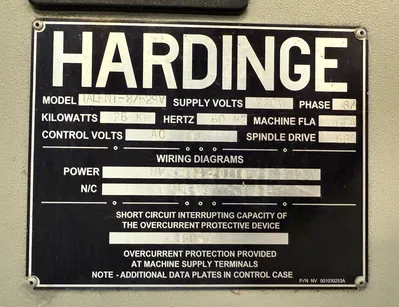

Power: 50/60 HZ / 220v / 3-Phase / 25 kw
Overall Dimensions: 80″ x 65″ x 70″ High Approx.
Weight: 6,200 lbs Approx.
Equipped With

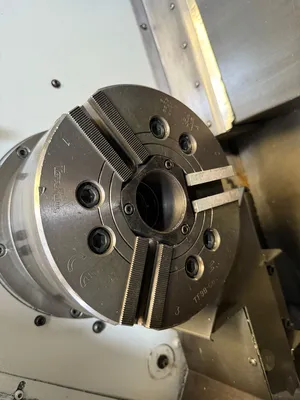

8″ 3- Jaw Hydraulic Chuck
Rigid Tapping
Foot Switch
Chip Auger

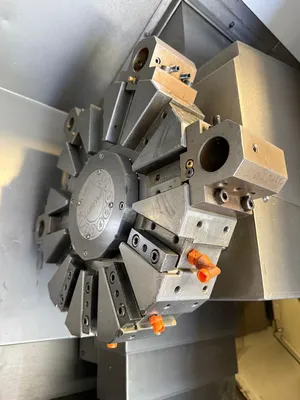

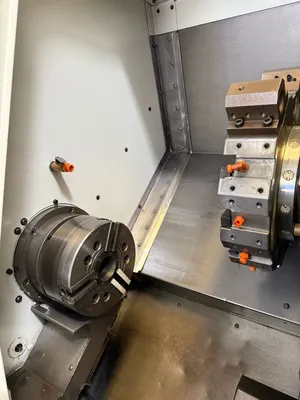

(4) Boring Tool Holders Mounted on Turret (As shown in the images)
