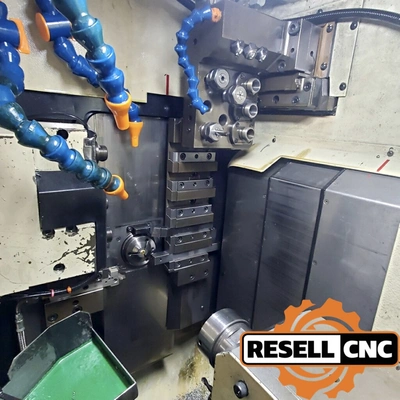

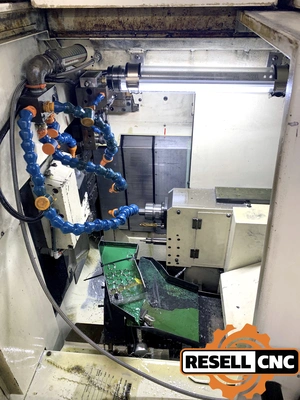

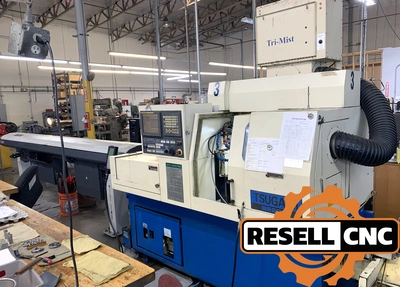

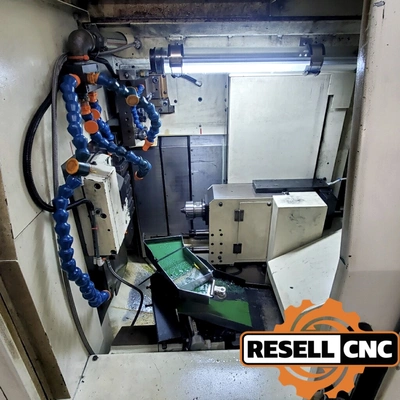

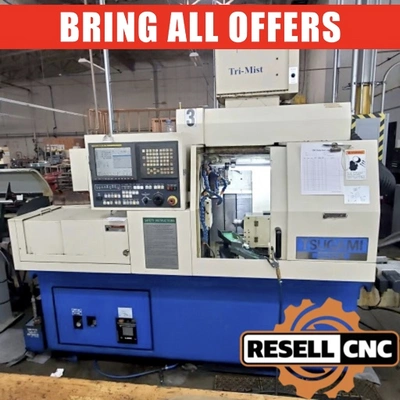

USED 2006 Tsugami BS20(C)-III

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: true
Additional Machine Specs: Main Spindle Drilling Diameter: 0.39"

Tool Spindle Speeds: 200 - 5,000 RPM

Back Rotary Tool Speeds: 200 - 4,000 RPM



MP Systems High Pressure Coolant

Tri-Mist Mist Collector

Parts Conveyor

Bar Capacity: 0.78
Barfeeder Make Model: LNS 12' Barfeed
B Axis: false
C Axis: true
Chuck Type: Collet

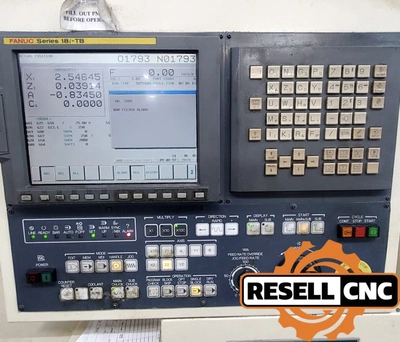

Control Make Model: Fanuc 18i-TB Series CNC Control
Coolant Type S: High Pressure Coolant
Distance Between Centers: 8.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Mist Collector
Max Cutting Turning Diameter: 0.787
Max Swing Over Bed: 0.79
Max Turning Cutting Length: 8.26
Programmable Tailstock: false
Rapid Traverse: 945/1260
Second Spindle Speed: 7,000
Single Turret: false
Single Turret Live Tooling: false
Spindle Speed: 8000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 22.0
Turret Max Rpm: 5000
Twin Turret: false
X Travel: 0.79
Y Axis: true
Z Travel: 8.26
