X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: true
Additional Control Options: Spiral Interpolation
3D Cutter Compensation
Geometric Command
Hobbing
Shape Compensation
Thread Cutting
Re-Threading
Thread Start Point Compensation
Inverse Time Feed
3D Coordinate Rotation
Comparison Stop
G54.1
Flash Tool
Rotation Axis Shape Compensation
G00 Slope Constant
600 Sets Variable
Cylinder
Rotary-Axis Sub Micron
Simultaneous 5-Axis
Helical Tap Cycle
Tilted Working Plane Command
Mazatrol Planet Tap
Tool Center Point Control
Additional Machine Specs: Travels:
- Y-Axis: 25.6"
- B-Axis: 0.0001° Contouring
- C-Axis: 1000 RPM

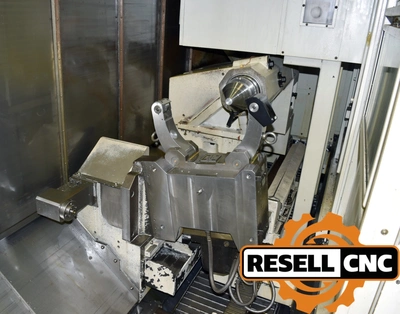

SMW Autoblock Hydraulic Steady Rest: 1.7" - 12.2"
LNS SMW Model SLU Z 5.1/Z
Elevated Chip Conveyor
Boring Bar Stocker and 3 Boring Bar Attachment: 100mm, 80mm
Prep for Multi and Flash Tool System
Prep for MMS-B Optical Probe
Prep for 1000 PSI Super Flow Coolant
Coolant Thru Milling Head
Multitap Transformer
Modification for Rear Chuck Mount
Filtration System
*Please Note: Tooling and Boring Bar in Photo NOT Included
Approx Weight And Dims Of Accessories: Magazine: 156" x 120" x 54"
Pallet of Tooling: 72" x 48" x 12"
Conveyor & Covers: 276" x 68” x 72"
Large Cover: 108" x 60" x 48"
Control (pallet): 48" x 48" x 18”
Covers (pallet): 48" x 48" x 24"
Covers (pallet): 48" x 48" x 24"
Lifting Lug (Wood Box): 42” x 42” x 18”
High Pressure Pump: 60" x 24" x 48"
E-Tower: 120" x 48" x 30”
Chiller: 48" x 36" x 60"
Bar Capacity: 10.2
B Axis: true
C Axis: true
Chip Removal: Chip Conveyor

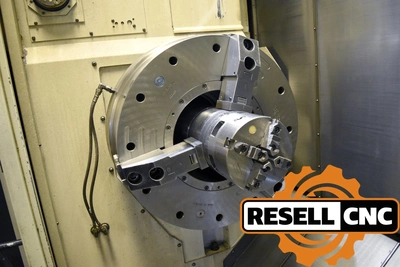

Chuck Description: Schunk 3-Jaw Air Chuck
Chuck Size: 24.0
Chuck Type: Air

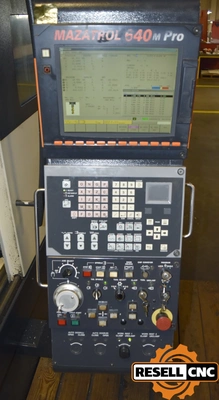

Control Make Model: Mazatrol 640M Pro CNC Control
Control Options: Coordinate Rotation and Scaling, Helical Interpolation, Synchronized Tapping, Inch/Metric Conversion, Rotation and Scaling, EIA/ISO Code Input Function
Coolant Type S: High Pressure Thru-Spindle Coolant
Distance Between Centers: 120.0
Live Milling Hp: 50 HP
Live Milling Max Rpm: 10,000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Transformer, Mist Collector, Automatic Tool Length Measurement System, Tool Eye
Max Cutting Turning Diameter: 36.0
Max Swing Over Bed: 36.22
Max Turning Cutting Length: 120.78
Probe Make Model: Renishaw Probe
Programmable Tailstock: true
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 10.2
Spindle Motor: 50
Spindle Nose: A2-11
Spindle Speed: 1000.0
Steadyrest Capacity: 12.2
Steadyrest Type: Hydraulic
Sub Spindle: false

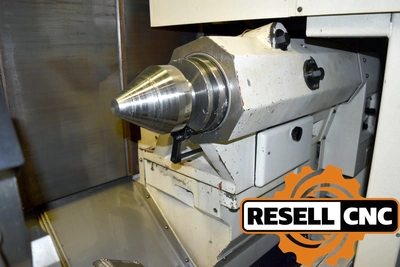

Tailstock: true
Tool Positions: 80.0
Twin Turret: false
X Travel: 40.35
Y Axis: true
Z Travel: 122.0
