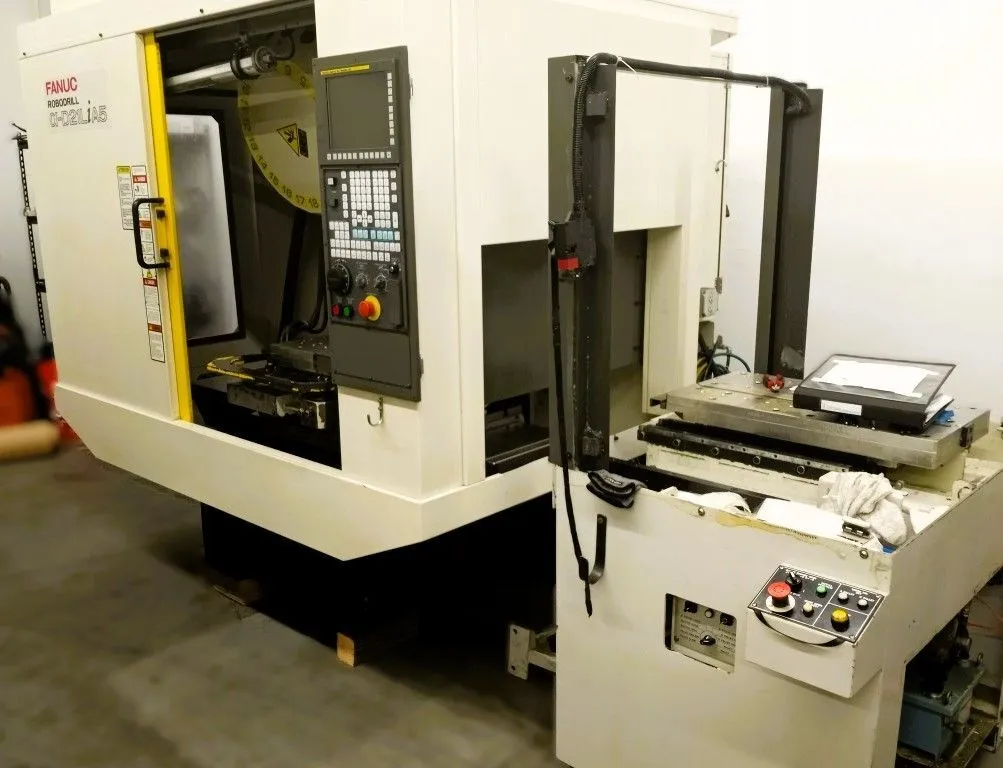

Fanuc Robodrill D21LiA5 Drilling & Tapping Center, New in 2012
| X-Axis | 27.6" | 701.04 mm |
| Y-Axis | 15.7" | 398.78 mm |
| Z-Axis | 13" | 330.2 mm |
| Power | 18 hp | 13.4 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 4 | 4 |
| Taper | 30 | 30 |
| Control | CNC (Fanuc 16M) | CNC (Fanuc 16M) |
| Weight | 4,400 lbs | 4,400 lbs |
General Specifications:
Controller Fanuc: 16M
Travel X,Y,Z: 20."x14.96"x11.81"
Table: 27.50 x 15.5
Max Table Weight: 330 lbs
Distance Table Nose to Spindle Center: 5.5"~16.1"
Spindle Taper: BT 30
Spindle : 10,000 rpm
Tapping: 6,000 rpm
Horsepower: 7.5 HP
Torque at 30 minutes: 51 ft-lbs
Rapid Traverse X/Y/Z axis: 1,260 imp
Tool Changer: 10 + 1 tool
Max Tool Diameter (With out adjacent tool): 3.0" ( 5.9" )
Max Tool Weight: 17.0 lbs
Tool to Tool time: 1.1 sec
Chip To Chip : 1.8 sec
Guide Ways: Linear Motion
Weight: 4,4000 lbs
Power on Time: 6074H
Cutting Time: 849H
Run Time: 2381H
Pallet changer included
Power on time 6074 hrs
Run Time 2831 hrs
Work Light
