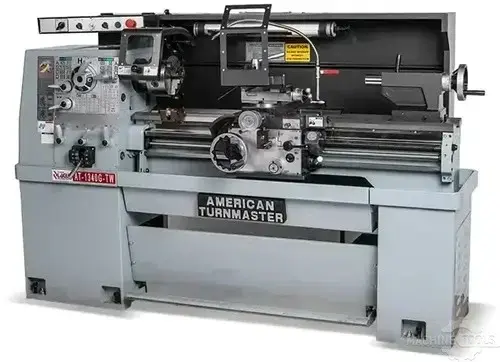

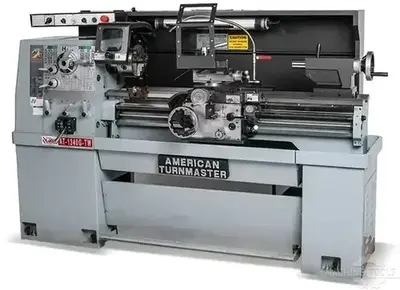

NEW LAGUN AT-1340-G-TW
Overview
Specs
Swing Over Bed: 13.39″
Swing Over Cross Slide: 8.27″
Distance Between Centers: 39.37″
Length of Bed: 15.75″
Spindle Speed RPM Range: 50-2570 RPM
Hole Through Spindle: 1.25″
Spindle Nose: D1-4
Motor HP: 5 HP
Quill Diameter: 1.97″
Quill Travel: 4.41″
Inch Thread Range (TPI): 2-72 TPI
Metric Thread Range: 0.2 – 14
Tailstock Spindle Taper: MT 3
Voltage: 3/60/220 V
Equipped With
Disk Clutch Headstock, 3 V Ways, Manual Operation, Chip and coolant tray, Foot brake, Full length rear splash guard, Compound protection guard (without limit switch), Manual Indexing Square 4-position tool post, Back Plate (to mount plain back 3 or 4 jaw chuck or fixture plate; dog or face plate), Two (2) No. 3 MT centers and main spindle reduction sleeve, Lead screw protection cover, Halogen work light, Operator protection guard compound mounted, Leveling pads and bolts, Threading dial, Inch/metric dual dials on cross slide; compound & tailstock, Flood coolant system
