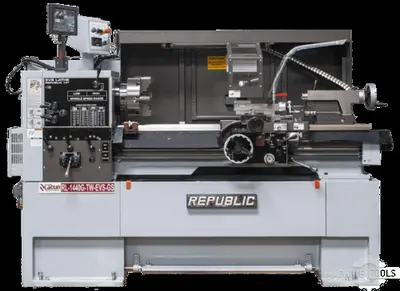

NEW REPUBLIC LAGUN RL-1440G-TW-EVS-GS GUNSMITHING LATHE
Specs
Swing Over Bed: 14.17″ (360 mm)
Swing in Gap: 20.98″ (360 mm)
Swing Over Cross Slide: 8″ (212 mm)
Distance Between Centers: 40″ (1000 mm)
Width of Bed: 10.24″ (260 mm)
Spindle Nose, Internal Taper: D1-6 / A1-6 (Opt) / MT No. 6
Spindle Bore: 2.07″ (52.5 mm)
Spindle Speeds (Gear Steps/Range): 2 Steps / L: 20-400 RPM, H: 400-2500 RPM (Opt 25-3000 RPM Infinitely Variable)
Width of Bridge: 16.22″ (412 mm)
Cross Slide Travel: 8.66″ (220 mm)
Top Slide Travel: 4.9″ (125 mm)
Longitudinal Feeds: 0.002-0.067″ (0.05-1.7 mm)
Cross Feeds: 0.001-0.034″ (0.025-0.85 mm)
Quill Diameter: 2.5″ (65 mm)
Main Spindle: AC 5 HP (3.7 kW), Inverter
Coolant Pump: 1/8 HP (0.09 kW)
Net Weight: 2,976 lb (1,350 kg)
Length Packed: 89.4″ (2,270 mm)
Width Packed: 44″ (1,120 mm)
Height Packed: 74.8″ (1,900 mm)
Equipped With

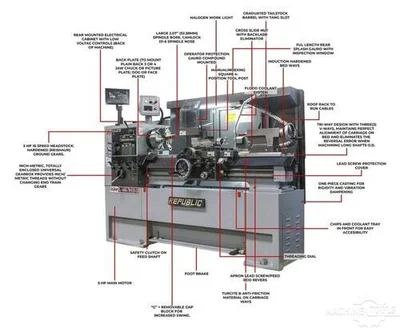

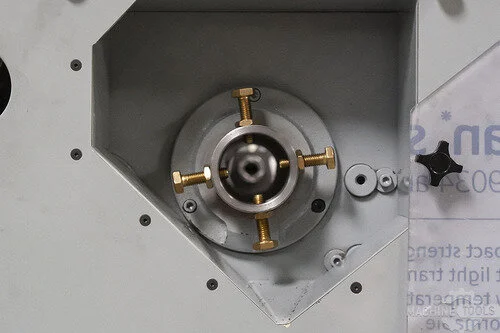

Hardened and Ground Gears, Hardened and Ground Tri-V Bedways, Outboard Spider, Acu-Rite 300S DRO with Thread Cycle, Headstock Mounted RPM Readout, Dual Inch/Metric Dials with Graduations, Quick Change Tool Post, Removable Chip Pan, Flood Coolant System, Foot Brake
