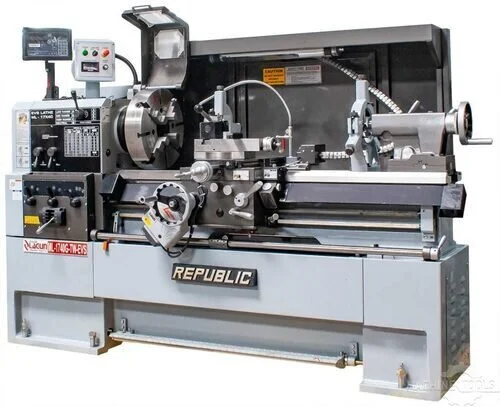

NEW REPUBLIC LAGUN ML-1740-G-TW & ML-2060-G-TW

Swing Over Bed: 17.12″ (435 mm) & 20″ (508 mm)
Swing Over Cross Slide: 10.91″ (277 mm) & 13.90″ (353 mm)
Distance Between Centers: 44″ (1,120 mm), 57″ (1,450 mm), 59.06″ (1,500 mm)
Length of Bed: 17.3″ (440 mm)
Spindle Speed RPM Range: 36-1,800 RPM (20-2,200 RPM with optional EVS)
Hole Through Spindle: 3.15″ (80 mm)
Spindle Nose: D1-6
Motor HP: 7.5 HP
Disk Clutch Headstock: No
Inch Thread Range (TPI): 2-72 TPI
Metric Thread Range: 0.2-14
Tailstock Spindle Taper: M.T.4
Digital Threading Control: No
CNC or Manual: Manual

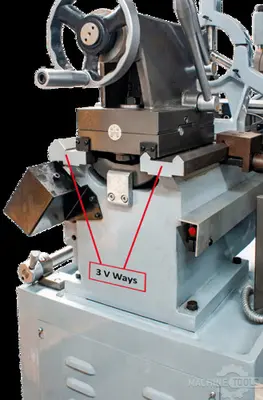

High Speed Engine Lathe: 7.5 HP, 12 Speeds from 36 to 1,800 RPM, Cam Lock Spindle D1-6, 3-1/8″ Spindle Bore, 3 V Ways, Manual Operation
