| Dimensions | 6.29′ L x 2.41′ W x 3.91′ H / 1.95m x 0.73m x 1.19m | 6.29′ L x 2.41′ W x 3.91′ H / 1.95m x 0.73m x 1.19m |
| Weight | 1650 lbs / 748.42 Kg | 1650 lbs / 748.42 Kg |
Swing Over Bed: 14 in. / 355.6 mm
Swing Over Cross Slide: 8.62 in. / 218.94 mm
Swing Over Gap: 20 in. / 508 mm
Gap Width (In Front Of Face Plate): 9.25 in. / 234.9 mm
Distance Between Centers: 40 in. / 1016 mm

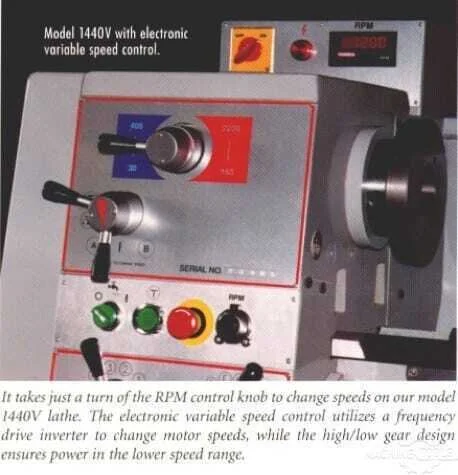

Spindle Speed: 30 – 2200 RPM
Spindle Nose: D1-4 camlock
Spindle Bore: 1.5 in. / 38.1 mm
Threads (Inch/Metric): 4 – 112 tpi / 0.45 – 7.5 mm (40 / 22)
Longitudinal Feeds: 0.0012 – 0.03 in./rev / 0.03 – 0.7 mm/rev
Cross Feeds: 0.0003 – 0.01 in./rev / 0.007 – 0.3 mm/rev
Leadscrew Pitch, Diameter: 8 tpi, 7/8 in. / 8 tpi, 22.225 mm

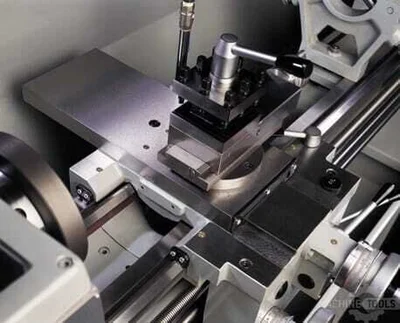

Cross Slide Travel: 6.6 in. / 167 mm
Compound Travel: 4 in. / 101.6 mm
Compound Width: 3.5 in. / 88.9 mm
Bed Length: 66 in. / 1676.4 mm
Bed Width: 8.5 in. / 206.24 mm
Quill Diameter: 1.75 in. / 44.45 mm
Quill Travel: 4.5 in. / 114.3 mm
Quill Center Taper: MT #3
Voltage: 220V/440V
Phase: 3 phase
Power Consumption (220V): 3.2 KVA / 10 amps
Power Consumption (440V): 3.2 KVA / 5 amps
Standard Accessories: 3-jaw 8″ chuck, steady rest, Removeable gap, back plate, Coolant system, 4 way toolpost, Full length splash guard, Center sleeves, dead center, tool kit, wired 220V, for 440V, need new motor, or transformer
Optional Accessories: 3-jaw chuck, different sizes, 4-jaw chuck, different sizes, Chuck guard w/ limit switch, Follow rest, Roller jaw set for steady rest, Taper attachment, Quick change tool holder set (7 pcs. Holder), Live center – MT#3, Drill & arbors, Face plate (12″), 4-way carriage stop, Micrometer carriage stop safety cover on end of spindle, Halogen work light, tool guard (at front of compound slide with limit switch), Lead screw cover (accordion style), 5C collet set (1/8″ to 1-1/16″ by 1/16″) 16 pcs., 5C lever collet closer
