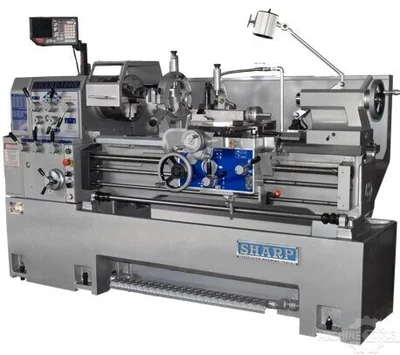

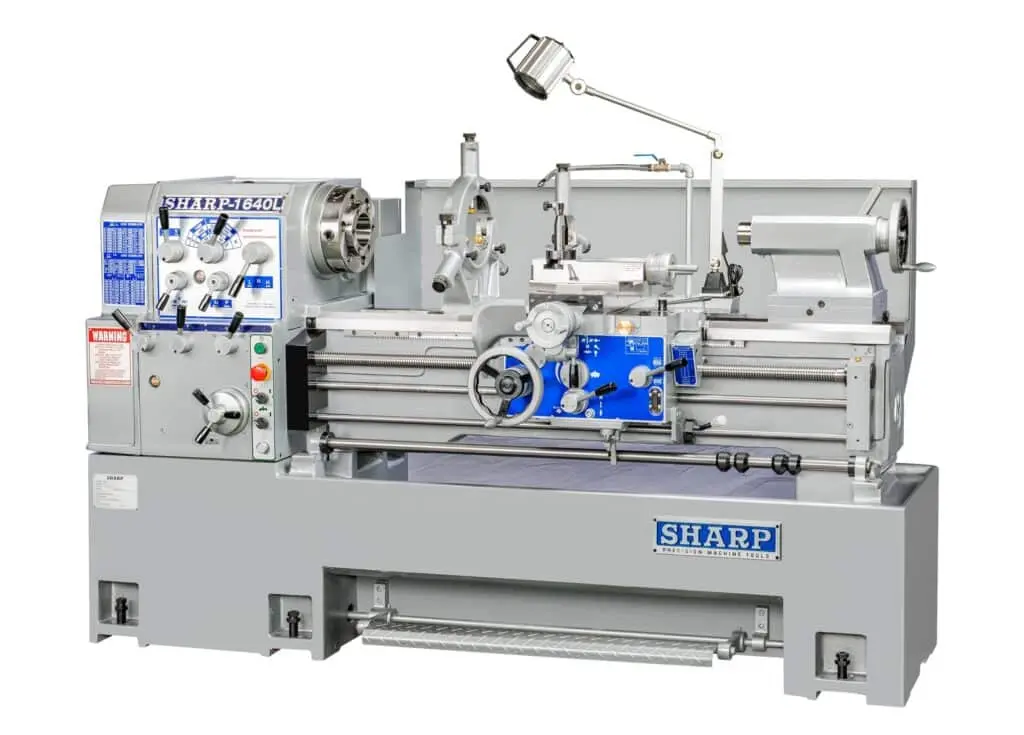

| Dimensions | 7.05′ L x 2.66′ W x 3.9′ H / 2.15m x 0.81m x 1.19m | 7.05′ L x 2.66′ W x 3.9′ H / 2.15m x 0.81m x 1.19m |
| Weight | 3461.26 lbs / 1570 Kg | 3461.26 lbs / 1570 Kg |
Swing Over Bed: 16 in. / 406 mm
Swing Over Cross Slide: 8.75 in. / 222.25 mm
Swing Over Gap: 25.5 in. / 650 mm
Gap Width (In Front Of Face Plate): 11.81 in. / 300 mm
Distance Between Centers: 40 in. / 1000 mm

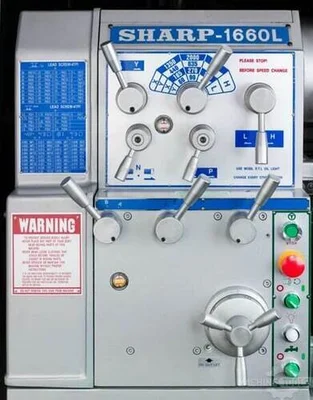

Spindle Speed: 40 – 2000 RPM

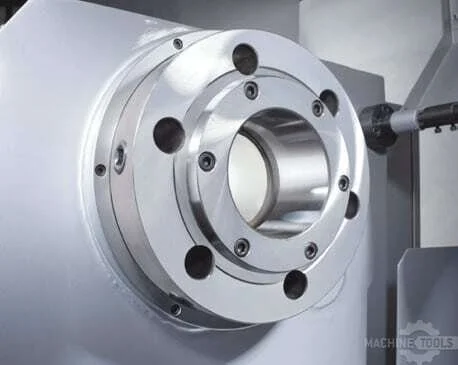

Spindle Nose: D1-8 Camlock
Spindle Bore: 3.18 in. / 58 mm
Threads (Inch/Metric): 4 – 56 tpi / 0.5 – 7 mm (36 / 17)
Modular Threads: 0.019 – 0.275 in. (17)
Diametral Pitch Threads: 0.157 – 2.20 in. / 4 – 56 mm (36)
Longitudinal Feeds: 0.002 – 0.032 in./rev / 0.05 – 0.82 mm/rev
Cross Feeds: 0.0001 – 0.0094 in./rev / 0.02 – 0.4 mm/rev
Leadscrew Pitch, Diameter: 1.37 in. / 35 mm
Cross Slide Travel: 9.84 in. / 250 mm
Compound Travel: 4.92 in. / 125 mm
Compound Width: 4.5 in. / 114.3 mm
Bed Length: 84.44 in. / 2145 mm
Bed Width: 11.8 in. / 300 mm
Quill Diameter: 2.28 in. / 58 mm
Quill Travel: 5.9 in. / 150 mm
Quill Center Taper: MT #4
Spindle Motor: 7.5 HP / 5.625 KW
Voltage: 230V/460V
Phase: 3 phase
Power Consumption (220V): 8 KVA / 25 amps
Power Consumption (440V): 8 KVA / 12.5 amps

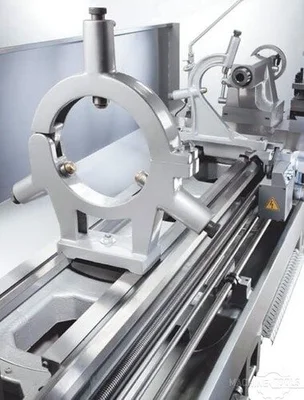

Standard Accessories: 3-jaw 10″ chuck, 12” Face plate, steady rest, Removeable gap, back plate, Coolant system, American tool post, Full length splash guard, Center sleeves, dead center, tool kit, Wired 220V or 440V
Optional Accessories: 3-jaw 12″ chuck, 4-jaw 12″ chuck, Chuck guard, Tool guard (at front of compound slide with limit switch), Lead screw cover (full length, accordion style), Safety cover at end of spindle, UL or CSA electrical components, UL spindle motor, CSA pump motor
