| Dimensions | 11.22′ L x 2.66′ W x 4′ H / 3.42m x 0.81m x 2.22m | 11.22′ L x 2.66′ W x 4′ H / 3.42m x 0.81m x 2.22m |
| Weight | 4,894.26 lbs. / 2,220 Kg | 4,894.26 lbs. / 2,220 Kg |
Swing Over Bed: 18 in. / 457 mm
Swing Over Cross Slide: 10.2 in. / 259.08 mm
Swing Over Gap: 27.17 in. / 690 mm
Gap Width (In Front Of Face Plate): 11.81 in. / 300 mm
Distance Between Centers: 86.6 in. / 2200 mm
Spindle Speed: 40 – 2000 RPM

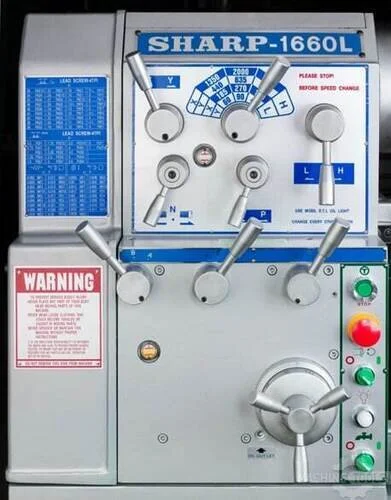

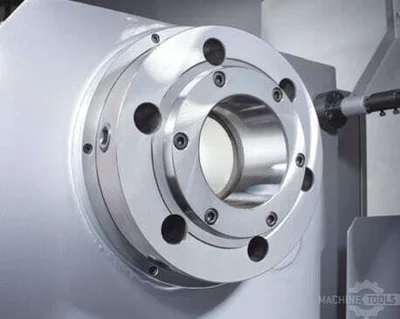

Spindle Nose: D1-8 Camlock
Spindle Bore: 3.18 in. / 58 mm
Threads (Inch/Metric): 4 – 56 tpi / 0.5 – 7 mm (36 / 17)
Modular Threads: 0.019 – 0.275 in. (17)
Diametral Pitch Threads: 0.157 – 2.20 in. / 4 – 56 mm (36)
Longitudinal Feeds: 0.002 – 0.032 in./rev / 0.05 – 0.82 mm/rev
Cross Feeds: 0.0001 – 0.0094 in./rev / 0.02 – 0.4 mm/rev
Leadscrew Pitch, Diameter: 1.37 in. / 35 mm
Cross Slide Travel: 10.8 in. / 275 mm
Compound Travel: 4.92 in. / 125 mm
Compound Width: 5 in. / 127 mm
Bed Length: 134 in. / 3415 mm
Bed Width: 11.8 in. / 300 mm
Quill Diameter: 2.68 in. / 68 mm
Quill Travel: 5.9 in. / 150 mm
Quill Center Taper: MT #4
Spindle Motor: 7.5 HP / 5.625 KW
Voltage: 220V/440V
Phase: 3 phase
Power Consumption (220V): 8 KVA / 25 amps
Power Consumption (440V): 8 KVA / 12.5 amps

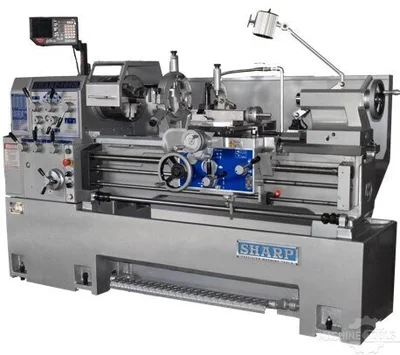

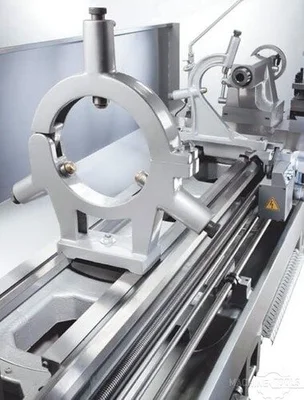

Standard Accessories: 3-jaw 10″ chuck, 12” Face plate, steady rest, Removeable gap, back plate, Coolant system, American tool post, Full length splash guard, Center sleeves, dead center, tool kit, Wired 220V or 440V
Optional Accessories: 3-jaw 12″ chuck, 4-jaw 12″ chuck, Chuck guard, Tool guard (at front of compound slide with limit switch), Lead screw cover (full length, accordion style), Safety cover at end of spindle, UL or CSA electrical components, UL spindle motor, CSA pump motor
