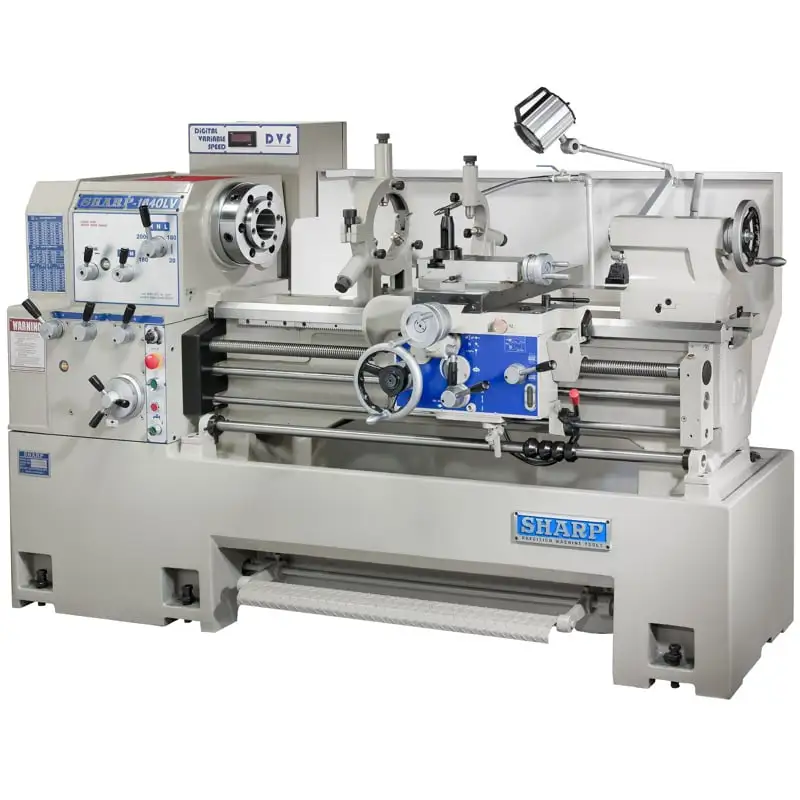

| Dimensions | 7.05′ L x 2.66′ W x 3.91′ H / 2.15m x 0.81m x 1.19m | 7.05′ L x 2.66′ W x 3.91′ H / 2.15m x 0.81m x 1.19m |
| Weight | 3,600 lbs. / 1,632.9 Kg | 3,600 lbs. / 1,632.9 Kg |
Swing Over Bed: 16 in. / 406 mm
Swing Over Cross Slide: 8.75 in. / 222.25 mm
Swing Over Gap: 24.37 in. / 618.9 mm
Gap Width (In Front Of Face Plate): 9.75 in. / 247.6 mm
Distance Between Centers: 40 in. / 1,016 mm

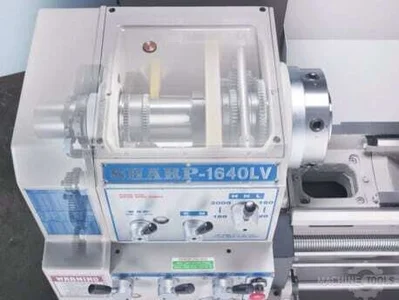

Spindle Speed: Hi: 235-2,000 rpm, Low: 20-170 rpm

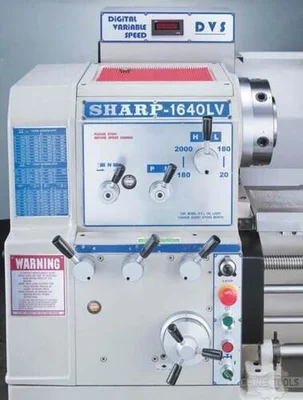

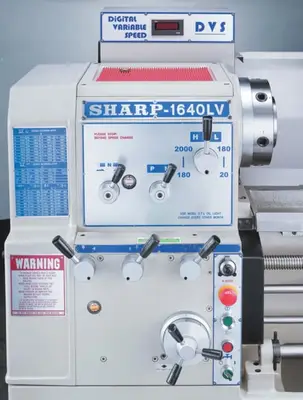

No. of Spindle Speeds: 12

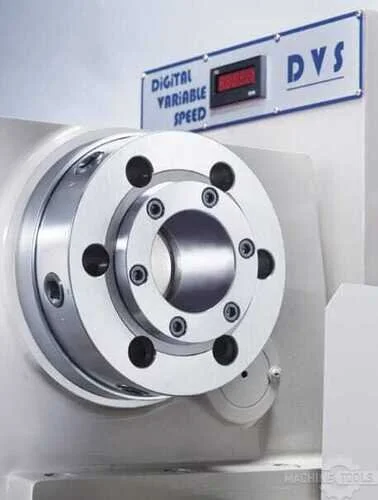

Spindle Nose: D1-8 camlock
Spindle Bore: 3.06 in. / 77.72 mm
Inch Threads, Number: 4-56 tpi (36)
Diametral Pitch Threads: 0.157-2.20 in. / 4-56 mm (36)
Longitudinal Feeds: 0.002-0.032 in./rev / 0.05-0.82 mm/rev
Cross Feeds: 0.0001-0.0094 in./rev / 0.02-0.4 mm/rev
Leadscrew Pitch, Diameter: 4 tpi, 1.37 in.
Cross Slide Travel: 9.8 in. / 250 mm
Compound Travel: 4.9 in. / 124.4 mm
Compound Width: 4.5 in. / 114.3 mm
Bed Length: 59 in. / 1,498.6 mm
Bed Width: 11.75 in. / 298.4 mm
Quill Diameter: 2.25 in. / 57.15 mm
Quill Travel: 5 in. / 127 mm
Quill Center Taper: MT #4
Spindle Motor: 7.5 HP / 5.59 KW
Voltage: 230V/460V
Phase: 3 phase
Power Consumption (230V): 8 KVA / 25 amps
Power Consumption (460V): 8 KVA / 12.5 amps

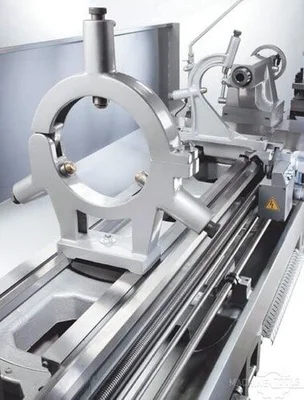

Standard Accessories: 3-jaw 10″ chuck, 12” face plate, steady rest, removeable gap, back plate, coolant system, American tool post, full length splash guard, center sleeves, dead center, tool kit, wired 220V or 440V
Optional Accessories: 3-jaw 12″ chuck, 4-jaw 12″ chuck, chuck guard, tool guard (at front of compound slide with limit switch), lead screw cover (full length, accordion style), safety cover at end of spindle, UL or CSA electrical components, UL spindle motor, CSA pump motor
