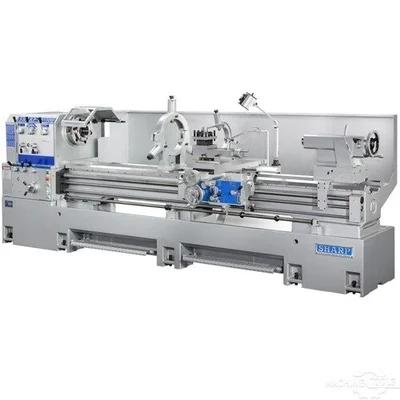

NEW SHARP 2240B, 2260B, 2280B, 22100B, 22120B, 22160B
Specs
Swing Over Bed: 22 in.
Swing Over Cross Slide: 13.2 in.
Swing Over Gap: 31 in.
Gap Width (In Front Of Face Plate): 11.81 in.
Distance Between Centers: 2240B: 40 in., 2260B: 60 in., 2280B: 80 in., 22100B: 100 in., 22120B: 120 in., 22160B: 160 in.
Spindle Speed: 10 – 1,000 RPM

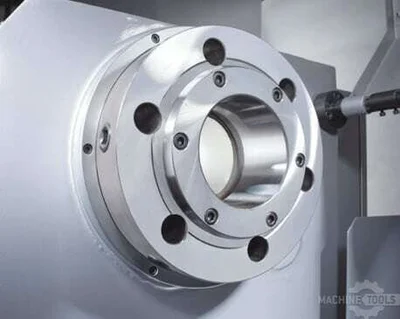

Spindle Nose: D1-11 Camlock
Spindle Bore: 4.5 in.
Threads (Inch): 2 – 56 tpi (44)
Modular Threads: 0.019 – 0.55 in. (24)
Diametral Pitch Threads: 0.157 – 2.20 in. (36)
Longitudinal Feeds: 0.0022 – 0.032 in./rev
Cross Feeds: 0.00026 – 0.035 in./rev
Leadscrew Pitch, Diameter: 4 tpi, 1.5 in.
Cross Slide Travel: 2240B: 14.75 in., 2260B: 14.75 in., 2280B: 14.75 in., 22100B: 11.8 in., 22120B: 11.8 in., 22160B: 11.8 in.
Compound Travel: 2240B: 8 in., 2260B: 8 in., 2280B: 8 in., 22100B: 6.2 in., 22120B: 6.2 in., 22160B: 7.8 in.
Compound Width: 6 in.
Bed Length: 22100B: 130.5 in., 22120B: 153 in., 22160B: 183 in.
Bed Width: 15.75 in.
Quill Diameter: 3 in.
Quill Travel: 6.5 in.
Quill Center Taper: MT #5
Spindle Motor: 15 HP
Voltage: 2240B: 220V/440V, 2260B: 220V/440V, 2280B: 230V/460V, 22100B: 230V/460V, 22120B: 230V/460V, 22160B: 230V/460V
Phase: 3 phase
Power Consumption (220V): 16 KVA / 45 amps
Power Consumption (440V): 16 KVA / 22.5 amps
Equipped With
Standard Accessories: 4-jaw 16″ chuck, face plate (20″), steady rest (4″ – 11.5″), 4 ways tool post, coolant system, halogen light, 4-way carriage stop, splash guard & 16″ chuck guard, tailstock, follow rest, tool kit, wired 220V or 440V
Optional Accessories: 3-jaw chuck (different sizes), 4-jaw chuck (different sizes), taper attachment, chuck guard w/ limit switch, tool guard w/ limit switch (at front of compound), lead screw cover (accordion style), lead screw guard (cover entire front of machine bed), safety cover at end of spindle UL or CSA electrical components, UL spindle motor, CSA pump motor, Steady rest, Quick change tool holder (aloris) (7 pcs holder) 1.25″ tool, Live center – (dual bearing) MT #5, 5C lever collet closer, 5C collet set (1/8 to 1/16″ x 1/16″) (16 pcs) • Micrometer carriage stop, Roller jaws set (3 pc)
