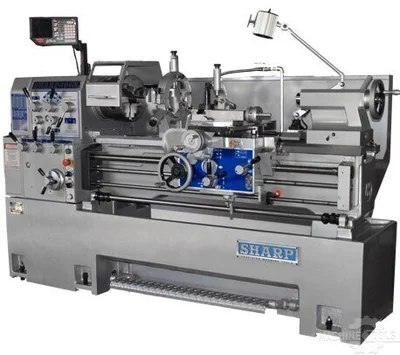

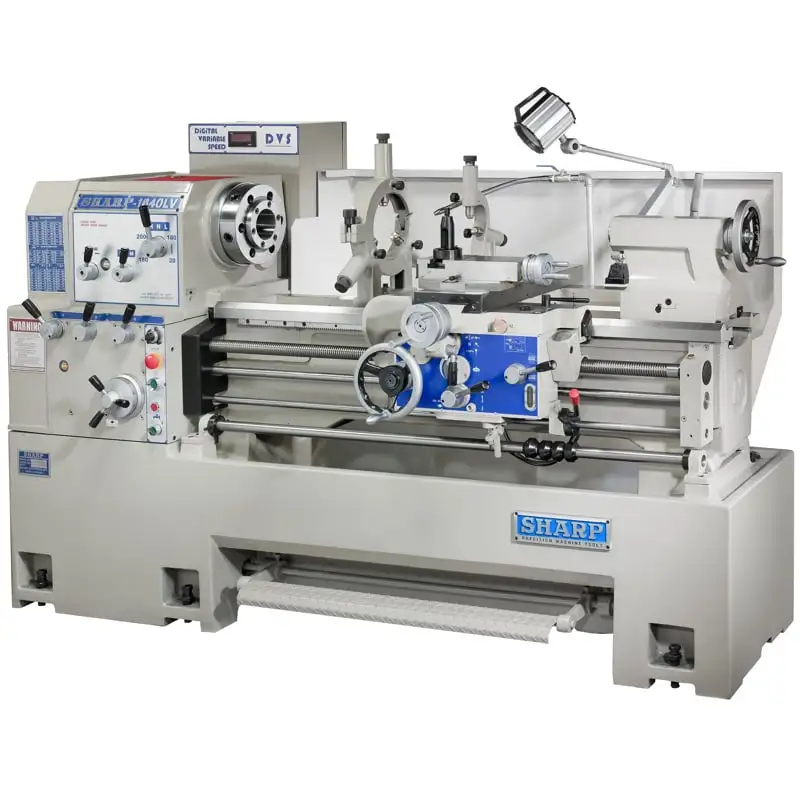

| Dimensions | 8.69′ L x 2.65′ W x 4′ H / 2.65m x 0.80m x 1.21m | 8.69′ L x 2.65′ W x 4′ H / 2.65m x 0.80m x 1.21m |
| Weight | 4,500 lbs. / 2,041.1 Kg | 4,500 lbs. / 2,041.1 Kg |
Swing Over Bed: 18 in. / 457 mm
Swing Over Cross Slide: 10.2 in. / 259.08 mm
Swing Over Gap: 27.12 in. / 688.8 mm
Gap Width (In Front Of Face Plate): 11.75 in. / 298.4 mm
Distance Between Centers: 60 in. / 1524 mm

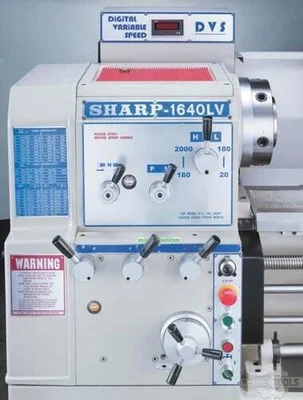

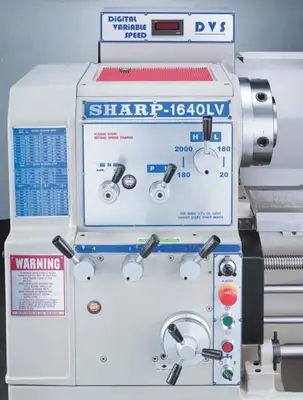

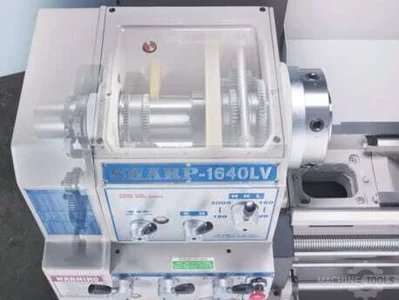

Spindle Speed: 20 – 2000 RPM (variable, high: 235-2000 rpm, low: 20-170 rpm, 12 speeds)

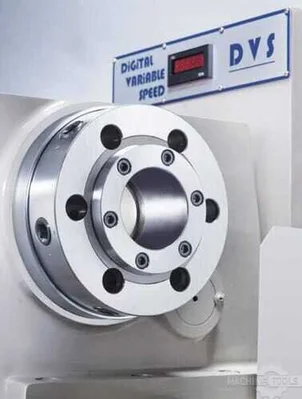

Spindle Nose: D1-8 Camlock
Spindle Bore: 3.06 in. / 77.7 mm
Threads (Inch/Metric): 4 – 56 tpi / 0.5 – 7 mm (36 / 17)
Modular Threads: Not provided
Diametral Pitch Threads: 0.157 – 2.20 in. / 4 – 56 mm (36)
Longitudinal Feeds: 0.002 – 0.032 in./rev / 0.05 – 0.82 mm/rev
Cross Feeds: 0.0001 – 0.0094 in./rev / 0.02 – 0.4 mm/rev
Leadscrew Pitch, Diameter: 4 tpi / 1.37 in.
Cross Slide Travel: 10.8 in. / 275 mm
Compound Travel: 4.9 in. / 124.4 mm
Compound Width: 5 in. / 127 mm
Bed Length: 79 in. / 2006.6 mm
Bed Width: 11.75 in. / 298.4 mm
Quill Diameter: 2.68 in. / 68.07 mm
Quill Travel: 5.5 in. / 139.7 mm
Quill Center Taper: MT #4
Spindle Motor: 7.5 HP / 5.59 KW
Voltage: 230V/460V
Phase: 3 phase
Power Consumption (230V): 8 KVA / 25 amps
Power Consumption (460V): 8 KVA / 12.5 amps

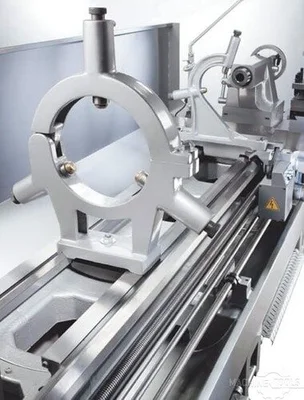

Standard Accessories: 3-jaw 10″ chuck, 12” face plate, steady rest, removable gap, back plate, coolant system, American tool post, full length splash guard, center sleeves, dead center, tool kit, wired 220V or 440V
Optional Accessories: 3-jaw 12″ chuck, 4-jaw 12″ chuck, chuck guard, tool guard (at front of compound slide with limit switch), lead screw cover (full length, accordion style), safety cover at end of spindle, UL or CSA electrical components, UL spindle motor, CSA pump motor
