| Weight | 8,200 lbs. | 8,200 lbs. |
Swing Over Bed: 24 in.
Swing Over Cross Slide: 2480V: 14.75 in., 24120V: 13.75 in., 24160V: 14.75 in.
Swing Over Gap: 33 in.
Gap Width (In Front Of Face Plate): 11.81 in.
Distance Between Centers: 2480V: 80 in., 24120V: 120 in., 24160V: 160 in.

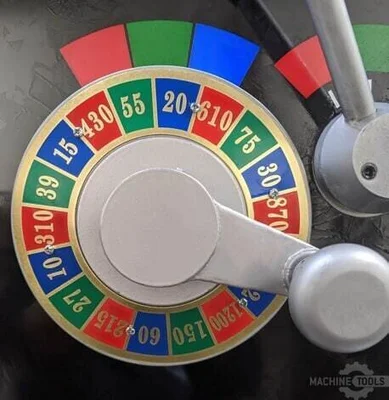

Spindle Speed: 10 – 1,200 RPM (18 speeds)

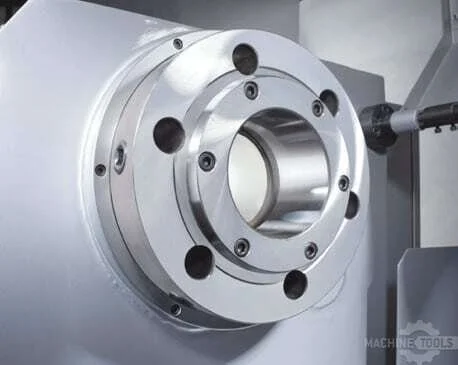

Spindle Nose: D1-11 Camlock
Spindle Bore: 4.125 in.
Threads (Inch/Metric): 0.25 – 84 tpi (60)
Modular Threads: 0.05 – 28 in. (55)
Diametral Pitch Threads: 1 – 240 (55)
Longitudinal Feeds: 0.0015 – 0.2 in./rev
Cross Feeds: 0.0006 – 0.16 in./rev
Leadscrew Pitch, Diameter: 1.5 in. / 2 tpi
Cross Slide Travel: 14.75 in.
Compound Travel: 9 in.
Compound Width: 30.25 in.
Bed Length: 2480V: 130.5 in., 24120V: 153 in., 24160V: 183 in.
Bed Width: 19 in.
Quill Diameter: 3.12 in.
Quill Travel: 7.5 in.
Quill Center Taper: MT #5
Spindle Motor: 15 HP
Voltage: 220V/440V
Phase: 3 phase
Power Consumption (220V): 15 KVA / 40 amps
Power Consumption (440V): 15 KVA / 20 amps

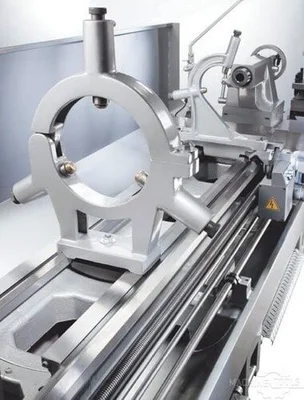

Standard Accessories: Steady rest with roller jaws, Face plate 20″, Coolant system, Longitudinal carriage stop, Halogen work light, Tailstock with 2 speeds on quill, Wired 220V or 440V
Optional Accessories: Taper attachment, Roller jaw set (3 pcs) for steady rest, 3-jaw chuck 12″, 4-jaw chuck 16″, Follow rest, Quick change tool holder, Live center – (dual bearing) MT #5, Live center – MT #5, Micrometer carriage stop, Steady rest (8-3/4″ – 13″, 11″ – 17″, 14″ – 21″), 20 HP motor in lieu of 15 HP motor, Rear splash guard (80″ / 120″ / 160″ length), CSA or UL electrical parts and wiring, Chuck guard with limit switch, Tool post guard, Spindle rear end cover, Lead screw cover
