Swing Over Bed: 33.9 in.
Swing Over Cross Slide: 21.3 in.
Swing Over Gap: 3460M: 45.3 in., 3480M: 47.3 in., 34120M: 47.3 in., 34160M: 45.3 in., 34200M: 47.2 in., 34240M: 47.3 in.
Gap Width (In Front Of Face Plate): 11.81 in.
Distance Between Centers: 3460M: 59 in., 3480M: 78.7 in., 34120M: 236.29 in., 34160M: 157.5 in., 34200M: 196.9 in., 34240M: 236.29 in.
Spindle Speed: 3460M: 11 – 810 RPM, 3480M: 11 – 810 RPM, 34120M: 11 – 810 RPM, 34160M: 11 – 810 RPM, 34200M: 16 – 810 RPM, 34240M: 16 – 810 RPM
Spindle Nose: A2-11
Spindle Bore: 6 in.
Threads (Inch): 2 – 28 tpi (36)
Modular Threads: 0.5 – 7 MP (22)
Diametral Pitch Threads: 4 – 56 DP (36)
Longitudinal Feeds: 0.0020 – 0.0276 in./rev
Cross Feeds: 0.001 – 0.0138 in./rev
Leadscrew Pitch, Diameter: 2 tpi / 1.77 in.
Cross Slide Travel: 16.9 in.
Compound Travel: 14.6 in.
Compound Width: 3460M: 25.8 in., 3480M: 26.8 in., 34120M: 26 in., 34160M: 26 in., 34200M: 26 in., 34240M: 25 in.

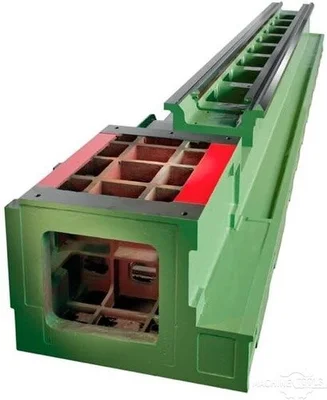

Bed Length: 3460M: 149.6 in., 3480M: 169.3 in., 34120M: 208.7 in., 34160M: 248 in., 34200M: 287.4 in., 34240M: 326.8 in.
Bed Width: 24 in.

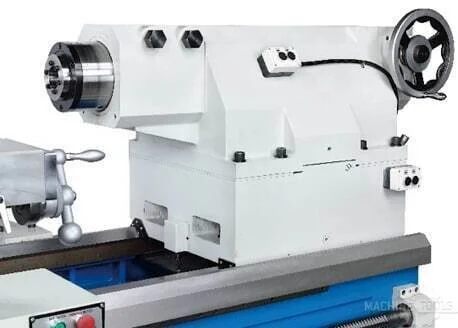

Quill Diameter: 3460M: 4.9 in., 3480M: 4.5 in., 34120M: 4.9 in., 34160M: 4.9 in., 34200M: 4.9 in., 34240M: 4.9 in.
Quill Travel: 11.8 in.
Quill Center Taper: MT #6
Spindle Motor: 20 HP
Voltage: 220V/440V
Phase: 3 phase
Power Consumption (220V): 16 KVA / 45 amps
Power Consumption (440V): 16 KVA / 22.5 amps

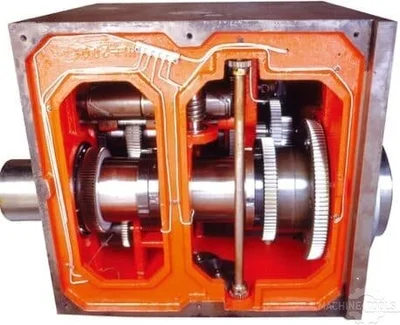

Standard Accessories: 12 spindle speeds, 2 stage spindle start up, headstock oil bath system, electro magnetic brake, lubrication system, coolant system, manual tailstock, steady rest 16″, work lamp

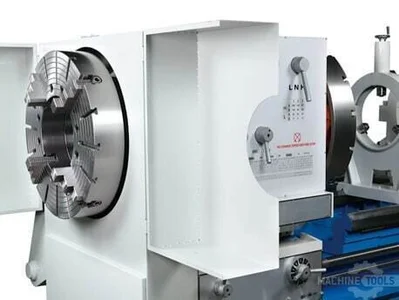

Optional Accessories: 3 jaw chuck (different sizes), 4 jaw chuck (different sizes), steady rest (larger sizes), follow rest (different sizes), face plate with 4 jaws (different sizes), rear chuck adapter, 40 HP motor in lieu of 20 HP motor, 50 HP motor in lieu of 20 HP motor, taper attachment, digital readout system
