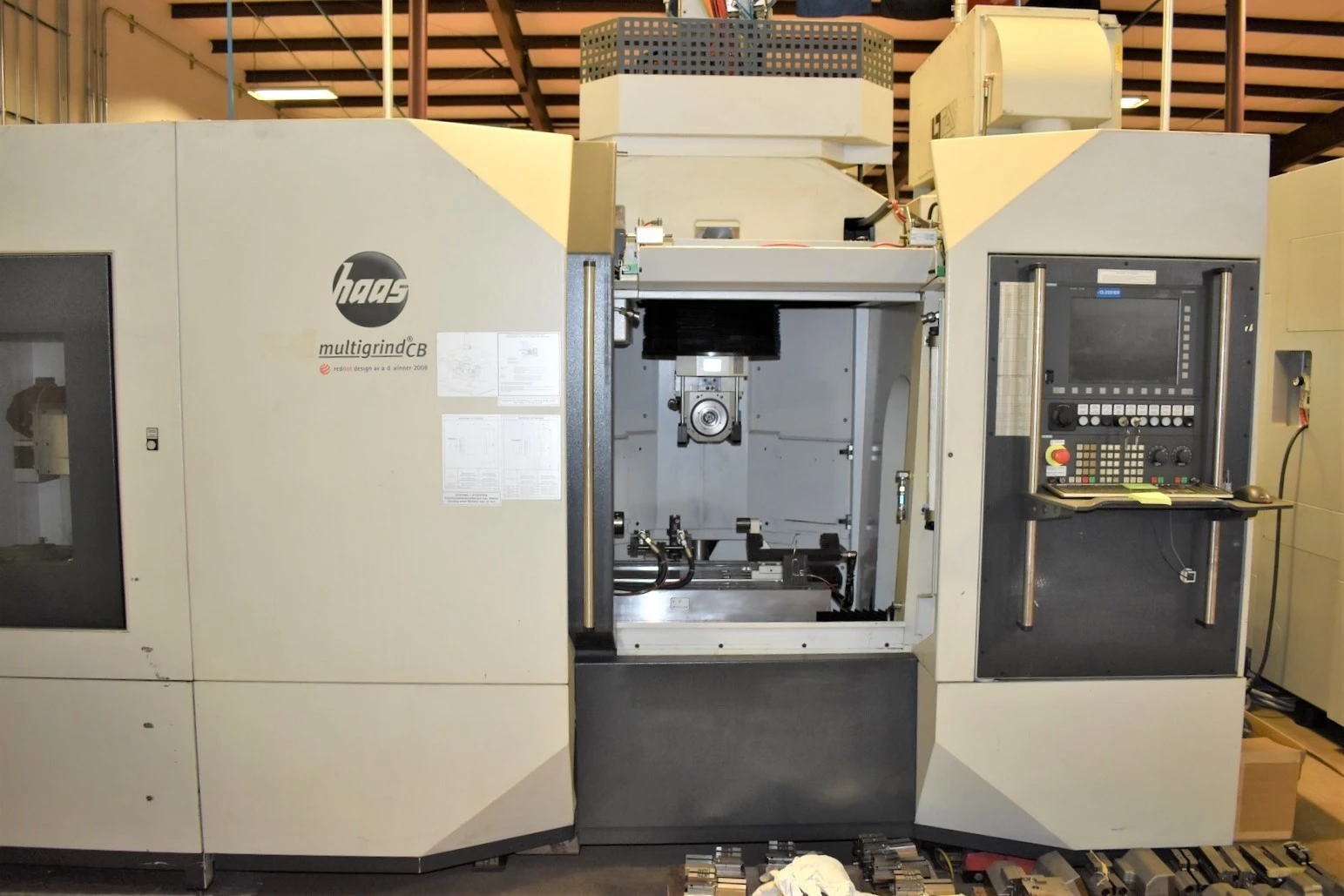

USED 2009 HAAS MULTIGRIND CB CNC GRINDER

Haas Model Multigrind CB CNC Creepfeed Grinder

Table Length: 39.3"
Table Width: 19.6"
X-axis: 15.7"
Y-axis: 15.7"
Z-axis: 14.7"
Circumberential Speed Of Grinding Wheel: 12,000 IPS
Main Spindle Motor: 40 HP
Taper: HSK-80
Workpiece Diameter: 13.3"
Working Length: 19.6"
Maximum Swing: 17.3"
Turret Positions: 8
Bar Stock Capacity: 2"
X3 Auxiliary Axis: 15.7"
Equipped with:
Siemens Sinumerik CNC Control
USB Port
Turbo Seperator Type HTS-22-8700 Coolant System Filtration System
LTA Industrial Air Cleaner
Parts Conveyor System
Tailstock
Program Warmup Switch
Open Roof Cover Switch
Semi Automatic Switch
Test Stop Safety Switch
Spindle Clamp/Unclamp Switch
Start Reference Axis Switch
Jog Confirmation Switch
Belt Grinding Attachment
Wheel Dresser
