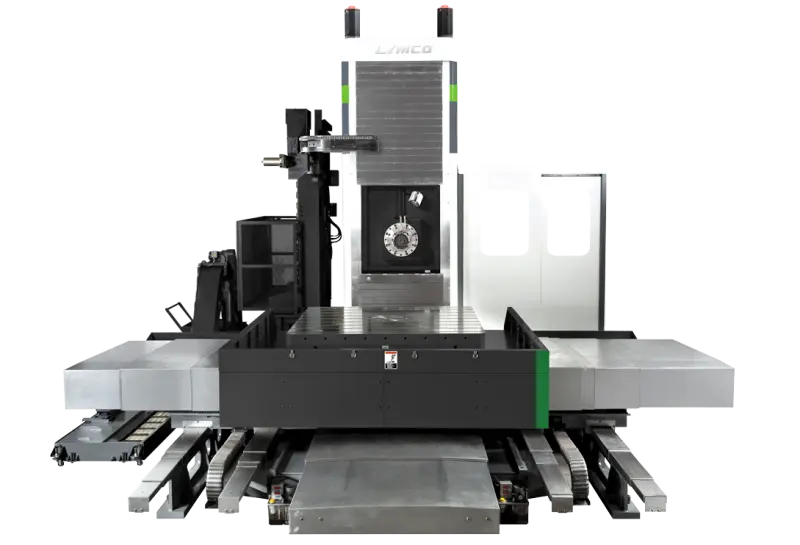

NEW Lymco Zentrum-110R2

ZENTRUM-110 is table type horizontal boring & milling machine with a fixed column design. The machine is vibration resistant and has a strongly braced box-type cast structure with great rigidity. ZENTRUM allows high precision to be maintained over a long period of time because it's box slideways are hardened and ground. The matching surfaces of the moving units are heat treated to HRC 50° hardness as well as coated with Turcite. It’s rigid structure has exceptional loading capacity for wide variety of job requirements.

Centrally mounted spindle.
ZENTRUM's spindle design based on technological cooperation with Japanese developers. This feature allows the spindle to sit in the middle of the column frame (box), thus forming a box-in-box structure. Additional stability is provided by dual Y-axis ball screws.

Accuracy by design
Massive 2+4 base design, TWO box ways paired by FOUR linear along the Z axis feed provide unparalleled support for heavy cutting on different applications. Box type hardness steel guideway with anti-friction Fluorine resin and forced-lubrication been applied for large-size machine and provided for the X, and Z axis guideways, positioning are performed with excellent accuracy and smooth stick/slip-free slide movements are assured.

Built for heavy duty
The stable performance for milling, drilling and boring operations on heavy workpieces of large dimensions.
