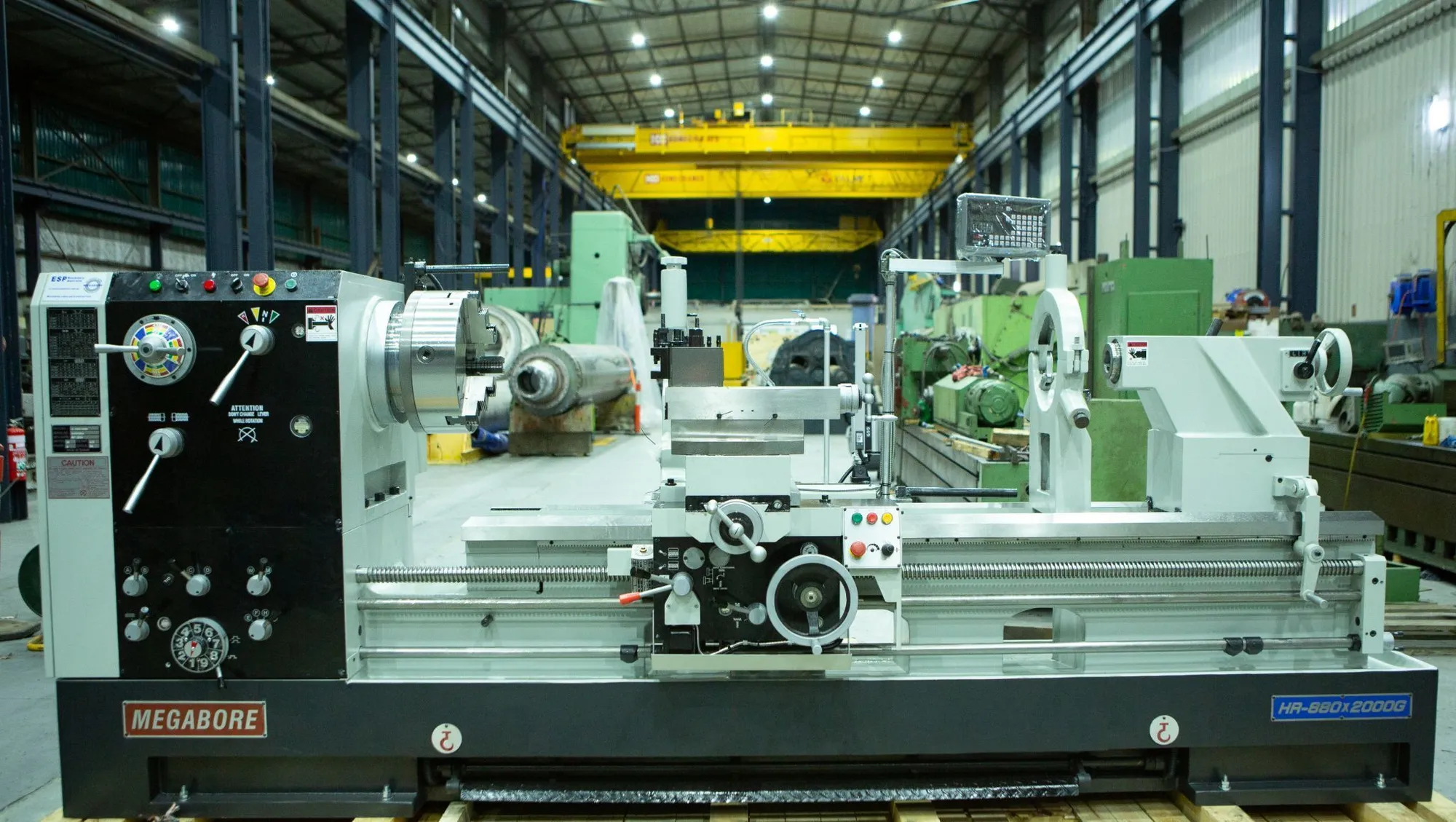

NEW ESP-MACHTURN HR
Overview
HR Heavy Duty Precision Lathe.
This machine is suitable for buyers who want a lathe well above normal expectations.
Made in Taiwan to a very high standard, comparable to any European machine.
•The spindle is 3 pointed type which is supported by precision tapper roller bearings.
•Cross slide heat treated and finished with precision grinding.
Headstock uniquely designed to use high class iron and all running parts are lubricated by
pressure pump. Forced lubrication system for headstock to ensure its lubrication and
cooling for high speed machining. Gears in the headstock are made of chromium molybdenum steel (SCM-21), for precise grinding.
Base one piece meehanite casting, which is heat treated and and precision ground.
We usually order this machine with 3 + 4 Jaw Chucks.
Rear Splash Guard
Sometimes Taper Turning.
When requesting price please note accessories required, swing and center distance.
Hollow spindle 4 or 6 inch.
Photos taken in our Melbourne facility.
Specs
Specification
MODEL HR-680,780,880,980
MODEL 1100G, 1600G, 2000G, 2500G, 3000G, 3500G, 4000G, 5000G, 6000G, 7000G, 8000G
CAPACITY
Swing over bed 680mm(26 7/8") 780mm(30 7/8") 880mm(34 3/4") 980mm(38 3/4")
Swing over cross slide 440mm(17 3/8") 540mm(21 1/4") 640mm(25 1/4") 740mm(29 1/8")
Swing over gap 970mm(38 1/8") 1070mm(42 1/8") 1170mm(46") 1270mm(50")
Width of gap 482mm(19")
Height of center (over bed) 340mm(13 3/8") 390mm(15 3/8") 440mm(17 3/8") 490mm(19 1/4")
Bed width 458mm(18")
HEADSTOCK Spindle nose A2-11(D1-11)
Spindle bore 105mm(4 1/8") / 155mm(6")opt
Number of spindle speed 12
Range of spindle speed 12, 20, 29, 40, 55, 85, 120, 175, 300, 445, 650, 1000 / 10, 17, 25, 36, 47, 70, 100, 150, 245, 370, 540, 800(Ø155mm)
STANDARD ACCESSORIES
Chuck back plate
Rapid feed system
Center #MT6 1pc
Coolant system
Work light
Tool box
Steady Ø420mm(16") Ø560mm(22")
OPTION ACCESSORIES
12"/15" 3-jaw scroll chuck
15"/20" 4-jaw independent chuck
Taper turning attachment
1pc Follow rest
Face plate
Steady Rest Ø280mm(11")
Rear splash guard
Equipped With
Chucks and Steadies to client requirements
