5 Axis, Wire Type, Under 7000 Hours, 23" x 18" Table
| Table Size-W | 13" | 330.2 mm |
| Table Size-L | 23" | 584.2 mm |
| X | 16" | 406.4 mm |
| Y | 10" | 254 mm |
| Z | 6" | 152.4 mm |
| size | 23" x 13" | 23" x 13" |

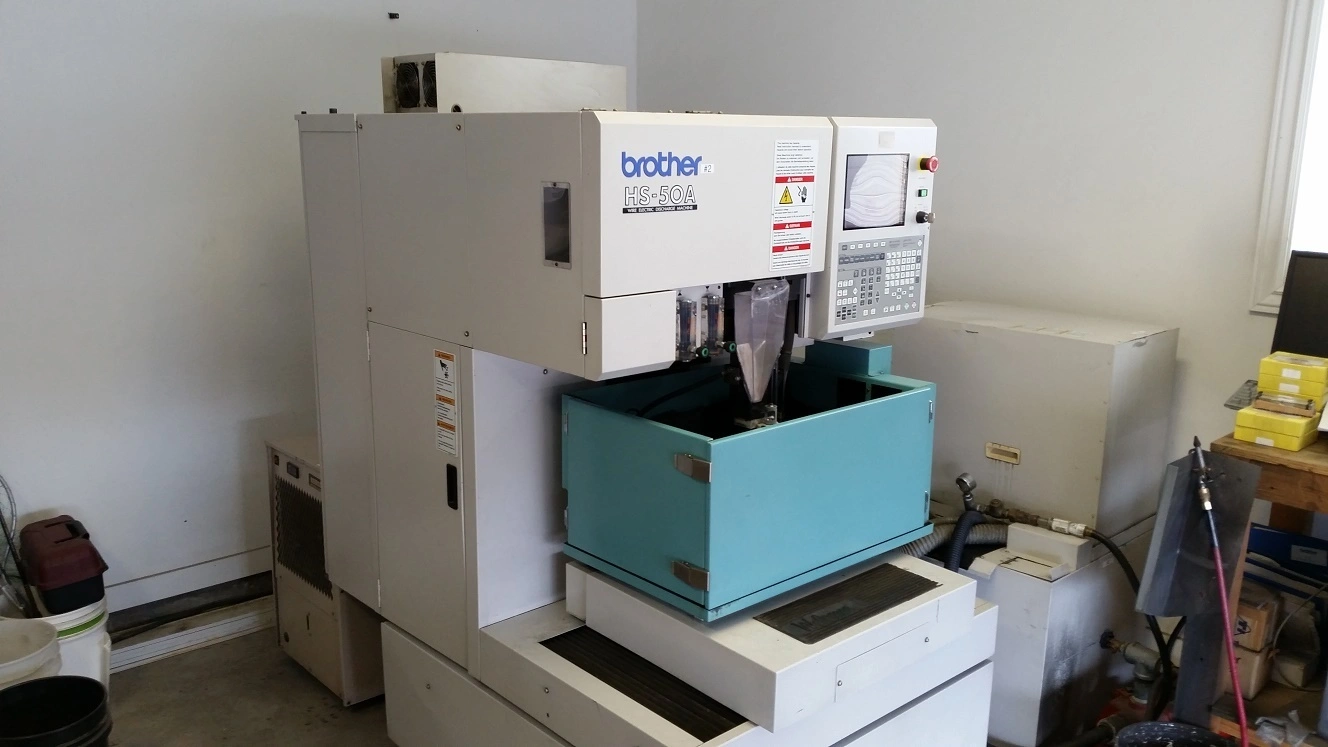

Brother Model HS-50A CNC Wire Type Electrical Discharge Machine
Table Size: 23" x 13.8"
Machining Stroke ( X x Y x Z ): 16.1" x 10.2" x 6.7"
U/V Travel: +/- 1.28"
Tank Size: 23" x 13.8" x 7"
Taper Angle: 15 degrees @ 4.0" Thick
Rapid Traverse: 36.0 ipm
Wire Diameters: .004" - .012"
Wire Spool Size: 13.5 lbs
Wire Guide Type: Round Diamond
Automatic Threader System: Waterjet
Threading Wire Size: 0.008" - 0.012
Minimum Start Hole: 0.08"
Dielectric Fluid Feed System: Submerged & Flushing
Dielectric Tank Capacity: 95.1 gal
Dielectric Filter Type: (2) Paper Cartridge
Machine Weight: 3080 lbs
Machine Size: 40.9" x 66.2" x 76.2"
Floor Space Requirement: 86.2" x 99.4"
Approximately 7,000 Cutting Hours - 5195 Total Machining Hours
