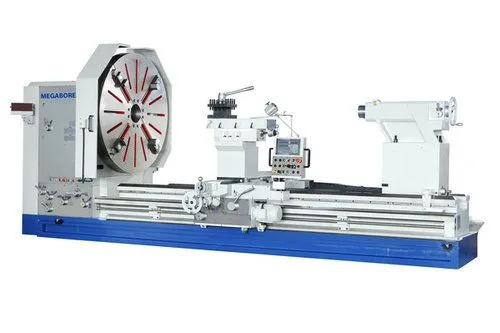

NEW MEGABORE PC-80

One piece bed, floor type casting. 2 shear bed way with extra way supporting All
ways are hardened and ground. Alloy steel spindle with opposed taper Hardened and
around gears, shafts and Electromagnetic spindle brake.

Optional Accessories
Rear chip conveyor
Semi automatic threading and copy system for the oil industry.
* One piece bed, floor type casting.
* 2 shear bed way with extra way supporting the apron.
* All ways are hardened and ground.
* Alloy steel spindle with opposed taper roller bearings.
* Hardened and ground gears, shafts.
* Electromagnetic spindle brake.
* 18-speed geared headstock.
* 6-way rapid traverse and power feed to top slide.
* Totally enclosed universal inch / metric gear box.
* Carriage position device.
* Dual voltage spindle motor, 30 to 75 HP.
* Pressurized one shot lube system for cross slide and carriage.

STANDARD ACCESSORIES
* 1 dead centre, MT #6.
* 2-speed tailstock quill (manual).
* One piece stainless steel leadscrew cover.
* Coolant pump.
* Follow type splash guard.
* Rear side chip and water collect plate.
* Thread chasing dial.
* Water and oil collect plate under apron.
* Work lamp.
Spindle bore options 6 inch up to 32 inches.

SPECIFICATIONS
BED
Width (W/O auxiliary guide)...................................mm (in.) 920 (36.22)
Width (W auxiliary guide)....................................mm (in.) 1090 (42.91)
CARRIAGE
Cross slide travel...........................................mm (in.) 1170 (46.06)
Compound tool post travel.....................................mm (in.) 600 (23.62)
4-way tool post width.........................................mm (in.) 310 (12.20)
THREAD FEED RANGE
Longitudinal feed.........................mm/rev (in.rev ) 0.045~2.55 (0.0018~0.1)
Cross feed................................mm/rev (in.rev) 0.023~1.28 (0.0009~0.05)
Longitudinal rapid feed...............................mm/rev (in.rev) 2000 (78.74)
Cross rapid feed......................................mm/min (in/min) 1270 (50.00)
Metric thread mm.................................................(kinds) 1~56 (60)
Inch thread TPI................................................(kinds) 1/2~28 (60)
Module thread MOD.............................................(kinds) 0.25~14 (60)
Diametral pitch thread DP.......................................(kinds) 2~112 (60)
Pitch of leadscrew.................................................mm (TPI) 12 (2)
TAILSTOCK
Quill diameter.................................................mm (in.) 160 (6.29)
Quill travel...................................................mm (in.) 200 (7.87)
Inner taper of quill.........................................................MT#6
Bearing surface on the bed ways...............................mm (in.) 760 (29.92)
MOTOR
Main spindle motor......KW (HP) 22(30)-STD. 29(40) / 37(50) / 44(60) / 55(75)-OPT.
Coolant pump motor.............................................KW (HP) 0.1 (0.125)
Note:
(1) X and Z axes actual cutting diameter will change when equipped with different
turrets.
(2) Specifications are subject to change without notice for improvement.
