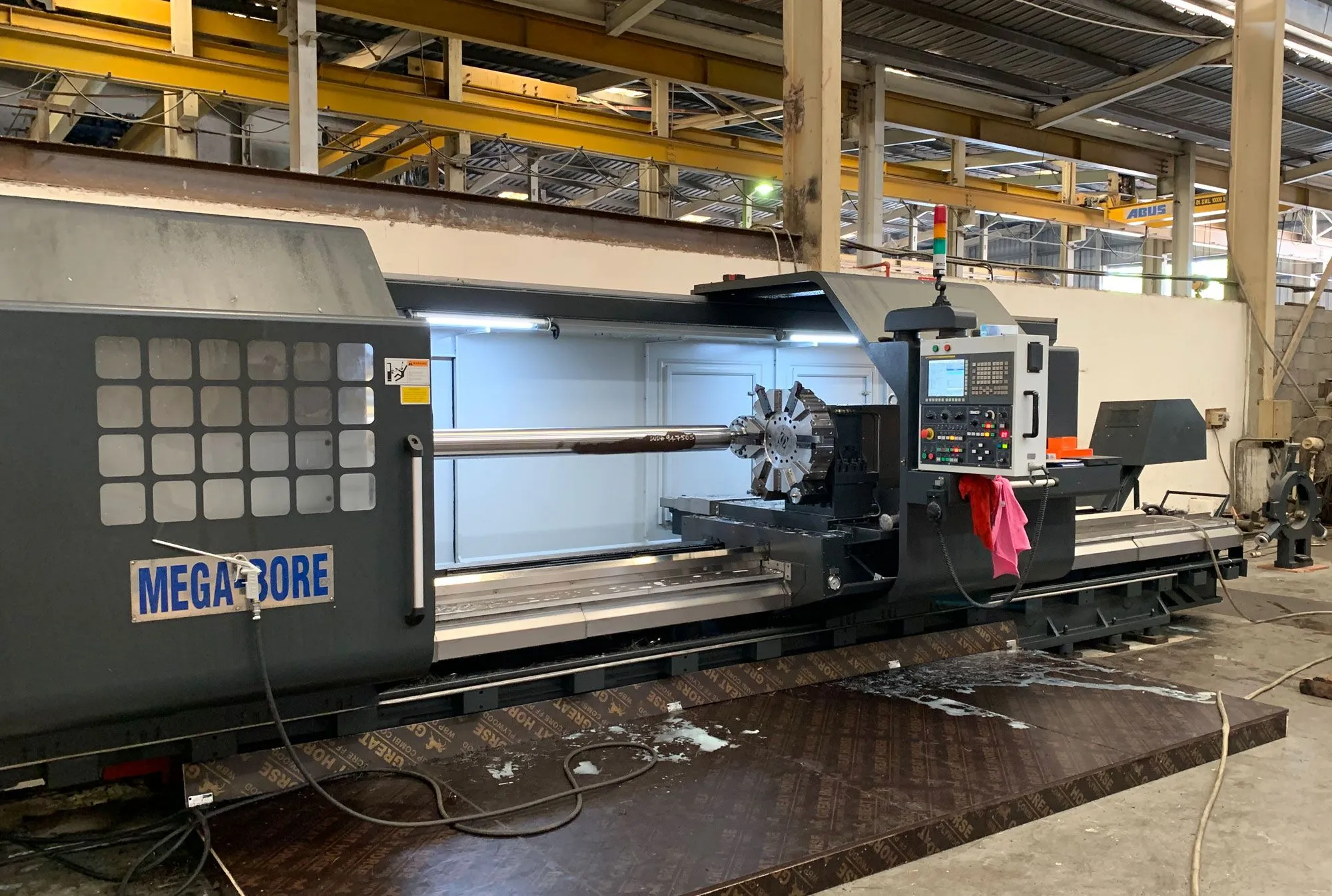

NEW MEGABORE LD-50

The LD series CNC Lathes offer a medium duty Lathe that is versatile and cost effective. The LD series is the most popular among our clients.
Outstanding features.
* One piece bed, floor type casting.
* Alloy steel spindle with opposed taper roller bearings.
* All gears in the headstock are hardened and precisely ground.
* Automatic ranges of spindle speed through pneumatic gear shift.
* Spindle speed ranges are automatically changed by M code.
* Infinitely variable speed are commanded by S code.
* Tool change are commanded by T code.
* Auto lubrication system is equipped for headstock, carriage, and cross-slide.
* Precision tapered roller bearings are equipped on the spindle and the quill.
* The quill is heat treated and precisely ground.
* Internal taper of quill to suit MT#5 dead center or live centre.
* Turcite B anti friction material is applied on cross slide and carriage for reduce friction.
* X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant.

Spindle Bore: 255mm
Spindle Nose: A2-15
Spindle Rpm: 10~500 rpm
Spindle Speed Steps: 4 steps
Swing Over Bed: 1275mm
Swing Over Carriage: 900mm
Cross Slide X Travel: 610mm
Distance between Centre: 6000mm
Or Client specified

Z-Axis Ball Screw Diameter: 80mm
235mm Tailstock Quill with MT#6
Minimum Program Command: 0.001mm
X axis Position Accuracy: 0.015mm
Z axis Position Accuracy: 0.025mm
Repeatability: 0.01mm
Back Edit Function
X-Axis Servo Motor Alpha30
Y-Axis Servo Motor Alpha30 with ABS
Z-Axis Servo Motor Alpha30 with ABS
Main Spindle Motor 40/50HP (Alpha 30)

Live tooling Option

Fanuc 0iTF CNC Control with Manual Guide I Function.
Two Door Type Full Length Splash Guard 1 set
4 jaw independent chuck 32” diameter 2 off
Rear Chuck adaptor 1 off
Headstock Oil Cooler (18,000 BTU) 1 set
Cabinet Refrigerator 1 set
Flush Coolant Water System 1 set
Auto Lubrication System 1 set
1 x Fixed steady rest (50 to 400mm) 1 set
1 x Fixed steady rest (350 to 700mm) 1 set
Programmable Heavy duty tailstock with 235mm Quill 1 set
Swarf Conveyor & bin 1 set
Cross slide mounted Boring bar holder (6” Capacity) 1 off
CF-AXIS
Cf-Axis Position Accuracy +/-12”
Cf-Axis Repeatability 12”
Cf-Axis Servo Motor Fanuc Alpha30 (9.5hp)
Cf-Axis Spindle with Hydraulic Brake Unit
Cf-Axis Heidenhain Circular Scale Feed Back
V12 Baruffaldi TBYA200 Turret with VDI40
Y-Axis Travel +/- 75mm
Y-Axis with Hydraulic Counter Balance System
