Used J.H. Day Stainless Steel Jacketed Mixtruder | 75 Gallon Working Capacity | 30+25 HP Hydraulics

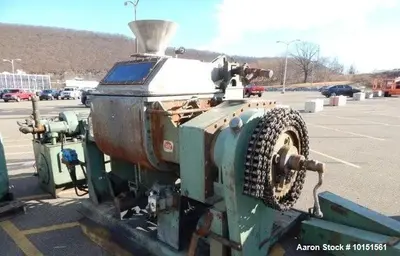

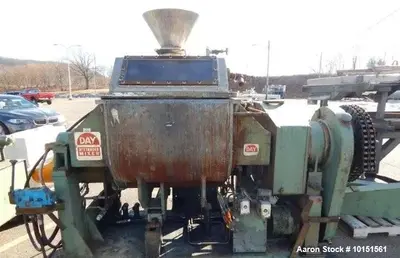

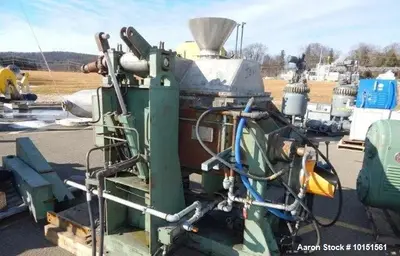

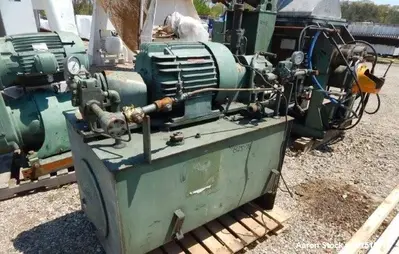

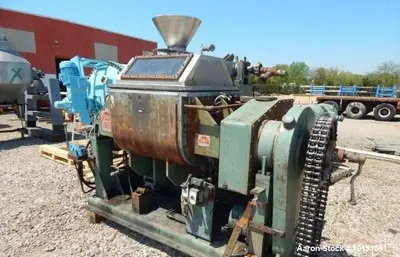

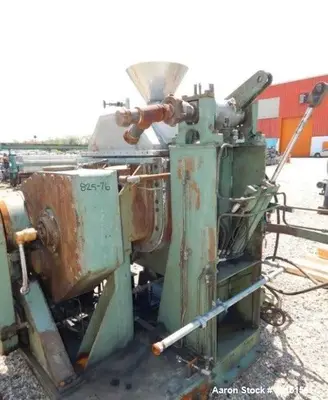

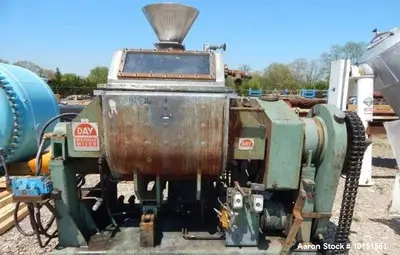

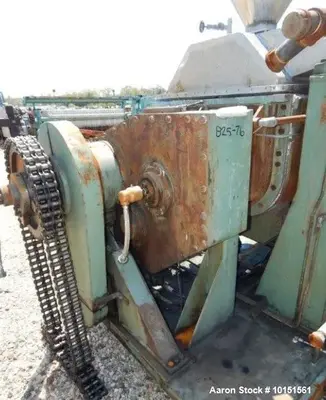

Used J.H. Day Stainless Steel Jacketed Mixtruder | 75 Gallon Working Capacity | 30+25 HP Hydraulics. With dispersion blades and extruder screw discharge. Internal pressure: Atmospheric @ 353F shell is 7/16" thick. Jacket pressure: 125 psi @ 353F jacket is 3/8" thick. Mixer Dimensions: 32" x 32" x 25" high, approximate total capacity is 110 gallons. Extruder screw is 8" diameter driven by a hydraulic motor, and hydraulic tilt discharge are both powered by 30 HP 230/460 volts Vickers Hydraulic pumping system. Mixer Blades driven by a 25 hp US. varidrive motor, 220/440 volt. 31 to 125 RPM to chain and sprocket to give you approximately 15 to 62.5 RPM output speed on the blades. NB #1117, SN 86065. Built 1971.

Used Equipment Facts About This Machine
Manufacturer Information
Brand: J.H. Day
Model: Mixtruder

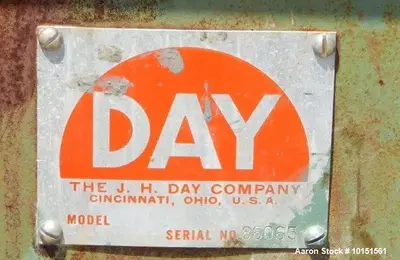

Serial #: 86065

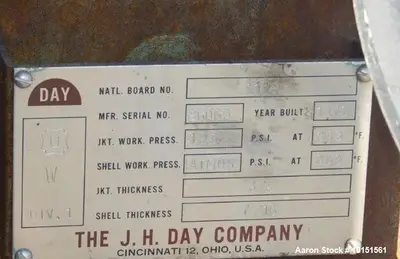

National Board #: 1117
Year Built: 1971
Construction: Stainless Steel
Type: Jacketed Dispersion Mixer with Extruder Screw

Description
This Used J.H. Day Stainless Steel Mixtruder combines high-shear mixing and extrusion in a jacketed pressure-rated vessel for heavy-duty dispersion, kneading, and compounding processes. With an approximate 75-gallon working capacity (110-gallon total), it features dispersion blades, an 8" diameter extruder screw with hydraulic discharge, and full stainless steel construction. The system is equipped with a 30 HP Vickers hydraulic power pack (230/460V) for the extruder and tilt discharge, and a 25 HP US Varidrive motor driving the blades via chain and sprocket, producing an effective blade speed of 15–62.5 RPM.
The jacketed design supports up to 125 psi at 353°F, ideal for thermal control in high-viscosity mixing applications such as adhesives, plastisols, food, or chemical compounding.

Specifications

Working Capacity: Approx. 75 gallons

Total Capacity: Approx. 110 gallons

Internal Pressure Rating: Atmospheric @ 353°F

Shell Thickness: 7/16"

Jacket Pressure Rating: 125 psi @ 353°F

Jacket Thickness: 3/8"

Mixer Dimensions: 32" x 32" x 25" (H)

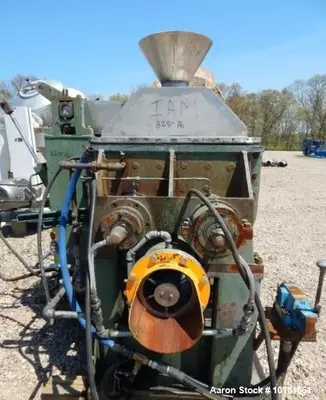

Extruder Screw: 8" diameter, hydraulic drive

Discharge Type: Hydraulic tilt and screw extrusion

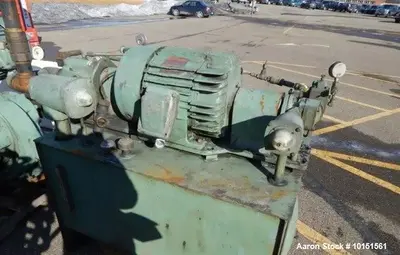

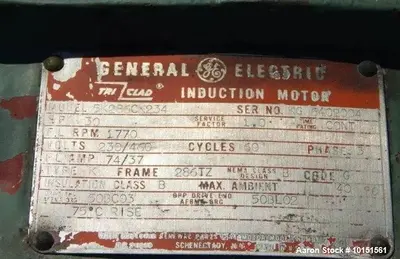

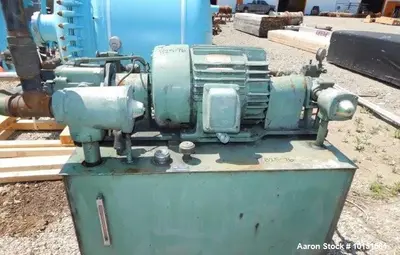

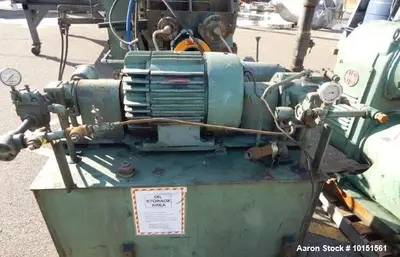

Extruder Drive: 30 HP Vickers hydraulic system (230/460V)

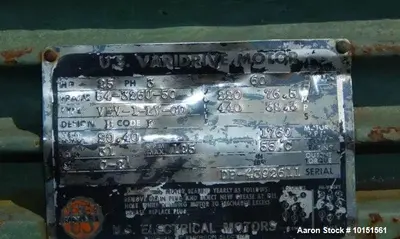

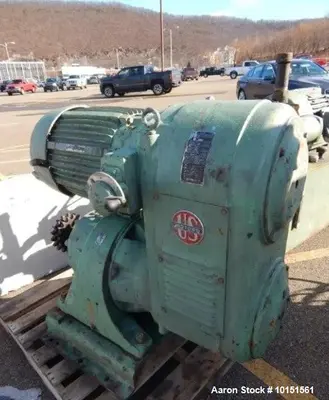

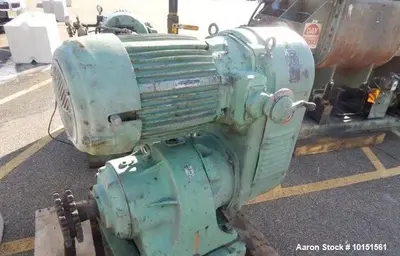

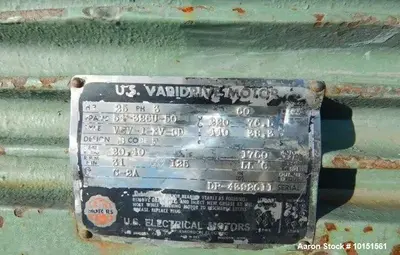

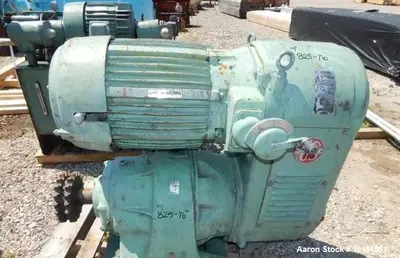

Mixer Drive: 25 HP US Varidrive motor (220/440V)

Blade Speed: 31–125 RPM input; 15–62.5 RPM output

Construction: Stainless steel shell and components

National Board #: 1117

Serial #: 86065

What Might This Be Used For?

Rubber, silicone, or elastomer mixing and extrusion

Plastic compound dispersion

Adhesive blending and extrusion

High-viscosity slurry or paste mixing

Food product formulation (e.g., dough, fillings, starch pastes)

Battery electrode slurry mixing

Industrial sealant and caulk production

Ceramic or pigment compounding

Chemical paste or putty processing

Resins, inks, or plastisol preparation
