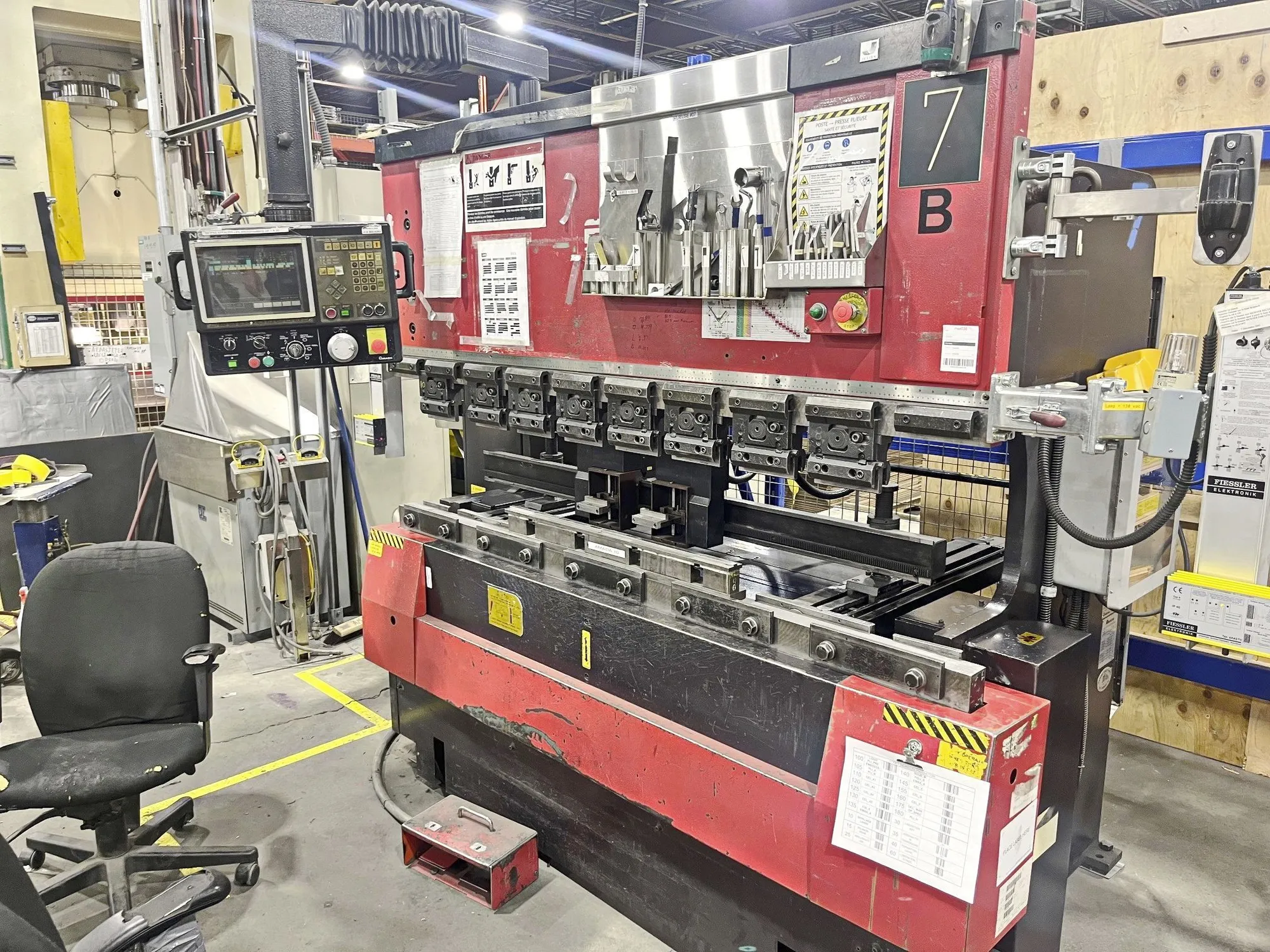

1998 Amada FBD-5020 FS CNC Press Brake, 50 Tons, Multi-Axis CNC Back Gauge, Programmable Ram Tilt, Crowning Control, Hydraulic Shimming Of Lower Beam, AC Electric Servo Drives
| Tonnage | 50 T | 45.359 t |
| Type | HYD | HYD |
| OA Length | 78.7" | 2 m |
| Between Uprights | 66.9" | 1,699.3 mm |
| Throat Depth | 15.75" | 400.05 mm |
| Stroke | 5.91 mm | 0.2327" |
| # Axis | 8 | 8 |
| Open Height | 16.54" | 420.12 mm |
| Fast Approach | 134 in/min. | 3.4 m/min. |
| Slow Bend | 17 in/min. | 0.4 m/min. |
| Fast Return | 177 in/min. | 4.5 m/min. |
| Made In | Japan | Japan |
| Control | CNC (Amada NC9-FS) | CNC (Amada NC9-FS) |
| Dimensions | 117.3" X 49.2" X 91.3" | 117.3" X 49.2" X 91.3" |
| Weight | 8,818 lb | 8,818 lb |
Multi-axis CNC back gauge
Programmable ram tilt & crowning control
CNC hydraulic shimming of lower beam
Off center load protection
AC electric servo drives
