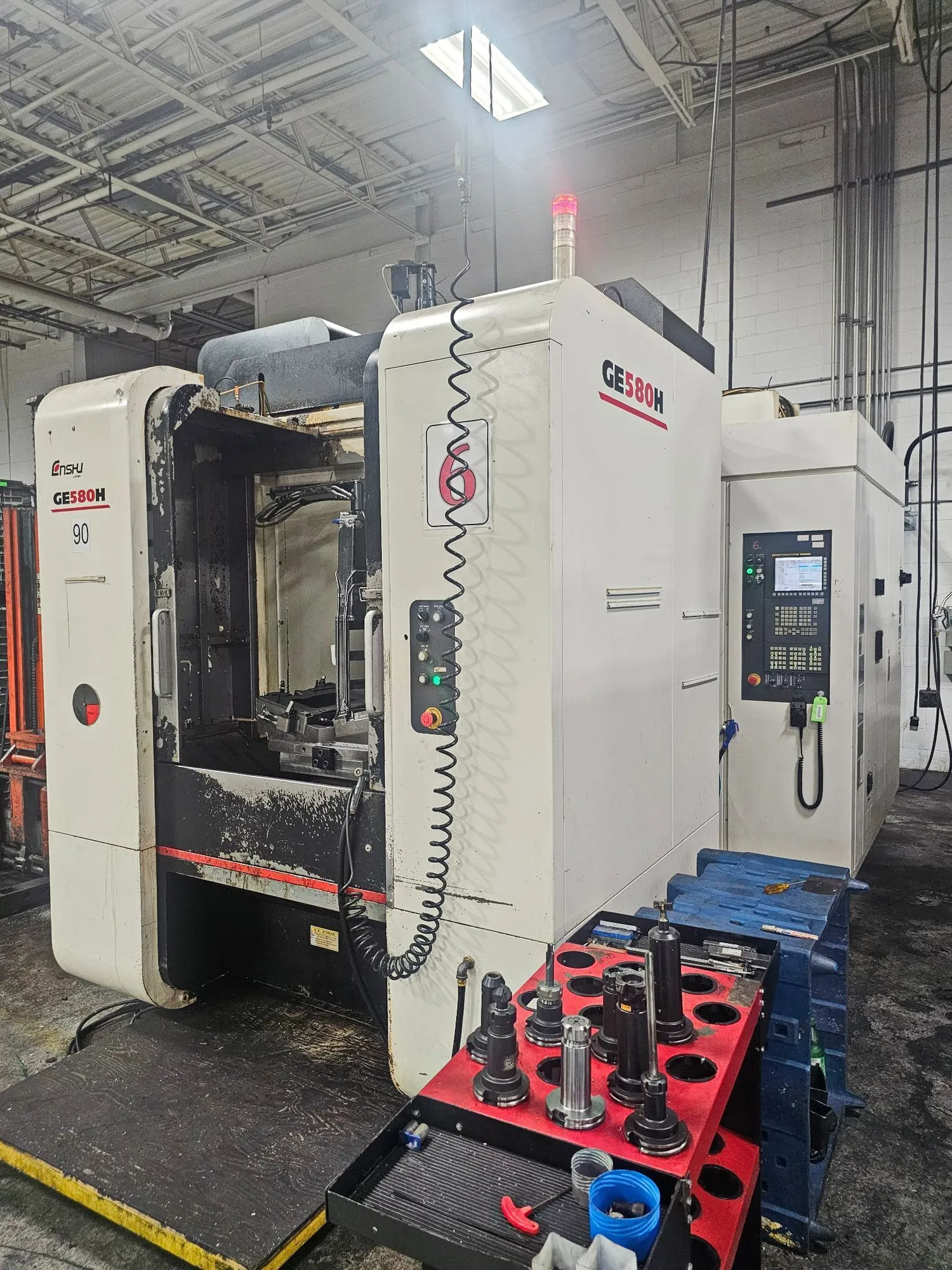

2016 Enshu GE580H Horizontal CNC Machining Center, Full 4th Axis, TSC, Rotary Automatic Pallet Changer, Spindle Chiller, BIG-PLUS CAT-5O Spindle, Chip Conveyor
| X-Axis | 31.5" | 800.1 mm |
| Y-Axis | 31.5" | 800.1 mm |
| Z-Axis | 32.7" | 830.58 mm |
| Power | 54 hp | 40.3 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT-50 | CAT-50 |
| Pallet-W | 19.68" | 499.87 mm |
| Pallet-L | 19.68" | 499.87 mm |
| Max Pallet Load | 1,763 lb | 799.7 kg |
| Spindle To Pallet Center | 37.4" | 949.96 mm |
| # Axis | 4 | 4 |
| Rapid Traverse (X/Y/Z) | 2,362 in/min. | 2,362 in/min. |
| Made In | Japan | Japan |
| Control | CNC (FANUC 31IMB) | CNC (FANUC 31IMB) |
| Dimensions | 232" X 129" X 123" | 232" X 129" X 123" |
| Weight | 36,200 lb | 36,200 lb |
Full 4th axis
High-pressure through spindle coolant
Rotary automatic pallet changer
Big-Plus spindle (CAT-50)
Hydraulic clamping
Air sensor
Part presence
BK micro tool breakage
Fanuc axis servo drives
Ceramic spindle bearings
Chip conveyor
Spindle chiller
