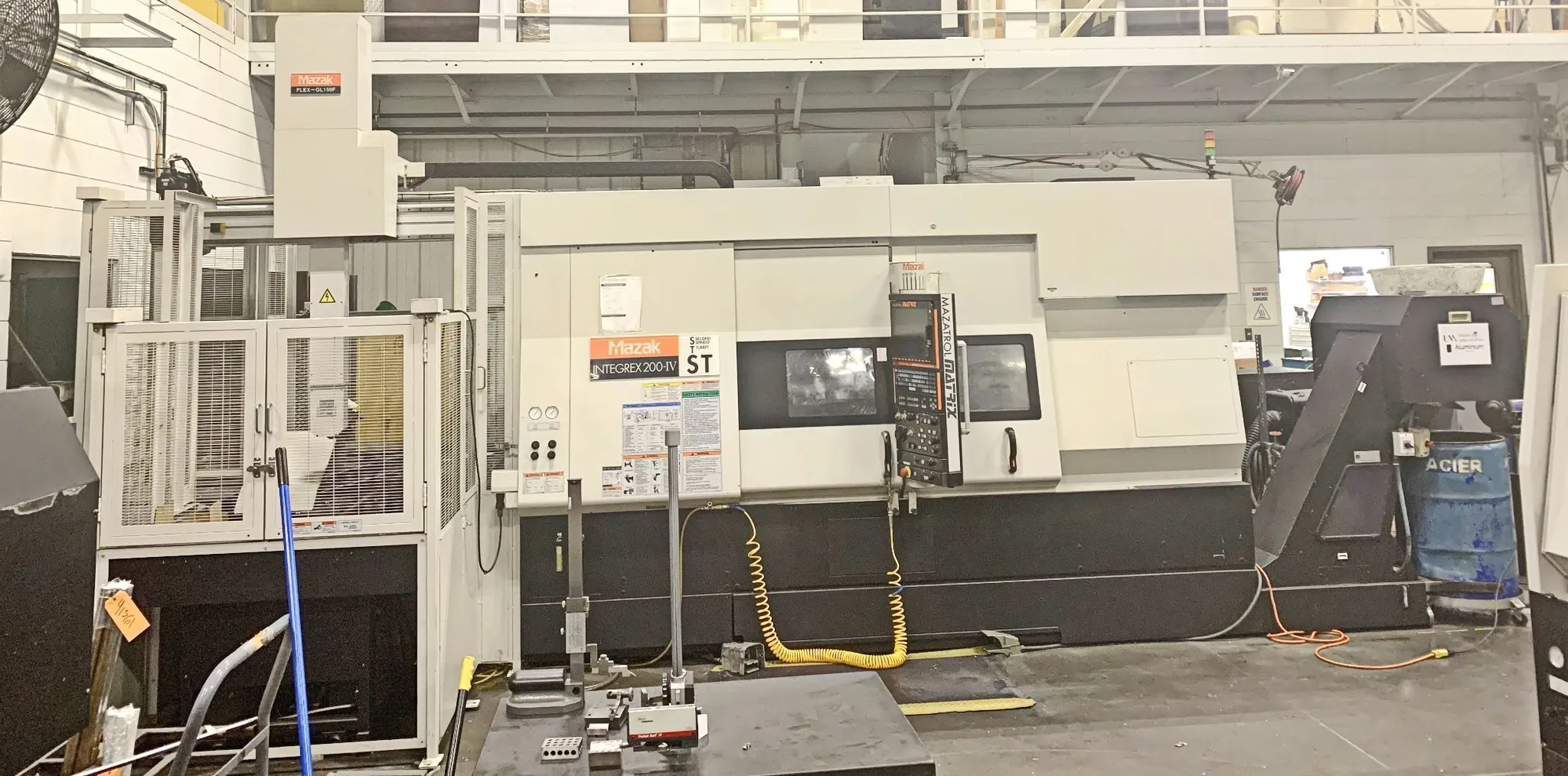

2006 Mazak Integrex 200-IV ST Multi-Axis CNC Lathe, Y-Axis, B-Axis, C-Axis, Milling Spindle, Lower Turret, Sub-Spindle, TSC, Gantry Robot, Automatic Tool Eye, Chip Conveyor
| Max Swing | 26" | 660.4 mm |
| Max Dia (Upper turret) | 26" | 660.4 mm |
| Max Dia (Lower turret) | 10.24" | 260.1 mm |
| Machining Length | 40" | 1,016 mm |
| Chuck Size (Main) | 8" | 203.2 mm |
| Chuck Size (Sub) | 8" | 203.2 mm |
| Bar Capacity (Main) | 2" | 50.8 mm |
| Bar Capacity (Sub) | 2" | 50.8 mm |
| Spindle Bore (Main) | 2.99" | 75.946 mm |
| Spindle Bore (Sub) | 2.99" | 75.946 mm |
| Power (Main) | 30 hp | 22.4 kW |
| Power (Sub) | 25 hp | 18.6 kW |
| Power (Milling Tool) | 25 hp | 18.6 kW |
| Max RPM (Main) | 5,000 RPM | 5,000 RPM |
| Max RPM (Sub) | 5,000 RPM | 5,000 RPM |
| RPM (Milling Spindle) | 12,000 RPM | 12,000 RPM |
| X-Axis Travel | 22.83" | 579.88 mm |
| Y-Axis Travel | ±3.15" | ±3.15" |
| B-Axis Rotation | 225° | 225° |
| Z-Axis Travel | 41.14" | 1,045 mm |
| W-Axis Travel (2nd Headstock) | 41.34" | 41.34" |
| X2-Axis Travel (Lower) | 5.91" | 5.91" |
| Z2-Axis Travel (Lower) | 38.98" | 38.98" |
| Spindle Nose (Main) | A2-6 | A2-6 |
| Spindle Nose (Sub) | A2-6 | A2-6 |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Rapid Traverse (X1/X2) | 1,496 in/min. | 1,496 in/min. |
| Rapid Traverse (Z1/Z2) | 1,496 in/min. | 1,496 in/min. |
| Rapid Traverse (Y) | 1,024 in/min. | 26 m/min. |
| Turret Capacity (Lower) | 9 | 9 |
| ATC Positions | 20 | 20 |
| Made In | Japan | Japan |
| Control | CNC (MAZATROL MATRIX) | CNC (MAZATROL MATRIX) |
| Dimensions | 150.39" X 93.03" X 102.24" | 150.39" X 93.03" X 102.24" |
| Weight | 20,240 lb | 20,240 lb |
*Very low hour unit
GL-150F gantry load/unload
Milling spindle Capto C6 (12,000 rpm)
Through milling spindle coolant (1000 psi)
Sub-spindle
Lower turret (9-position)
Y-axis
B-axis
C-axis
Spindle synchronization (main/sub)
Automatic tool eye
Chuck air blast (sub)
Chip conveyor
