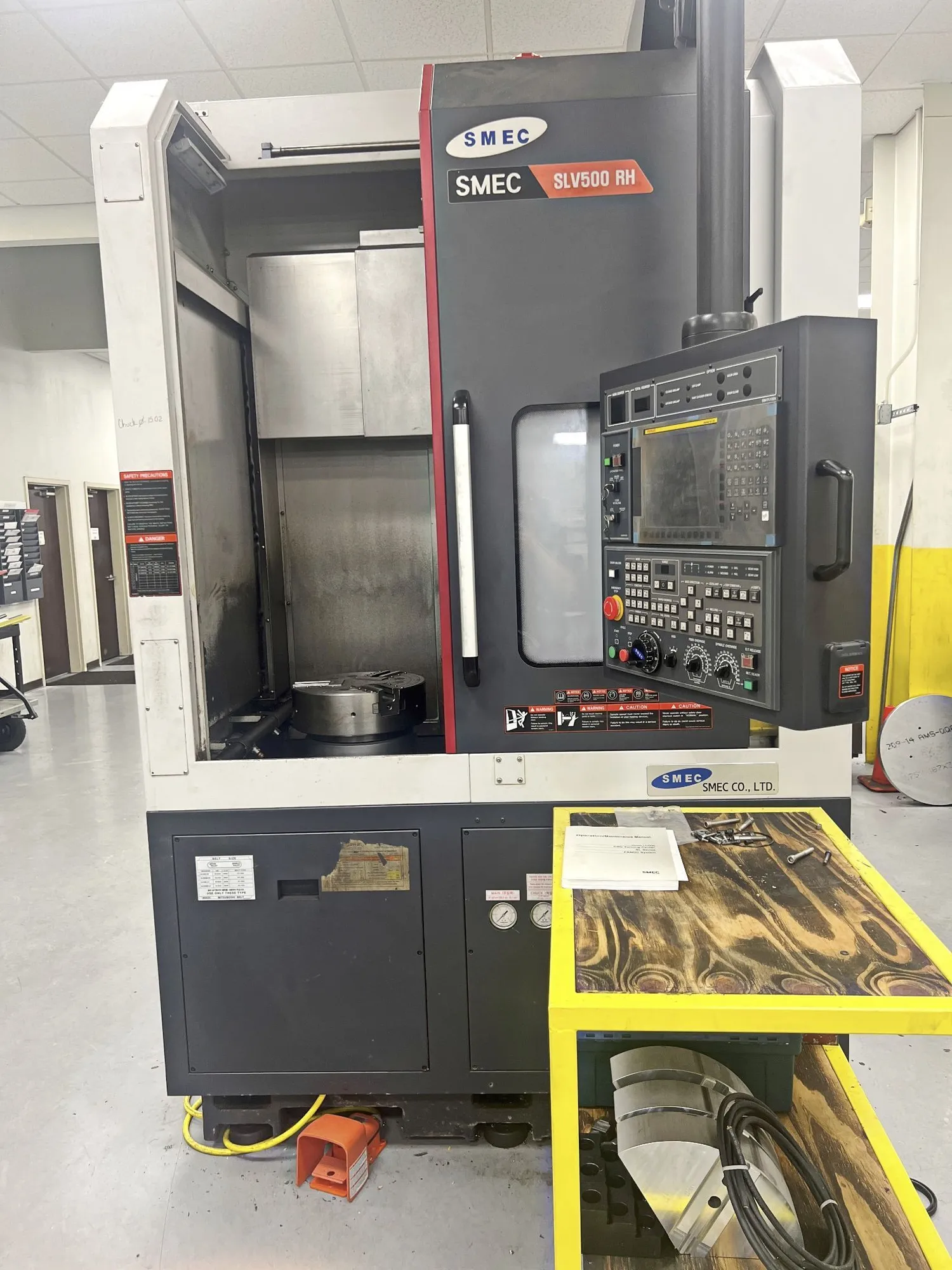

USED 2020 SMEC SLV500 RH
Overview
Description
2020 SMEC SLV500 RH CNC Vertical Turning Lathe, 15" 3-Jaw Chuck, Chip Conveyor, Shower Coolant Unit, Spindle Orientation, Chuck Clamp Confirmation
Specifications
| Chuck Size | 15" | 381 mm |
|---|---|---|
| Swing | 27.56" | 700.02 mm |
| Max Turning Diameter | 19.68" | 499.87 mm |
| Max Turning Length | 19.48" | 494.79 mm |
| X-Axis | 12.48" | 316.99 mm |
| Z-Axis | 19.48" | 494.79 mm |
| Turret Capacity | 12 (BMT65) | 12 (BMT65) |
| Power | 30 hp | 22.4 kW |
| RPM | 2,900 RPM | 2,900 RPM |
| Spindle Nose | A2-8 | A2-8 |
| Boring Bar Shank Size | 2" | 2" |
| Shank Size for Square Tool | 1" X 1" | 1" X 1" |
| Rapid Traverse (X/Z) | 787 in/min. | 787 in/min. |
| Made In | Korea | Korea |
| Control | CNC (Fanuc Series Oi-TF) | CNC (Fanuc Series Oi-TF) |
| Dimensions | 65.7″ X 140″ X 117.56″ | 65.7″ X 140″ X 117.56″ |
| Weight | 15,873 lb | 15,873 lb |
Equipped With
15" 3-jaw chuck
CR Machinery chip conveyor
Shower coolant unit
Spindle orientation
Chuck clamp confirmation
Chuck clamp foot switch
Chuck pressure switch
