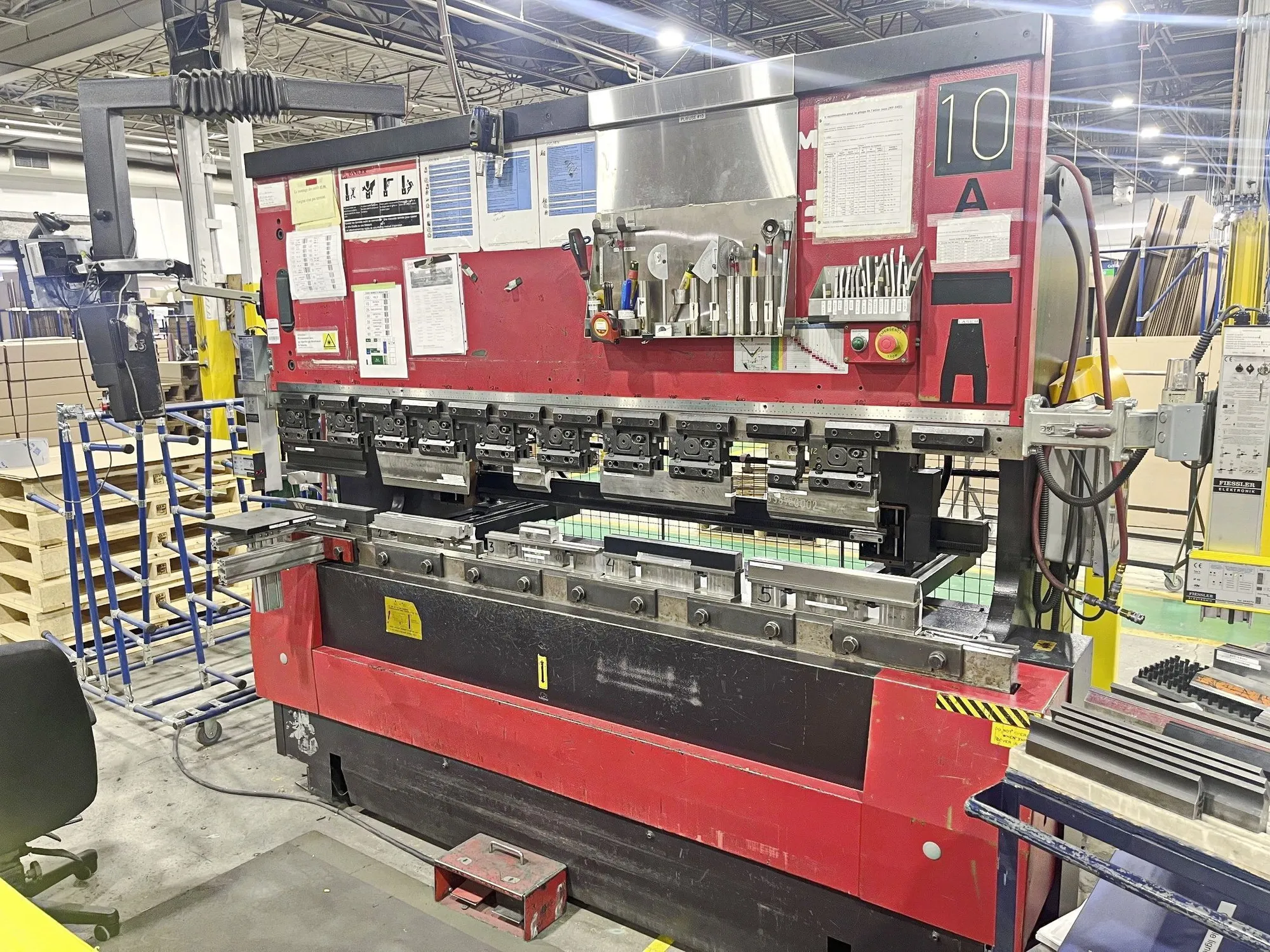

1999 Amada FBD-8025 FS CNC Press Brake, 88 Ton, Multi-Axis CNC Back Gauge, Programmable Ram Tilt, Crowning Control, Hydraulic Shimming Of Lower Beam, AC Electric Servo Drives
| Tonnage | 80 T | 72.575 t |
| Type | HYD | HYD |
| OA Length | 98.4" | 2.5 m |
| Between Uprights | 86.6" | 2,199.6 mm |
| Throat Depth | 15.75" | 400.05 mm |
| Stroke | 5.91" | 150.11 mm |
| # Axis | 8 | 8 |
| Motor Power | 7.5 hp | 5.6 kW |
| Open Height | 16.54" | 420.12 mm |
| Fast Approach | 179 in/min. | 4.5 m/min. |
| Slow Bend | 16.5 in/min. | 0.4 m/min. |
| Fast Return | 181 in/min. | 4.6 m/min. |
| Made In | Japan | Japan |
| Control | CNC (Amada NC9-FS) | CNC (Amada NC9-FS) |
| Dimensions | 142.7" X 50.6" X 97" | 142.7" X 50.6" X 97" |
| Weight | 13,669 lb | 13,669 lb |
Multi-axis CNC back gauge
Programmable ram tilt & crowning control
CNC hydraulic shimming of lower beam
Off center load protection
AC electric servo drives
