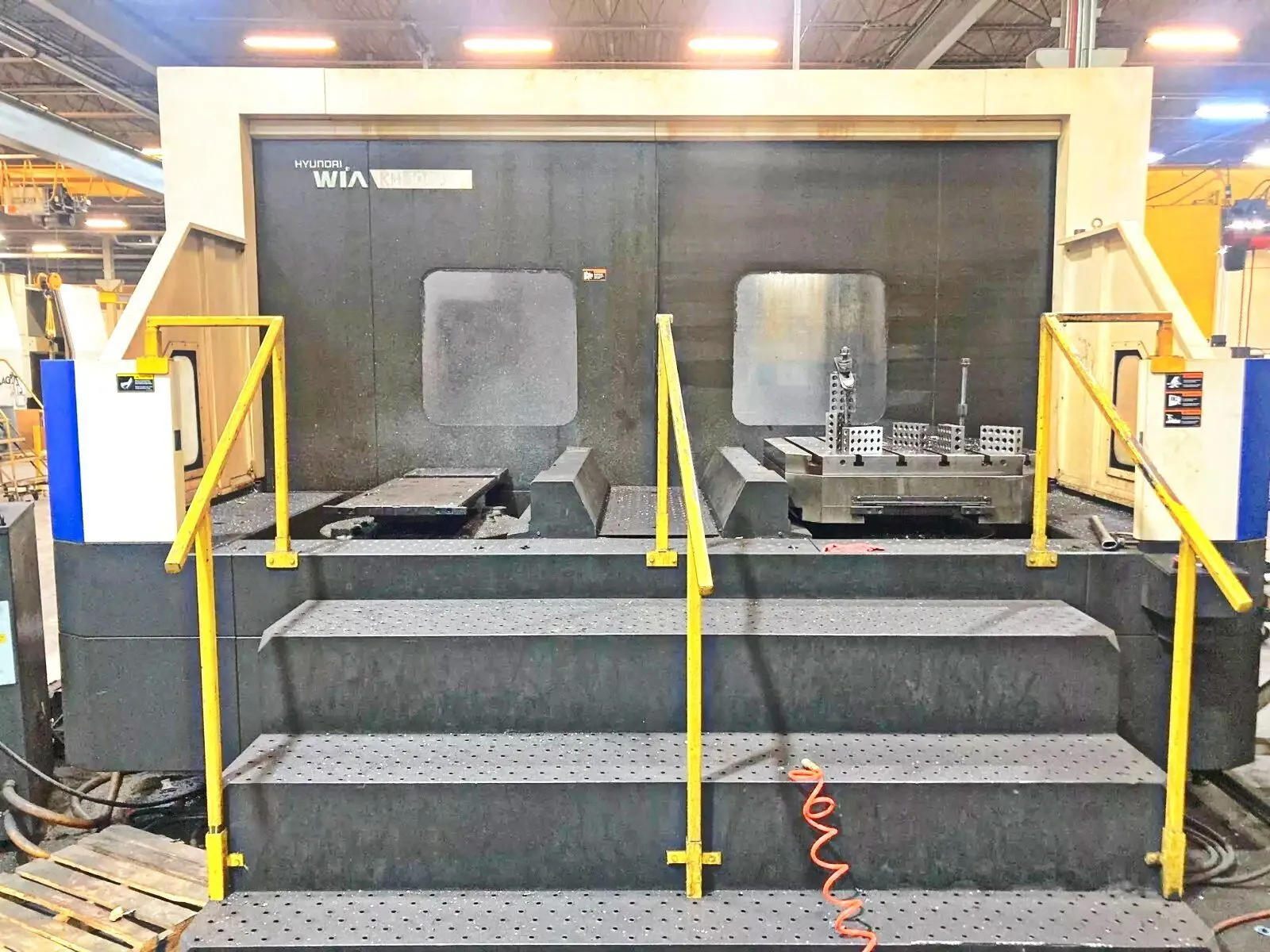

2011 Hyundai Wia KH1000 Horizontal CNC Machining Center, TSC, Big Plus CAT-50, Geared Spindle, Shuttle-Type Automatic Pallet Changer, 90 Pocket ATC, Chip Conveyor
| X-Axis | 82.67" | 2,099.8 mm |
| Y-Axis | 53.14" | 1,349.8 mm |
| Z-Axis | 55.11" | 1,399.8 mm |
| Power | 34 hp | 25.4 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 90 | 90 |
| Taper | Big Plus #50 | Big Plus #50 |
| Pallet-W | 39.4" | 1,000.8 mm |
| Pallet-L | 39.4" | 1,000.8 mm |
| Max Workpiece Diameter | 74.8" | 1,899.9 mm |
| Max Workpiece Height | 59" | 1,498.6 mm |
| Max Table Load | 6,613 lb | 6,613 lb |
| Spindle To Pallet Center | 66.9" | 1,699.3 mm |
| # Axis | 3 | 3 |
| Rapid Traverse (X/Y/Z) | 787 in/min. | 787 in/min. |
| Made In | Korea | Korea |
| Control | CNC (FANUC 31I - MODEL A) | CNC (FANUC 31I - MODEL A) |
| Dimensions | 303.3" X 188.9" X 157" | 303.3" X 188.9" X 157" |
| Weight | 66,139 lb | 66,139 lb |
Through spindle coolant (1000 psi)
Big plus 2-step geared spindle (cat-50)
1° table indexing
90-pocket atc
Chip conveyor
Spindle oil cooling system
Shuttle-type automatic pallet changer (2-pallets)
