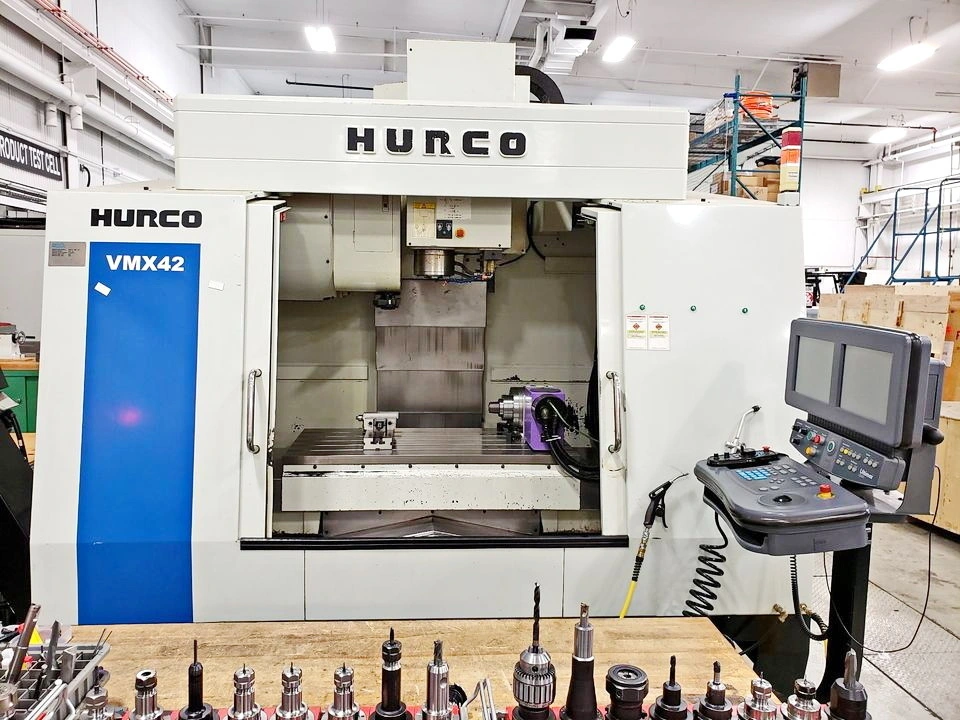

2006 Hurco VMX42 Vertical CNC Machining Center, 4th Axis Rotary Table, Tailstock, Chip Conveyor, Rigid Tapping
| X-Axis | 42" | 1,066.8 mm |
| Y-Axis | 24" | 609.6 mm |
| Z-Axis | 24" | 609.6 mm |
| Power | 24 hp | 17.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 24" | 609.6 mm |
| Table-L | 50" | 1,270 mm |
| # Axis | 3 | 3 |
| Max Table Load | 3,000 lb | 1,360.8 kg |
| Rapids (X/Y/Z) | 1,181 / 1,181 / 787 in/min. | 1,181 / 1,181 / 787 in/min. |
| Control | CNC (Hurco UltiMax) | CNC (Hurco UltiMax) |
| Dimensions | 111" X 86" X 109" | 111" X 86" X 109" |
| Weight | 16,640 lb | 16,640 lb |
Kitagawa 4th axis rotary table
Tailstock
Chip conveyor
Rigid tapping
