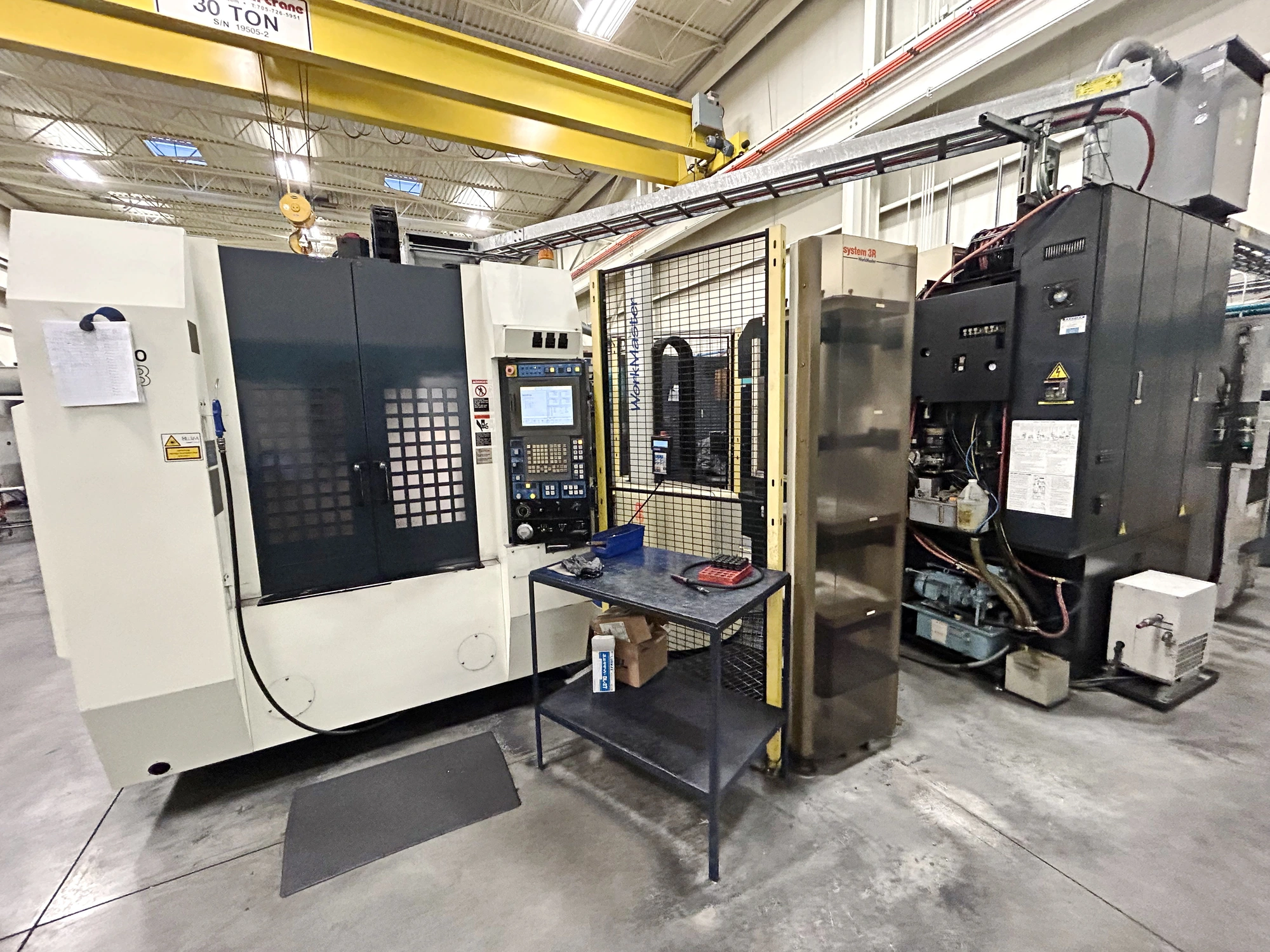

2006 Makino E33 Vertical CNC Machining Center, 40000 RPM Spindle, AC Digital Servo Motors, Dust Collector, HSK-32
| X-Axis | 25.6" | 650.24 mm |
| Y-Axis | 17.7" | 449.58 mm |
| Z-Axis | 17.7" | 449.58 mm |
| Power | 18.5 hp | 13.8 kW |
| RPM | 40,000 RPM | 40,000 RPM |
| # ATC | 30 | 30 |
| Taper | HSK-32 | HSK-32 |
| Table-W | 19.7" | 500.38 mm |
| Table-L | 33.5" | 850.9 mm |
| # Axis | 3 | 3 |
| Max Table Load | 1,100 lb | 499 kg |
| Distance Spindle Nose to Table | 23.6" | 599.44 mm |
| Rapids (X/Y/Z) | 1,575 in/min. | 1,575 in/min. |
| Control | CNC (Makino Professional 5) | CNC (Makino Professional 5) |
| Dimensions | 186.1" X 85" X 119.6" | 186.1" X 85" X 119.6" |
| Weight | 16,090 lb | 16,090 lb |
New spindle May 2012
40,000 rpm spindle
AC digital servo motors
Dust collector
HSK-32
