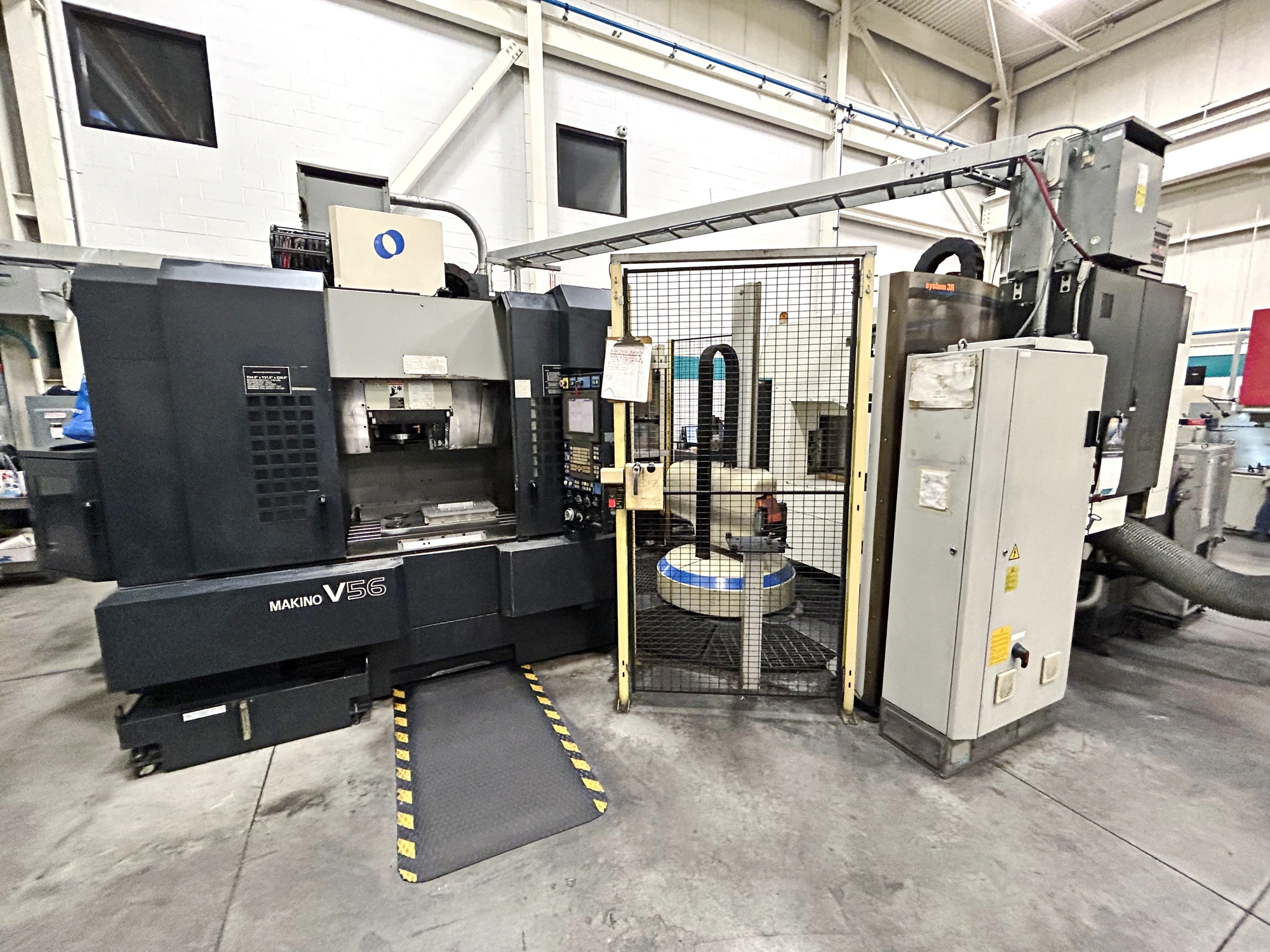

2006 Makino V56 Vertical CNC Machining Center, 20000 RPM Spindle, Tool Measurement System, AC Digital Servo Motors
| X-Axis | 35.4" | 899.16 mm |
| Y-Axis | 21.7" | 551.18 mm |
| Z-Axis | 17.7" | 449.58 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 25 | 25 |
| Taper | HSK-63 | HSK-63 |
| Table-W | 41.3" | 1,049 mm |
| Table-L | 21.6" | 548.64 mm |
| # Axis | 3 | 3 |
| Max Table Load | 1,760 lb | 798.3 kg |
| Control | CNC (Fanuc 18i) | CNC (Fanuc 18i) |
| Dimensions | 114.2" X 96.5" X 108.3" | 114.2" X 96.5" X 108.3" |
| Weight | 22,700 lb | 22,700 lb |
New spindle Jan 2020
20000 rpm spindle
Tool measurement system
AC digital servo motors
