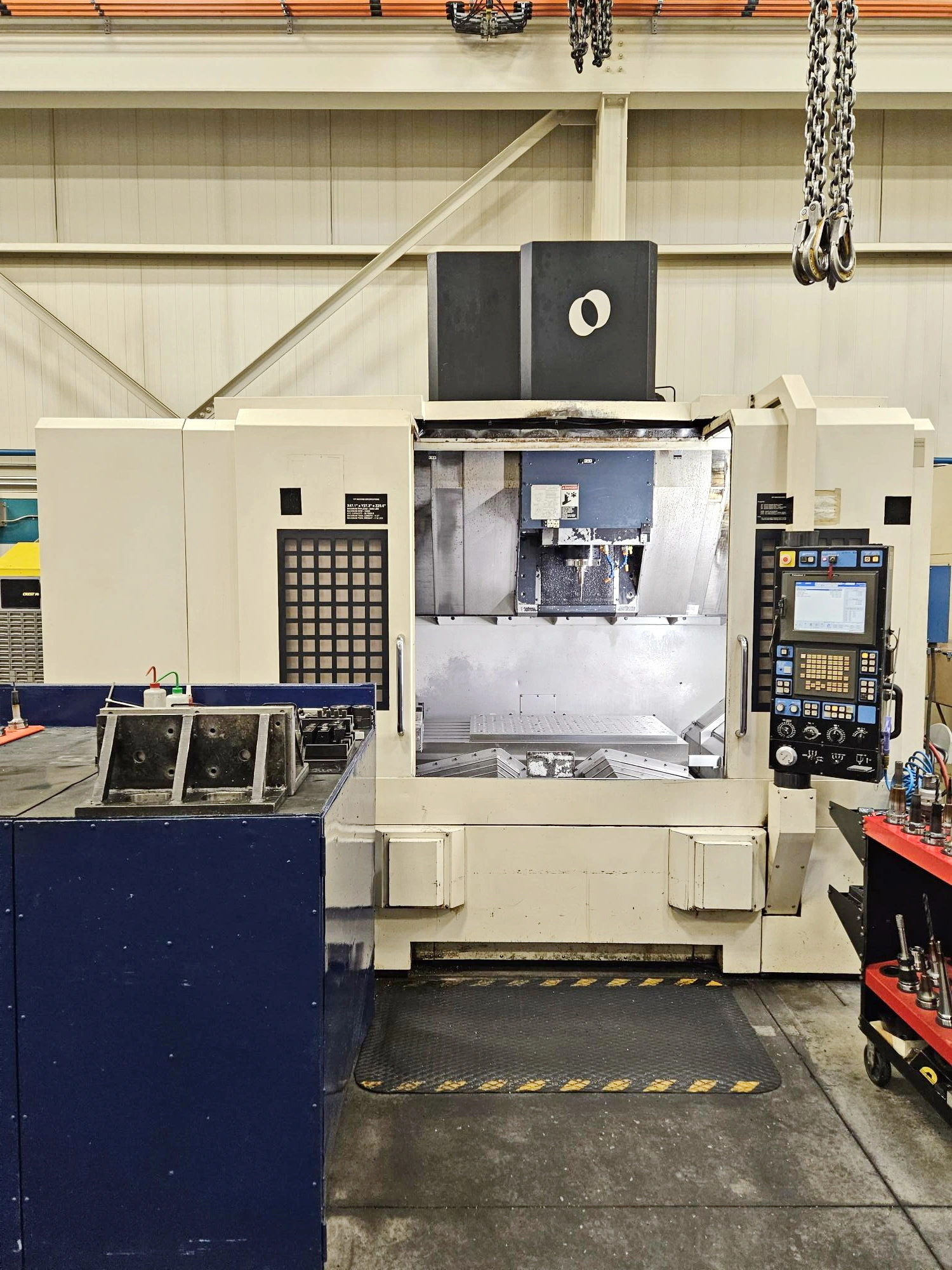

2004 Makino V77 Vertical CNC Machining Center, 20000 RPM Spindle, Laser Tool Measurement System, HSK-63, AC Digital Servo Motors
| X-Axis | 47.2" | 1,198.9 mm |
| Y-Axis | 27.6" | 701.04 mm |
| Z-Axis | 25.6" | 650.24 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 30 | 30 |
| Taper | HSK-63 | HSK-63 |
| Table-W | 27.6" | 701.04 mm |
| Table-L | 55.1" | 1,399.5 mm |
| # Axis | 3 | 3 |
| Max Table Load | 5,500 lb | 2,494.8 kg |
| Distance Spindle Nose to Table | 35.4" | 899.16 mm |
| Rapids (X/Y/Z) | 787 in/min. | 787 in/min. |
| Control | CNC (Makino Professional 5) | CNC (Makino Professional 5) |
| Dimensions | 145.6" X 118.1" X 130" | 145.6" X 118.1" X 130" |
| Weight | 35,200 lb | 35,200 lb |
New spindle Mar 2014
20,000 rpm spindle
Laser tool measurement system
HSK-63
AC digital servo motors
Side access door for automation
