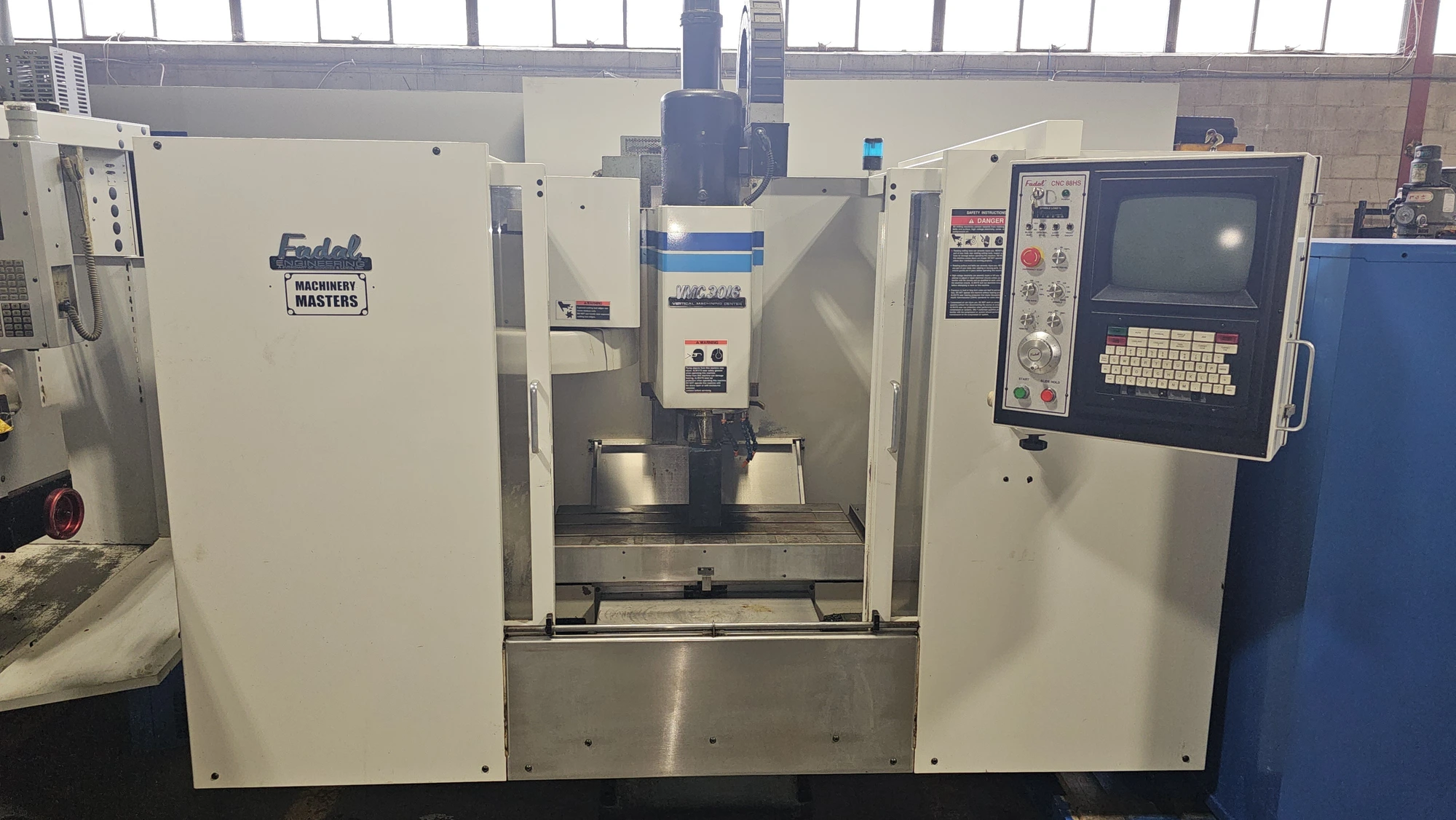

1996 Fadal VMC 3016 High-Torque Vertical CNC Machining Center, Coolant Tank W/ Pump, Manuals Included
| X-Axis | 30" | 762 mm |
| Y-Axis | 16" | 406.4 mm |
| Z-Axis | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 21 | 21 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 16" | 406.4 mm |
| Table-L | 39" | 990.6 mm |
| # Axis | 3 | 3 |
| Max Table Load | 2,736 lb | 1,241 kg |
| Distance Spindle Nose to Table | 24" | 609.6 mm |
| Made In | United States | United States |
| Control | CNC (Fadal 88HS) | CNC (Fadal 88HS) |
| Dimensions | 100" X 92" X 98" | 100" X 92" X 98" |
| Weight | 8,000 lb | 8,000 lb |
High-torque spindle drive
Coolant tank w/ pump
Manuals included
