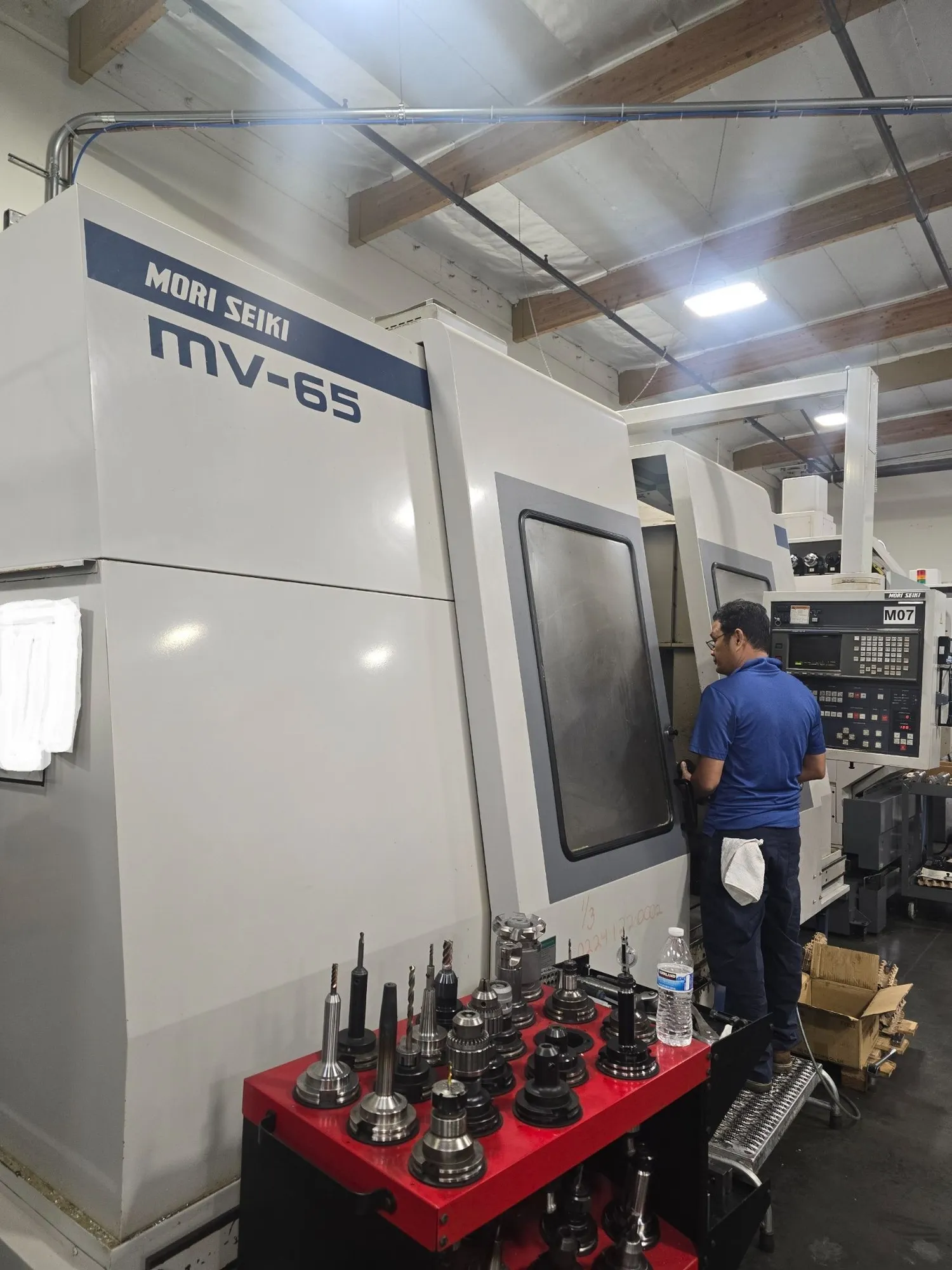

USED 1998 MORI SEIKI MV-65B/50 CNC VMC
Overview
Description
1998 Mori Seiki MV-65B/50 Vertical Machining Center with Fanuc CNC Control, 4,000 RPM, CAT-50 Spindle, and Chip Conveyor.
Specifications
| X | 60" | 1,524 mm |
|---|---|---|
| Y | 25" | 635 mm |
| Z | 25" | 635 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | 50 | 50 |
| Table-W | 27" | 685.8 mm |
| Table-L | 60" | 1,524 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc 16) | CNC (Fanuc 16) |
| Weight | 32,800 LBS | 32,800 LBS |
Working Surface.........................66.9" X 25.6"
Table Load Capacity.....................4400 LBS
X-Axis Travel...........................60"
Y-Axis Travel...........................25.6"
Z-Axis Travel...........................25"
Spindle Nose To Table Top...............7.9" - 33.5"
Main Motor..............................20 HP
Spindle Taper...........................CAT-50
Spindle Speeds..........................4000 RPM
Cutting Feed Rates......................393 IPM
Rapid Traverse Rate.....................472,472,590 IPM
Number Of Tools.........................40 ATC
Maximum Tool Weight.....................44 LBS
Maximum Tool Length.....................17.7"
Machine Weight..........................32,800 LBS
Equipped With
Fanuc 16 Control
4,000 RPM, CAT-50 Spindle
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
