USED 2002 CHEVALIER FCL-1840F
USD $12,500.00
Overview
Description

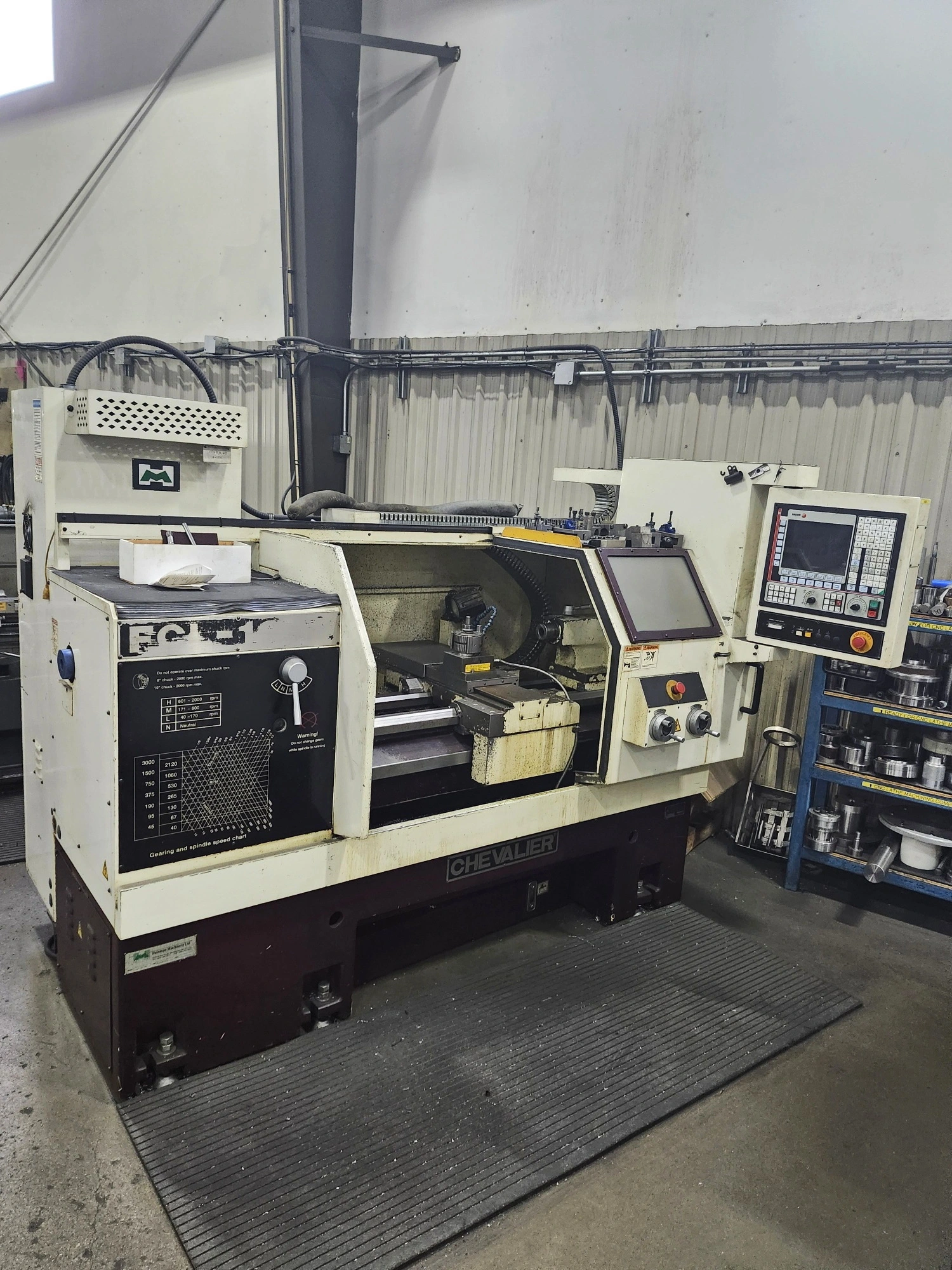

2002 Chevalier FCL-1840F CNC Teach Lathe, Tailstock, Coolant System, 4-Station Toolpost, Automatic Lubrication
Specifications
| Swing | 18.1" | 459.74 mm |
|---|---|---|
| Swing Over Cross Slide | 9" | 228.6 mm |
| Max Turning Dia | 18" | 457.2 mm |
| Center Distance | 40" | 1,016 mm |
| Center Height | 9" | 228.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 1.75" | 44.45 mm |
| Spindle Bore | 2.25" | 5.7 cm |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| X-Axis Travel | 10" | 254 mm |
| Z-Axis Travel | 39" | 990.6 mm |
| Tailstock | Yes | Yes |
| Quill Dia | 2.5" | 63.5 mm |
| Tailstock Travel | 6" | 152.4 mm |
| Tailstock Taper | MT4 | MT4 |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Rapid Traverse (X/Z) | 200 / 400 in/min. | 200 / 400 in/min. |
| Made In | Taiwan | Taiwan |
| Control | CNC (Fagor) | CNC (Fagor) |
| Dimensions | 86" X 53" X 72" | 86" X 53" X 72" |
| Weight | 5,000 lb | 5,000 lb |
Equipped With
Tailstock
Automatic lubrication
Coolant system
4-station toolpost
Top-slide travel (6")
RS-232 port
