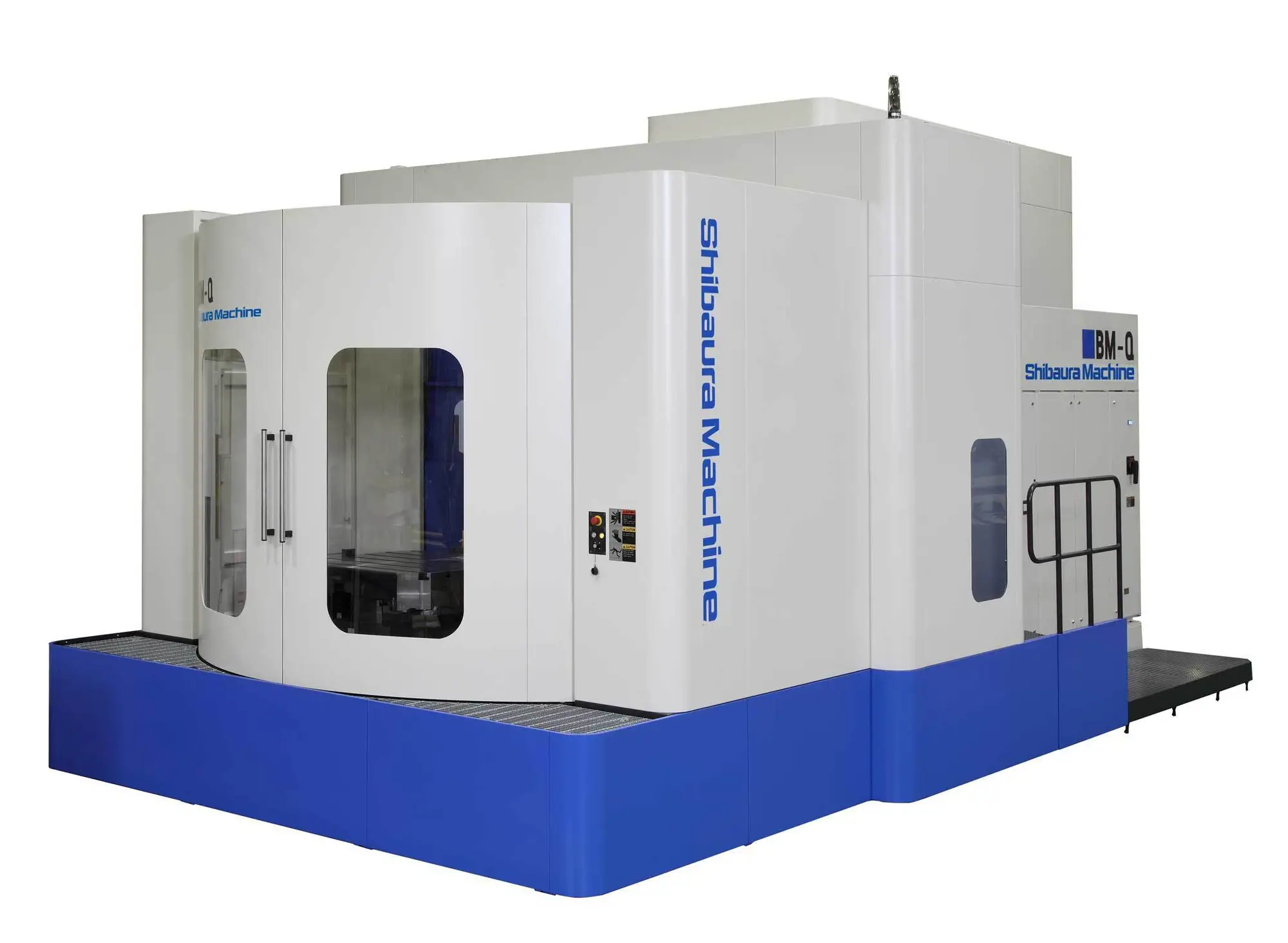

Shibaura Machine BM-1000Q Horizontal CNC Machining Center, Full Contouring B-axis Rotary Table, BIG-PLUS Dual-Contact Spindle, W-Axis, Dual-Pallet Changer, Oil Cooler
| X-Axis | 70.9" | 1,800.9 mm |
| Y-Axis | 63" | 1,600.2 mm |
| Z-Axis | 63" | 1,600.2 mm |
| Power | 40.2 hp | 30 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 60 | 60 |
| Taper | 7/24 Taper # 50 | 7/24 Taper # 50 |
| Pallet-W | 39.4" | 1,000.8 mm |
| Pallet-L | 39.4" | 1,000.8 mm |
| Max Pallet Load | 6,613.9 lb | 3,000 kg |
| Spindle To Pallet Center | 78.7" | 1,999 mm |
| # Axis | 5 | 5 |
| Rapid Traverse (X/Y/Z) | 1,574.8 in/min | 1,574.8 in/min |
| Control | CNC (TOSNUC PX200) | CNC (TOSNUC PX200) |
| Dimensions | 314.6" X 217.9 X 170.5" | 314.6" X 217.9 X 170.5" |
| Weight | 77,161 lb | 77,161 lb |
⌀7.9" quill
Heavy duty w-axis 11.8" travel
Full contouring b-axis rotary table
BIG-PLUS dual-contact spindle
Dual-pallet changer
Twin-drive ball screw mechanism (y-axis)
Oil cooler
Lubrication unit (b-axis)
