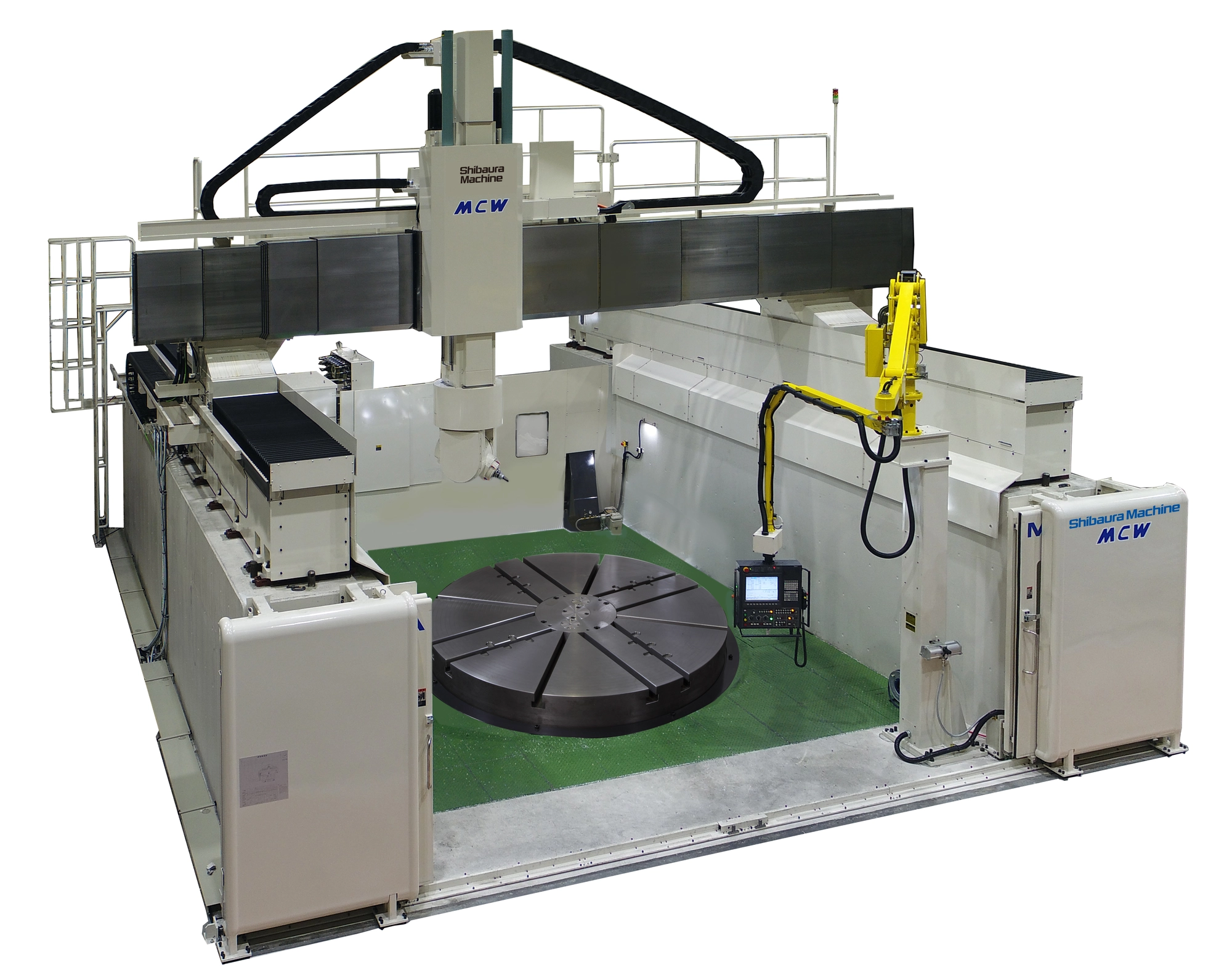

Shibaura Machine MCW-4624 Double Column Type CNC Machining Center, TSC, Table Lubricant Oil Cooling Unit
| X-Axis | 137.8" | 3,500.1 mm |
| Y-Axis | 145.7" | 3,700.8 mm |
| Z-Axis | 35.4" | 899.16 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| # ATC | 60 | 60 |
| Taper | 7/24 #50 | 7/24 #50 |
| Table-W | 94.5" | 2,400.3 mm |
| Table-L | 126" | 3,200.4 mm |
| Distance Between Columns | 180.3" | 4,579.6 mm |
| Distance Table Top To Spindle Nose | 53.5" | 1,358.9 mm |
| Max Table Load | 2,048 lb/sqft. | 2,048 lb/sqft. |
| Rapid Traverse (X/Y/Z) | 984 / 984 / 393.6 in/min. | 984 / 984 / 393.6 in/min. |
| Control | CNC (Tosnuc PX-100) | CNC (Tosnuc PX-100) |
| Dimensions | 389.7" X 326.8" X 204.7" | 389.7" X 326.8" X 204.7" |
Through spindle coolant
Table lubricant oil cooling unit
Scale feedback on x/z/c (option)
+9.8" high-type column, +9.8" ram travel extend (option)
2-pallet APC, multi-pallet magazine system, 4/6/8 Pallets (option)
Automatic measuring RENISHAW probe (option)
Automatic tool setting RENISHAW probe (option)
