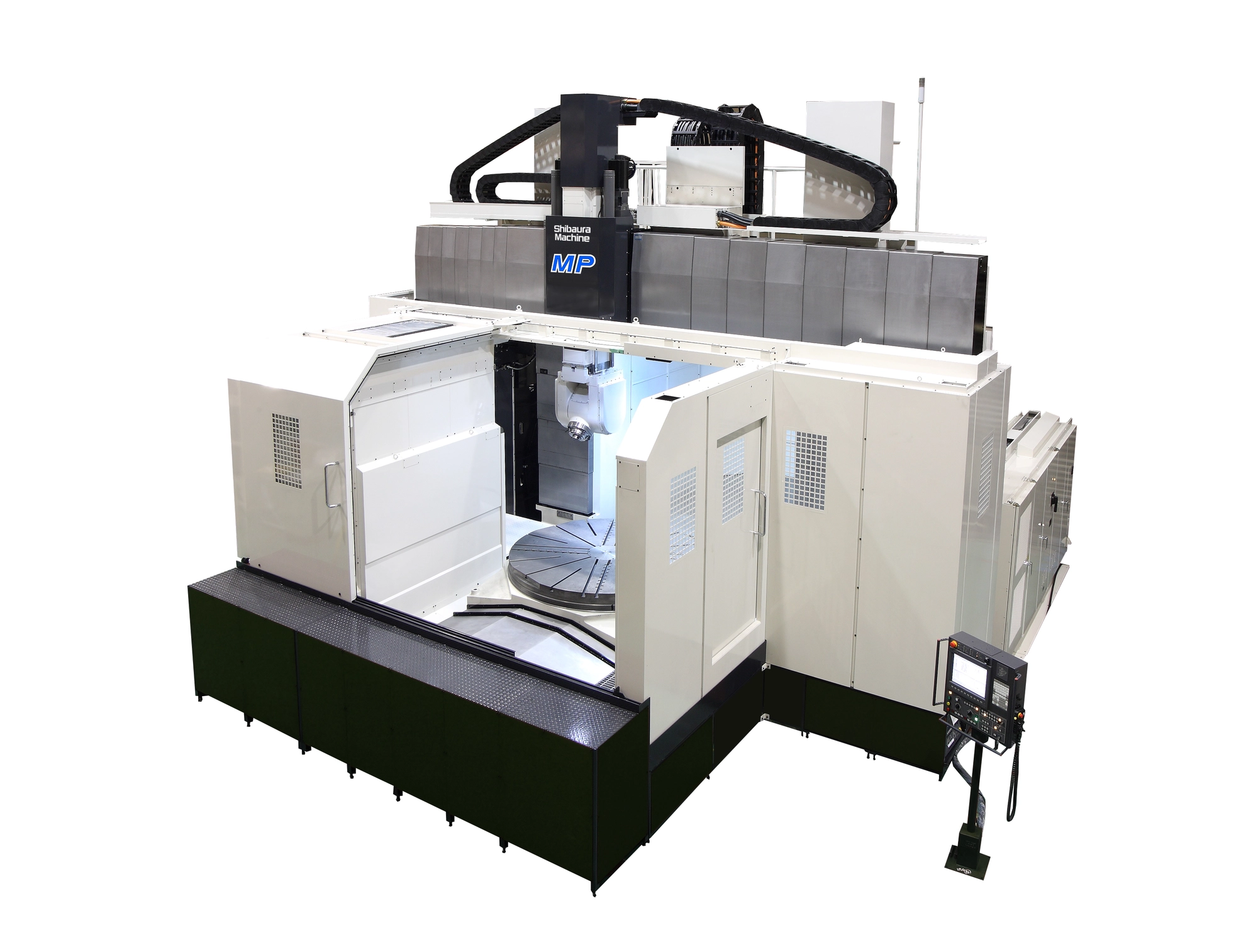

NEW SHIBAURA MACHINE MP-2620(U)
Overview
Description
Shibaura Machine MP-2620(U) Double Column Type CNC Machining Center, Big-Plus Spindle, Snout 240 Designed For Automatic Attachment Tool Changer, Spindle Head Cooling Unit, Scale Feedback On All Axis
Specifications
| X-Axis | 98.4" | 2,499.4 mm |
|---|---|---|
| Y-Axis | 133.8" | 3,398.5 mm |
| Z-Axis | 31.5" | 800.1 mm |
| W-Axis | 39.4" | 1,000.8 mm |
| C-Axis | 360° | 360° |
| Power | 35 hp | 26.1 kW |
| Power (Table) | 50 hp | 37.3 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 60 | 60 |
| Table Dia | 78.7" | 1,999 mm |
| Distance Table Top To Spindle Nose | 70.2" | 1,783.1 mm |
| Table Speed | 250 RPM | 250 RPM |
| Max Table Load | 22,046 lb | 9,999.9 kg |
| Rapid Traverse (X/Y/Z) | 1,572 in/min. | 1,572 in/min. |
| Control | CNC (Tosnuc PX-100) | CNC (Tosnuc PX-100) |
| Dimensions | 393.7" X 334.6" X 260" | 393.7" X 334.6" X 260" |
Equipped With
Big-plus spindle
Snout 240 designed for automatic attachment tool changer (AATC)
Spindle head cooling unit
Scale feedback x/y/z/c axis
Through spindle coolant (option)
Automatic attachment indexing device 5° or 1° (option)
Automatic attachment changer (aac) (option)
1° indexing head designed for AATC (option)
4-axis head w/ automatic attachment tool changer (option)
Z-axis thermal displacement compensation function (option)
