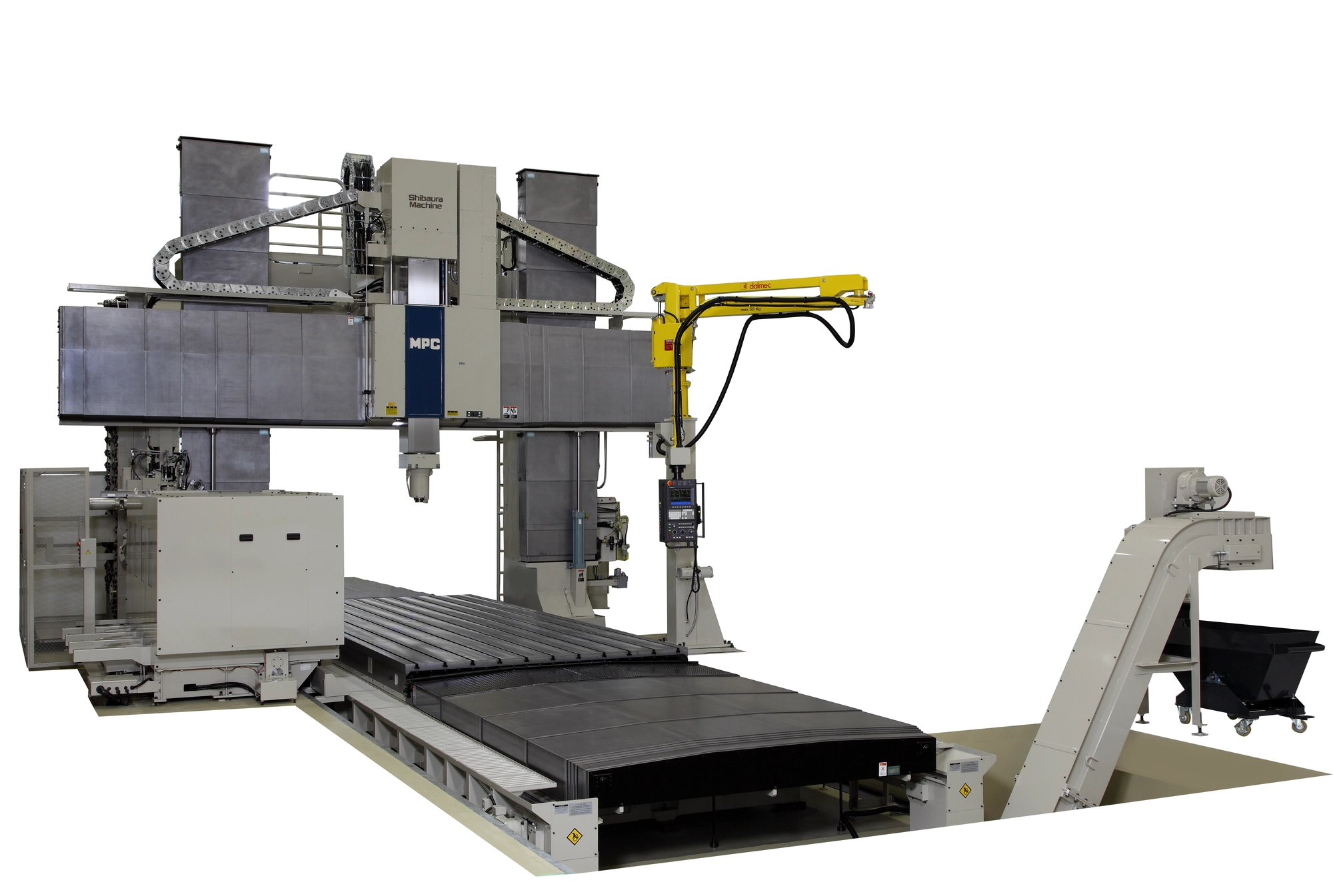

Shibaura Machine MPC-B Double Column Type CNC Machining Center, Ram-type Spindle Head, 5-face Cutter Head, 4-Pos Automatic Attachment Indexing Device, Automatic Tool Loading/Unloading Device, Hydraulic Ram Balancing Cylinder
| X-Axis | 196.8" ~ 354.3" | 196.8" ~ 354.3" |
| Y-Axis | 133.8" / 153.5" / 173.2" | 133.8" / 153.5" / 173.2" |
| Z-Axis | 35.4" | 899.16 mm |
| W-Axis | 35.4" / 63.0" / 90.6" | 35.4" / 63.0" / 90.6" |
| Power | 40 hp | 29.8 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| # ATC | 60 | 60 |
| Table-W | 86.6" / 106.3" / 122.4" | 86.6" / 106.3" / 122.4" |
| Table-L | 157.5" / 196.8" / 255.9" / 34.9" | 157.5" / 196.8" / 255.9" / 34.9" |
| Distance Between Columns | 102.4" / 122" / 141.7" | 102.4" / 122" / 141.7" |
| Distance Table To Spindle Nose | 68.9" / 96.5" / 124" | 68.9" / 96.5" / 124" |
| Max Table Load | 66,000 / 77,000 / 88,000 lb | 66,000 / 77,000 / 88,000 lb |
| Rapid Traverse (X/Y/Z) | 787 / 787 / 393.7 in/min. | 787 / 787 / 393.7 in/min. |
| Rapid Traverse W | 118 in/min. | 118 in/min. |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Ram-type spindle head (attachment change capable)
5-face cutter head designed for AATC
Automatic attachment indexing device (4-pos at 90°)
Oil mist lubrication unit
Automatic tool loading/unloading
Hydraulic unit
Hydraulic ram balancing cylinder
Automatic attachment changer (aac) (option)
Automatic attachment tool changer (AATC) (option)
Automatic attachment indexing device (aai - 5) (option)
Direct table change type automatic workpiece changer (DTC/AWC) (option)
Angle head, snout, universal head (option)
