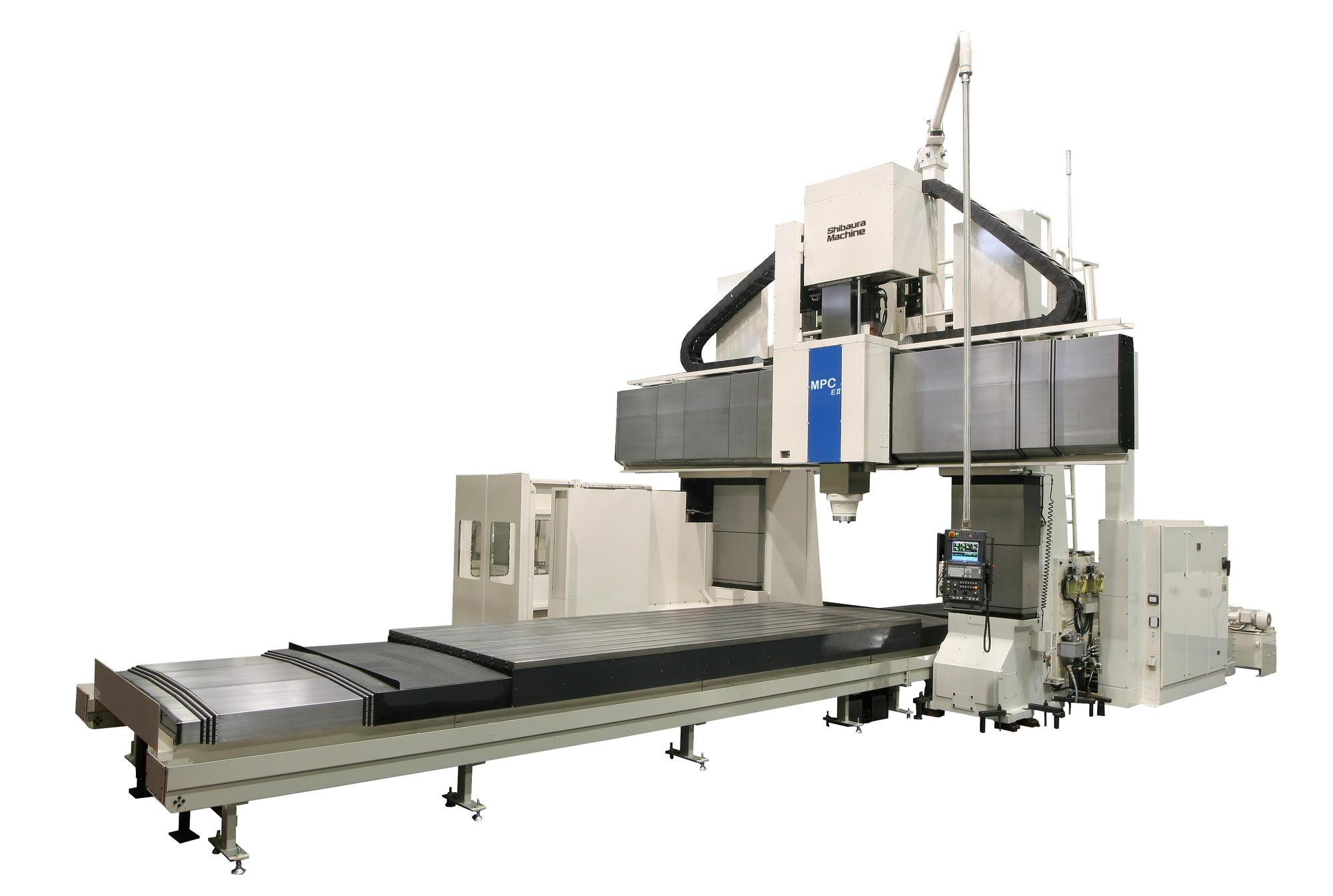

Shibaura Machine MPC-EII Double Column Type CNC Machining Center, TSC, 4-Pos Automatic Attachment Indexing Device, Table Lubricant Oil Cooling Unit, Hydraulic Unit, Ram Balancing Mechanism
| X-Axis | 175.5" ~ 351.0" | 175.5" ~ 351.0" |
| Y-Axis | 113.1" / 132.6" / 152.1" / 171.6" | 113.1" / 132.6" / 152.1" / 171.6" |
| Z-Axis | 35.1" | 891.54 mm |
| W-Axis | 39.4" / 59" | 39.4" / 59" |
| Power | 40 hp | 29.8 kW |
| RPM | 4000 / 6000 RPM | 4000 / 6000 RPM |
| # ATC | 60 | 60 |
| Bearing Inside Diameter | 3.9" | 99.06 mm |
| Taper | 7/24 #50 | 7/24 #50 |
| Table-W | 70.8" / 78.7" / 98.4" / 106.2" / 122" | 70.8" / 78.7" / 98.4" / 106.2" / 122" |
| Table-L | 157.4" / 196.8" / 236.2" / 315" | 157.4" / 196.8" / 236.2" / 315" |
| Distance Between Columns | 81.9" / 101.4" / 120.9" / 140.4" | 81.9" / 101.4" / 120.9" / 140.4" |
| Distance Table To Spindle Nose | 68.2" / 85.6" / 87.7" | 68.2" / 85.6" / 87.7" |
| Max Table Load | 44,000 lb ~ 88,000 lb | 44,000 lb ~ 88,000 lb |
| Rapid Traverse (X/Y/Z) | 984 / 984 / 393.7 in/min. | 984 / 984 / 393.7 in/min. |
| Rapid Traverse W | 39.3 in/min. | 39.3 in/min. |
| Control | CNC (TOSNUC 999) | CNC (TOSNUC 999) |
Through spindle coolant
Table lubricant oil cooling unit
Automatic attachment indexing device (4-pos at 90°)
Hydraulic unit
Ram balancing mechanism
Scale feedback on x/z/c (option)
+9.8" high type column, +9.8" ram travel extend (option)
2-pallet APC, multi-pallet magazine system, 4/6/8 pallets (option)
Automatic measuring Renishaw probe (option)
Automatic tool setting Renishaw probe (option)
