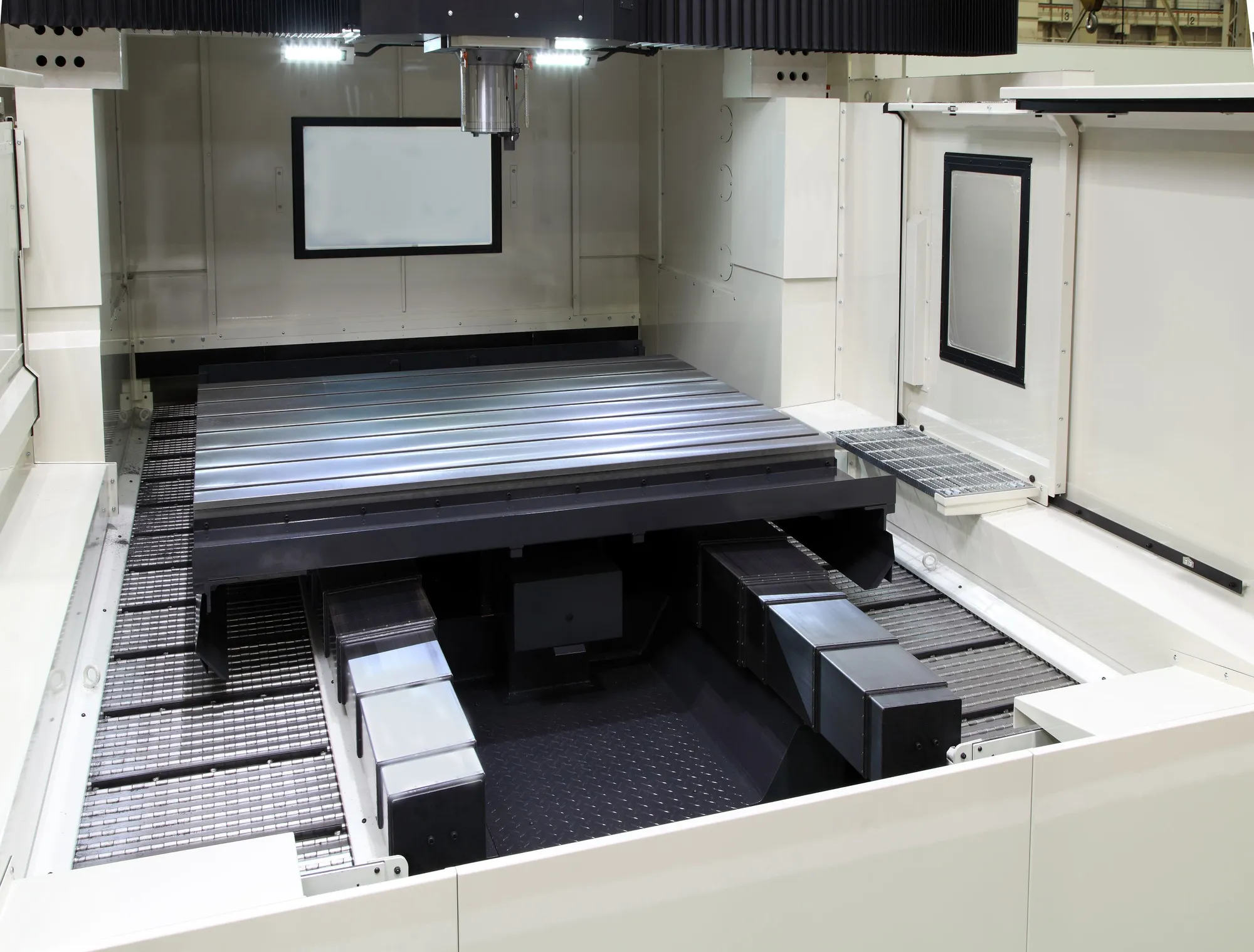

NEW SHIBAURA MACHINE MPF
Overview
Description
Shibaura Machine MPF Double Column Type CNC Machining Center, Big-Plus Spindle, TSC, Tool Clamping/Unclamping, Table Lubricant Oil Cooling Unit, Hydraulic Unit
Specifications
| X-Axis | 55.1" ~ 216.5" | 55.1" ~ 216.5" |
|---|---|---|
| Y-Axis | 82.7" / 102.4" / 122" | 82.7" / 102.4" / 122" |
| Z-Axis | 28.4" | 721.36 mm |
| W-Axis | 0 / 19.6" | 0 / 19.6" |
| Power | 35 hp | 26.1 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 60 | 60 |
| Bearing Inside Diameter | 3.937" | 100 mm |
| Taper | 7/24 #50 | 7/24 #50 |
| Table-W | 55.11" / 63" / 118.11" X 157.48" X | 55.11" / 63" / 118.11" X 157.48" X |
| Table-L | 70.86" / 78.74" / 98.42" / 110.23" | 70.86" / 78.74" / 98.42" / 110.23" |
| Distance Between Columns | 82.7" / 102.4" / 122" | 82.7" / 102.4" / 122" |
| Max Table Load | 22,000 / 44,000 lb | 22,000 / 44,000 lb |
| Rapid Traverse (X/Y/Z) | 1,181 / 1,181 / 787 in/min. | 1,181 / 1,181 / 787 in/min. |
| Control | CNC (Tosnuc PX-100) | CNC (Tosnuc PX-100) |
Equipped With
Big-plus spindle
Through spindle coolant
Table lubricant oil cooling unit
Tool clamping/unclamping
Hydraulic unit
Scale feedback x/z/c (option)
+9.8" high-type column | +9.8" ram travel extend (option)
2 pallet APC, multi-pallet magazine system, 4/6/8 pallets (option)
Automatic measuring Renishaw probe (option)
Automatic tool setting Renishaw probe (option)
