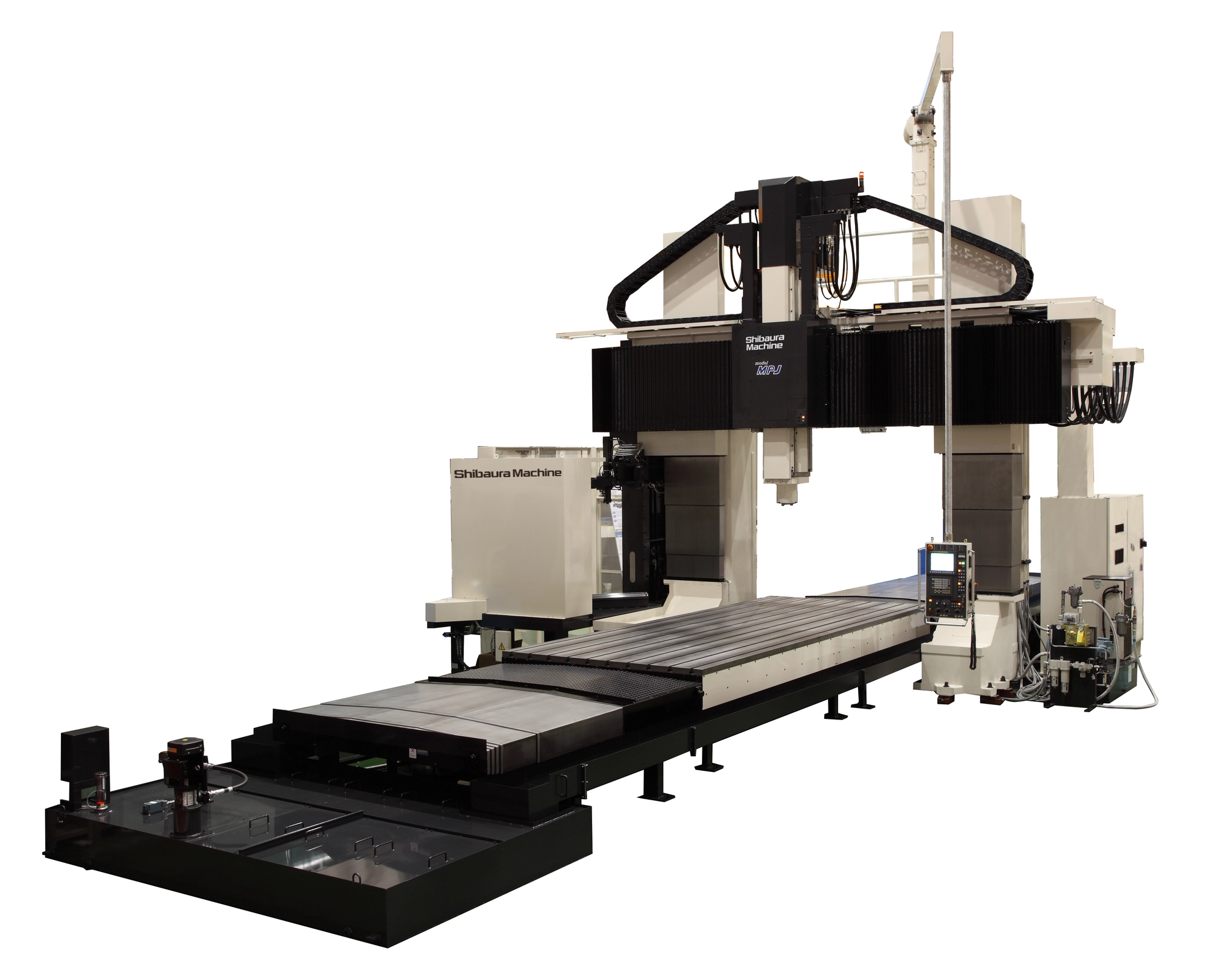

Shibaura Machine MPJ-M Double-Column Type CNC Machining Center, TSC, Big-Plus Spindle, 4-Pos Automatic Attachment Indexing Device, Ram-type Spindle Head, W-Axis NC Positioning, Table Lubricant Oil Cooling Unit, Tool Clamping/Unclamping, Ram Cooling Oil Temperature Regulator Unit
| X-Axis | 177.2" / 216.5" / 255.9" | 177.2" / 216.5" / 255.9" |
| Y-Axis | 118.1" / 137.8" | 118.1" / 137.8" |
| Z-Axis | 31.5" | 800.1 mm |
| W-Axis | 39.4" / 59" | 39.4" / 59" |
| Power | 60 hp | 44.7 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 60 | 60 |
| Bearing Inside Diameter | 3.94" | 100.08 mm |
| Taper | 7/24 #50 | 7/24 #50 |
| Table-W | 78.7" / 98.43" | 78.7" / 98.43" |
| Table-L | 157.48" / 196.85" / 236.22" | 157.48" / 196.85" / 236.22" |
| Distance Between Columns | 102.3" / 122" | 102.3" / 122" |
| Distance Table Top To Spindle Nose | 68.31" | 1,735.1 mm |
| Max Table Load | 55,000 lb | 24,947.6 kg |
| Rapid Traverse (X/Y/Z) | 787.4 / 787.4 / 472.44 in/min. | 787.4 / 787.4 / 472.44 in/min. |
| Rapid Traverse W | 118 in/min. | 118 in/min. |
| Control | CNC (Fanuc 31iB5) | CNC (Fanuc 31iB5) |
Big-plus spindle
Through spindle coolant
Automatic attachment indexing device (4-pos at 90°)
RAM-type Spindle Head (Attachment change capable)
W-axis NC positioning
Table Lubricant Oil Cooling unit
Tool clamping/unclamping
Ram cooling oil temperature regulator unit
Scale feedback on X and Z Linear axes, and C Rotary axis. (option)
Automatic Attachment Changer (AAC) (option)
Automatic Attachment Tool Changer (AATC) (option)
Automatic attachment indexing device 5° and 1° (option)
1° indexing head designed for AATC (option)
Angle head and Snout (option)
