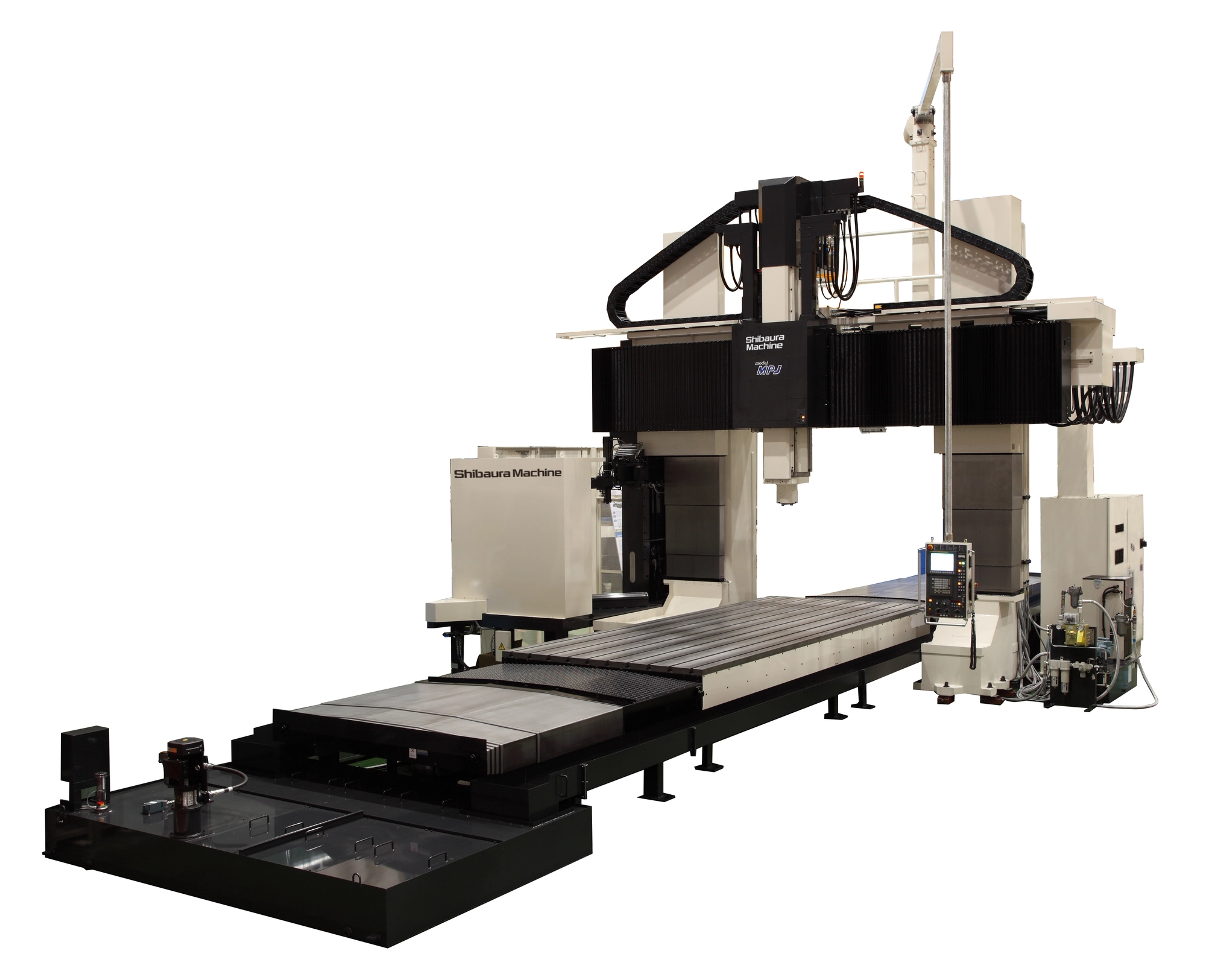

Shibaura Machine MPJ Double Column Type CNC Machining Center, 4-Pos Automatic Attachment Indexing Device, Ram-type Spindle Head, Tool Clamping/Unclamping Unit, W-Axis NC Positioning, Oil Mist Lubrication Unit
| X-Axis | 165.3" / 204.7" / 244.1" | 165.3" / 204.7" / 244.1" |
| Y-Axis | 118.1" / 137.8" / 157.5" | 118.1" / 137.8" / 157.5" |
| Z-Axis | 31.5" | 800.1 mm |
| W-Axis | 39.4" | 1,000.8 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| # ATC | 60 | 60 |
| Taper | 7/24 #50 | 7/24 #50 |
| Table-W | 78.74" / 98.43" / 122.05" | 78.74" / 98.43" / 122.05" |
| Table-L | 157.48" / 196.85" / 236.22" | 157.48" / 196.85" / 236.22" |
| Distance Between Columns | 102.4" / 122" / 141.7" | 102.4" / 122" / 141.7" |
| Max Table Load | 44,000 ~ 72,750 lb | 44,000 ~ 72,750 lb |
| Rapid Traverse (X/Y/Z) | 65.62 / 65.62 / 32.81 in/min. | 65.62 / 65.62 / 32.81 in/min. |
| Rapid Traverse W | 3.28 in/min. | 3.28 in/min. |
| Control | CNC (Fanuc 31iB5) | CNC (Fanuc 31iB5) |
Ram-type spindle head (attachment change capable)
Automatic attachment indexing device (4-pos at 90°)
W-axis NC positioning
Tool clamping/unclamping unit
Oil mist lubrication unit
Hydraulic unit
Ram cooling oil temperature regulator
5-face cutter head designed for AATC (option)
Automatic attachment changer (AAC) (option)
Automatic attachment tool changer (AATC) (option)
Automatic attachment indexing device (AAI - 5°) (option)
Direct table change type automatic workpiece changer (DTC/AWC) (option)
Angle head and snout (option)
