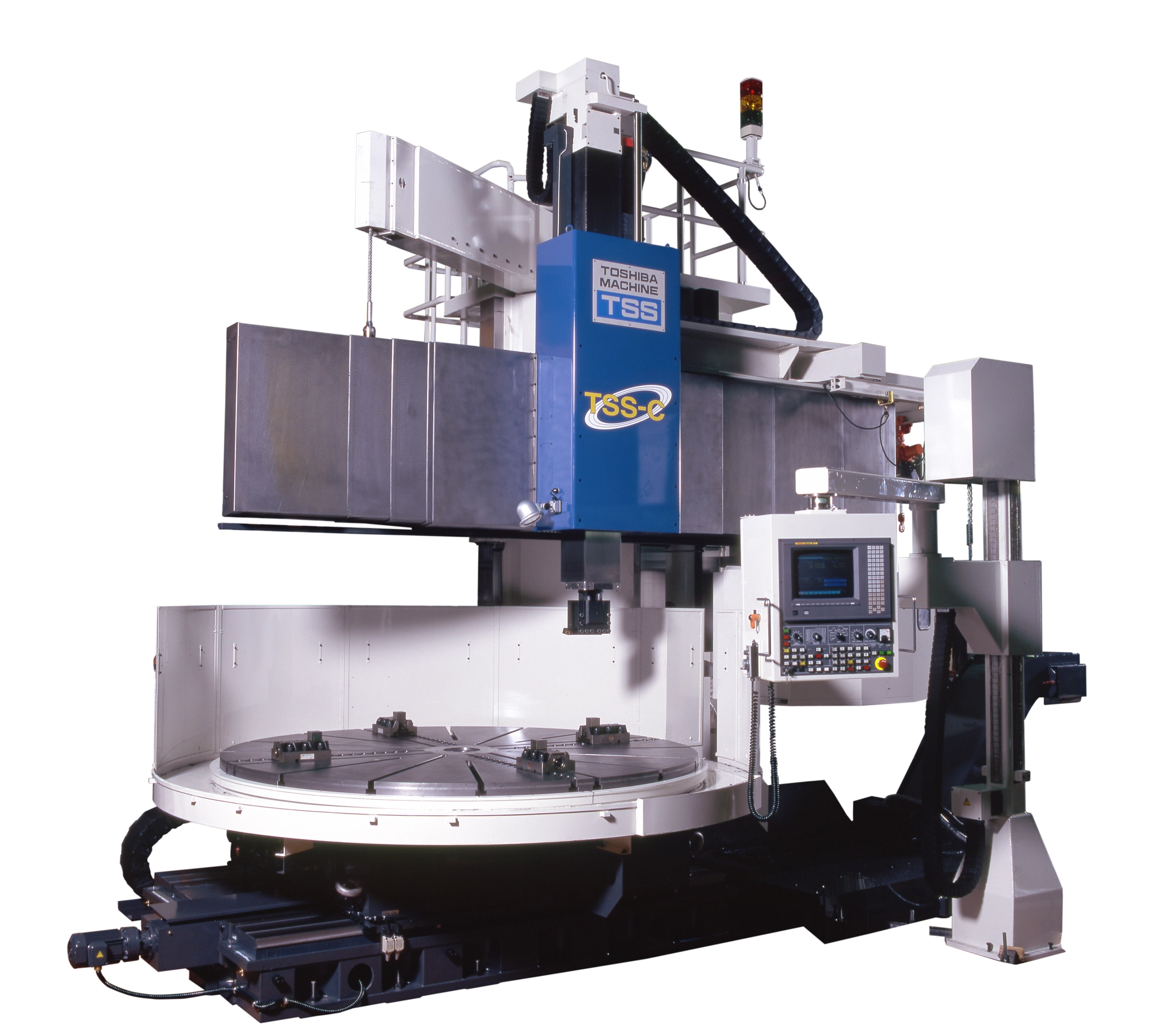

NEW SHIBAURA MACHINE TSS-20/40C(S)
Overview
Description
Shibaura Machine TSS-20/40C(S) CNC Vertical Boring And Turning Mill, Dual Face Contact TSC, C-Axis, Railhead Straightness Compensation, Table Lubricant Oil Cooling Unit
Specifications
| Table Dia | 78.7" | 1,999 mm |
|---|---|---|
| Swing | 157.5" | 4,000.5 mm |
| Cut Height | 102.3" | 2,598.4 mm |
| X-Axis (Horizontal Ram) | 84.6 | 84.6 |
| Z-Axis (Vertical Ram) | 39.3" | 998.22 mm |
| Vertical Travel (cross rail) | 47.2" | 1,198.9 mm |
| Power | 24.6 hp | 18.3 kW |
| Power (Table) | 60 hp | 44.7 kW |
| RPM | 1,500 RPM | 1,500 RPM |
| Table Speed | 100 RPM | 100 RPM |
| Taper | 7/24 #50 | 7/24 #50 |
| Rapid Traverse (X/Z) | 394 / 315 in/min. | 394 / 315 in/min. |
| Max Table Load | 44,000 lb | 19,958.1 kg |
| Control | CNC (Fanuc 31i-B) | CNC (Fanuc 31i-B) |
| Dimensions | 324" X 256" X 252" | 324" X 256" X 252" |
| Weight | 68,350 lb | 68,350 lb |
Equipped With
Dual face contact through spindle coolant
Railhead straightness compensation device (x-axis)
C-axis
Table lubricant oil cooling unit
Scale feedback on x/z/c (option)
+15.7" high type column (option)
+31.5" extra high type column (option)
+9.8" ram travel extend (option)
+19.7" extra ram travel extend (option)
Automatic measuring Renishaw probe (option)
Automatic tool setting Renishaw RTS probe (option)
