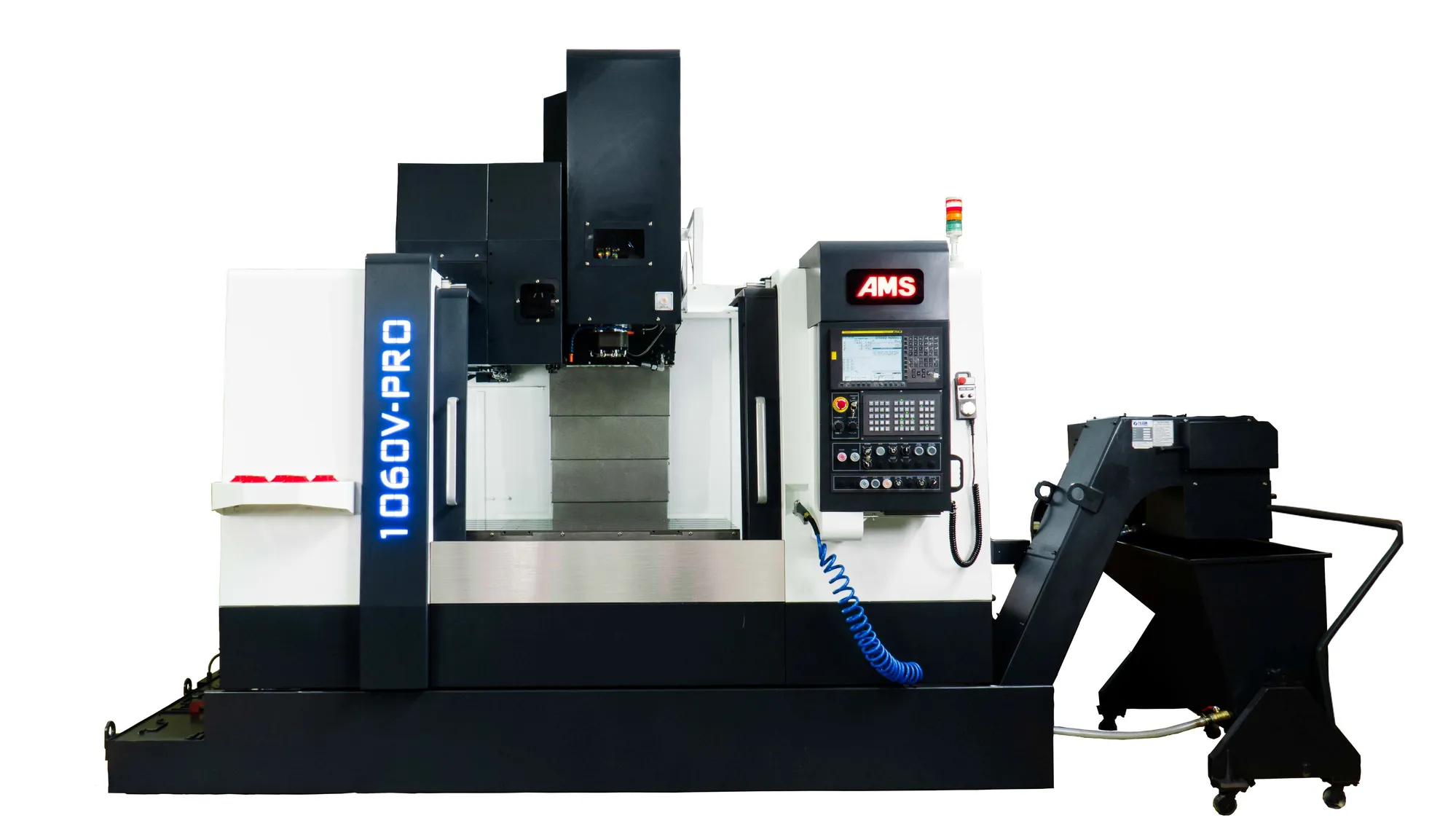

1060V Package:
12,000 RPM – 25HP Direct Drive Spindle-STANDARD
Big Plus Spindle Modification-STANDARD
FANUC OiMF+ Control w/ 10.4” Screen-STANDARD
30 Tool Magazine w/ Rear Load Access-STANDARD
Full Machine Enclosure-STANDARD
Side Discharge Chip Conveyor-STANDARD
FANUC Fine Mould Feature with AICCII with 400 Block Look Ahead-STANDARD
CE Specification-STANDARD
FANUC Tool Life Management-STANDARD
| SPINDLE TAPER | CAT 40 | CAT 40 |
| X Travel | 39.4" | 1,000.8 mm |
| Y Travel | 23.6" | 599.44 mm |
| Z Travel | 23.6" | 599.44 mm |
| TABLE (L) | 47.2" | 1,198.9 mm |
| TABLE (W) | 23.6" | 599.44 mm |
| SPINDLE SPEED | 12,000 RPM | 12,000 RPM |
| SPINDLE HP | 25 hp | 18.6 kW |
| MAGAZINE CAPACITY | 30 | 30 |
| Control | CNC (Fanuc 0iMF Plus Control_10.4” LCD) | CNC (Fanuc 0iMF Plus Control_10.4” LCD) |
