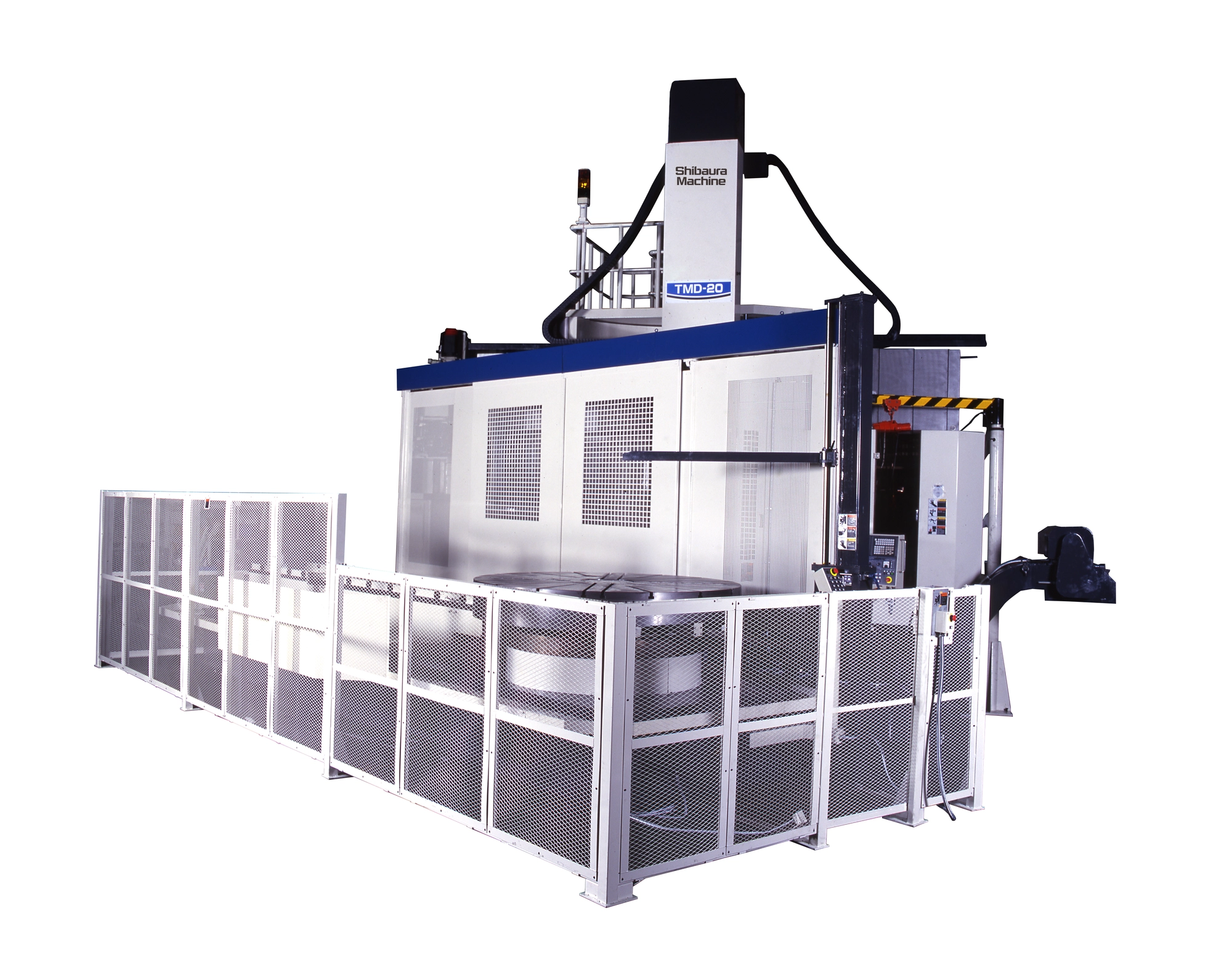

NEW SHIBAURA MACHINE TMD-20
Overview
Description
Shibaura Machine TMD-20 CNC Vertical Boring And Turning Mill, 3000 RPM Live Spindle, Dual-Face Contact Spindle, C-Axis, TSC, Table Lubricant Oil Cooling Unit, Portable Handwheel
Specifications
| Table Dia | 78.7" | 1,999 mm |
|---|---|---|
| Swing | 106.3" | 2,700 mm |
| Cut Height | 63" | 1,600.2 mm |
| X-Axis (Horizontal Ram) | -39.5" ~ 53.9" | -39.5" ~ 53.9" |
| Z-Axis (Vertical Ram) | 41.3" | 1,049 mm |
| Vertical Travel (cross rail) | 29.5" | 749.3 mm |
| Power | 30 hp | 22.4 kW |
| Power (Table) | 60 hp | 44.7 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table Speed | 250 RPM | 250 RPM |
| Taper | 7/24 #50 | 7/24 #50 |
| ATC | 24 | 24 |
| Rapid Traverse (X/Z) | 394 in/min. | 394 in/min. |
| Max Table Load | 33,000 lb | 14,968.6 kg |
| Control | CNC (Fanuc 31i-B) | CNC (Fanuc 31i-B) |
| Dimensions | 263" X 228" X 248" | 263" X 228" X 248" |
Equipped With
Dual-face contact through spindle coolant
Table lubricant oil cooling unit
C-axis
Portable handwheel feed unit (x/y/z)
Scale feedback on x/z/c (option)
2-pallet APC multi-pallet magazine system, 4/6/8 pallets (option)
Automatic measuring Renishaw probe (option)
Automatic tool setting Renishaw RTS probe (option)
