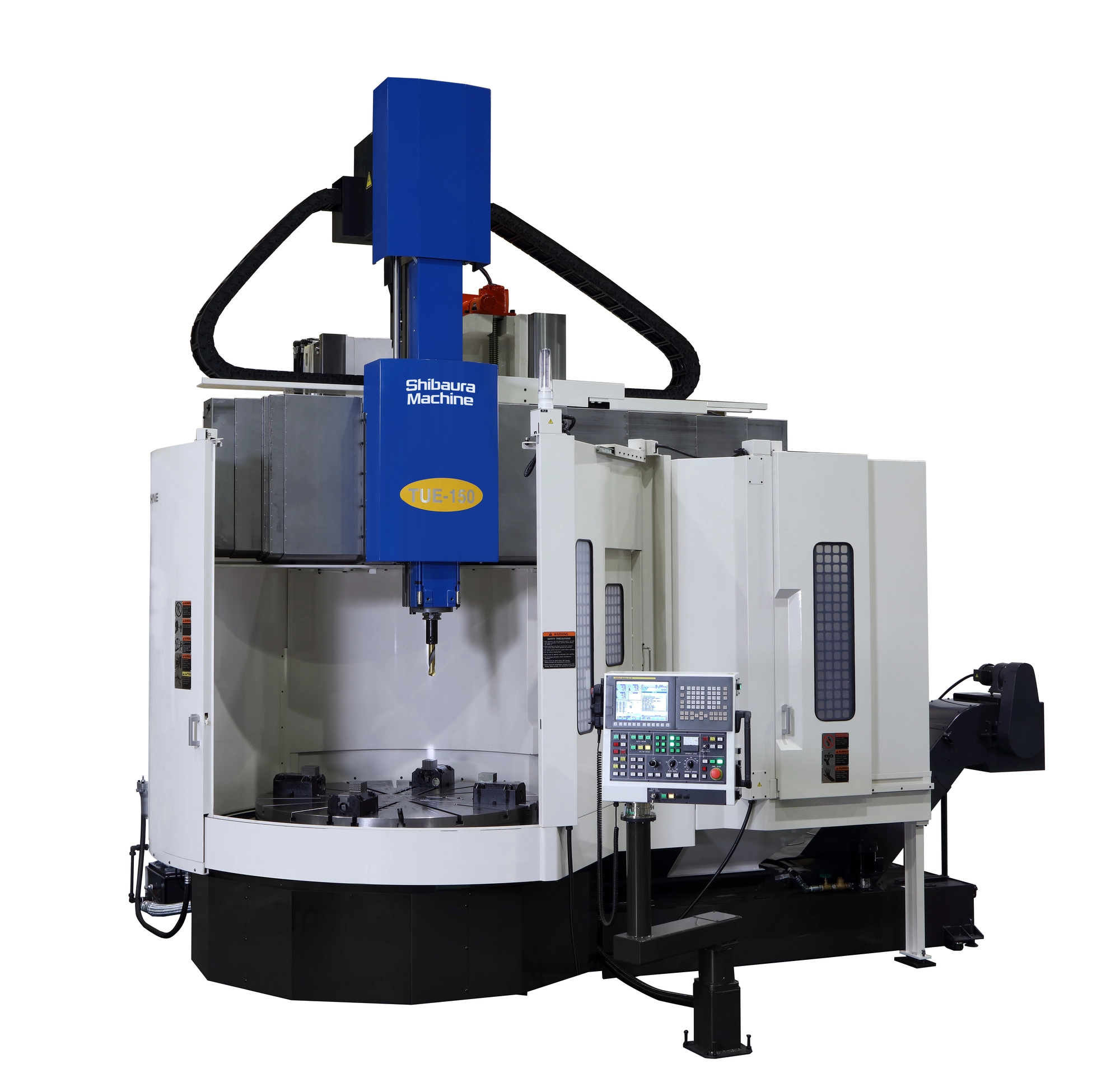

NEW SHIBAURA MACHINE TUE-200(S)
Overview
Description
Shibaura Machine TUE-200(S) CNC Vertical Boring And Turning Mill, Dual Face Contact TSC, C-Axis, Table Lubricant Oil Cooling Unit, Accessible Slide Door
Specifications
| Table Dia | 78.74" | 2,000 mm |
|---|---|---|
| Swing | 94.48" | 2,399.8 mm |
| X-Axis (Horizontal Ram) | -1.97" ~ 53.15" | -1.97" ~ 53.15" |
| Z-Axis (Vertical Ram) | 35.43" | 899.92 mm |
| Vertical Travel (cross rail) | 39.37" | 1,000 mm |
| Power | 24.6 hp | 18.3 kW |
| Power (Table) | 60 hp | 44.7 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table Speed | 240 RPM | 240 RPM |
| Taper | 7/24 #50 | 7/24 #50 |
| ATC | 18 | 18 |
| Rapid Traverse (X/Z) | 590.55 / 472.4 in/min. | 590.55 / 472.4 in/min. |
| Max Table Load | 33,070 lb | 15,000.3 kg |
| Control | CNC (Fanuc OiTF) | CNC (Fanuc OiTF) |
| Dimensions | 252.8" X 172.8" X 217.5" | 252.8" X 172.8" X 217.5" |
Equipped With
Dual face contact through spindle coolant
C-axis
Linear scale feedback (x-axis)
Table lubricant oil cooling unit
Accessible slide door
Automatic measuring Renishaw probe (option)
Automatic tool setting Renishaw probe (option)
