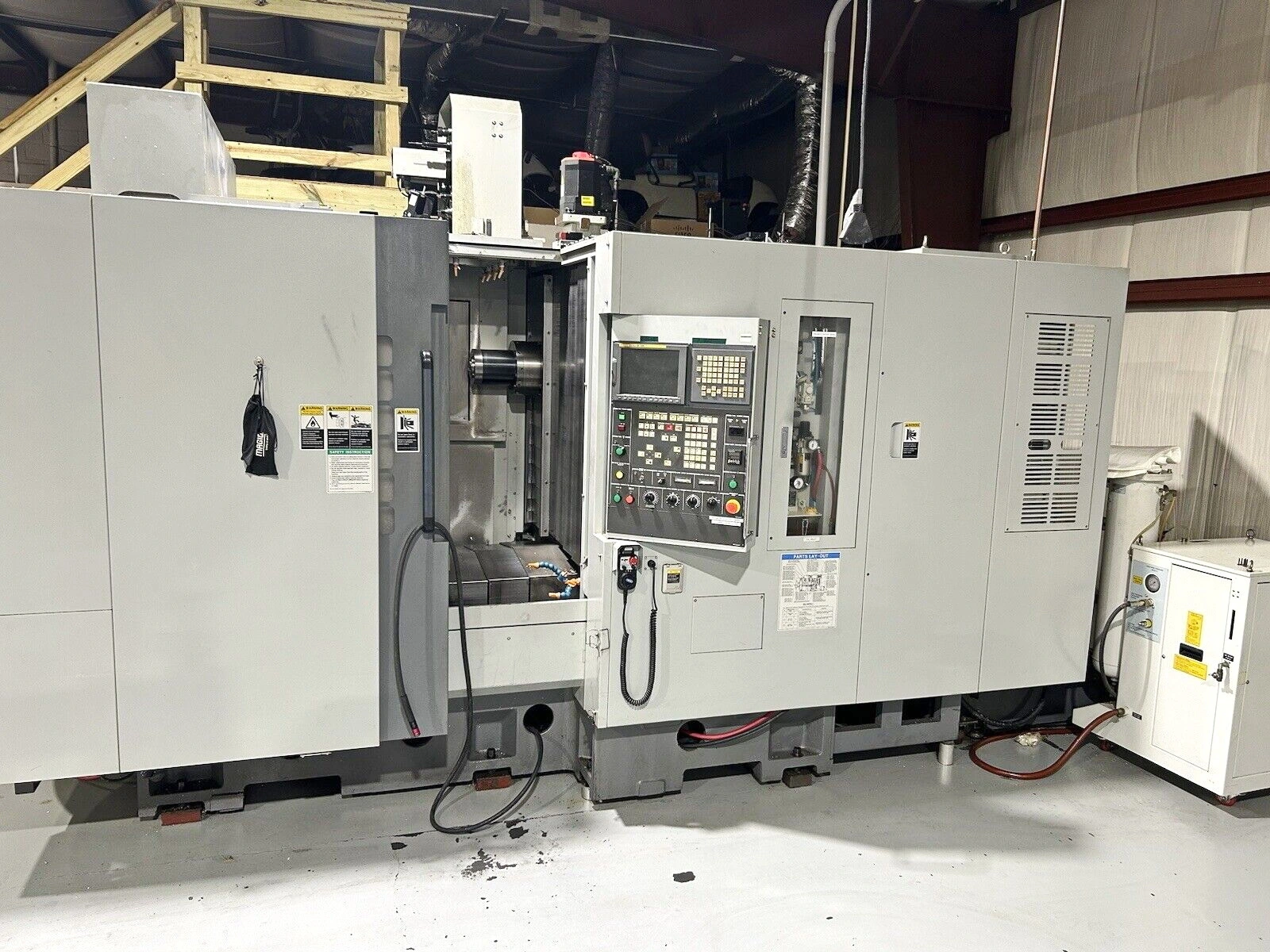

2010 Hyundai Kia HS400 Horizontal CNC Machining Center, High-Pressure TSC, Chip Conveyor, Spindle Oil Cooling, Rigid Tapping
| X-Axis | 24.4" | 619.76 mm |
| Y-Axis | 22" | 558.8 mm |
| Z-Axis | 25.6" | 650.24 mm |
| A-Axis | 1° Indexing | 1° Indexing |
| Power | 29.5 hp | 22 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT-40 | CAT-40 |
| Pallet-W | 15.75" | 400.05 mm |
| Pallet-L | 15.75" | 400.05 mm |
| Max Workpiece Diameter | 25.6" | 650.24 mm |
| Max Workpiece Height | 25.6" | 650.24 mm |
| Max Pallet Load | 1,102 lb | 499.9 kg |
| # Axis | 3 | 3 |
| Rapid Traverse (X/Y/Z) | 1,969 in/min. | 1,969 in/min. |
| Control | CNC (Fanuc 18i-MB) | CNC (Fanuc 18i-MB) |
| Dimensions | 181.5" X 92.5" X 102.8" | 181.5" X 92.5" X 102.8" |
Through spindle coolant (1000 psi)
6-pallets (4 extra)
Chip conveyor
Rigid tapping
Spindle oil cooler
Spindle override
