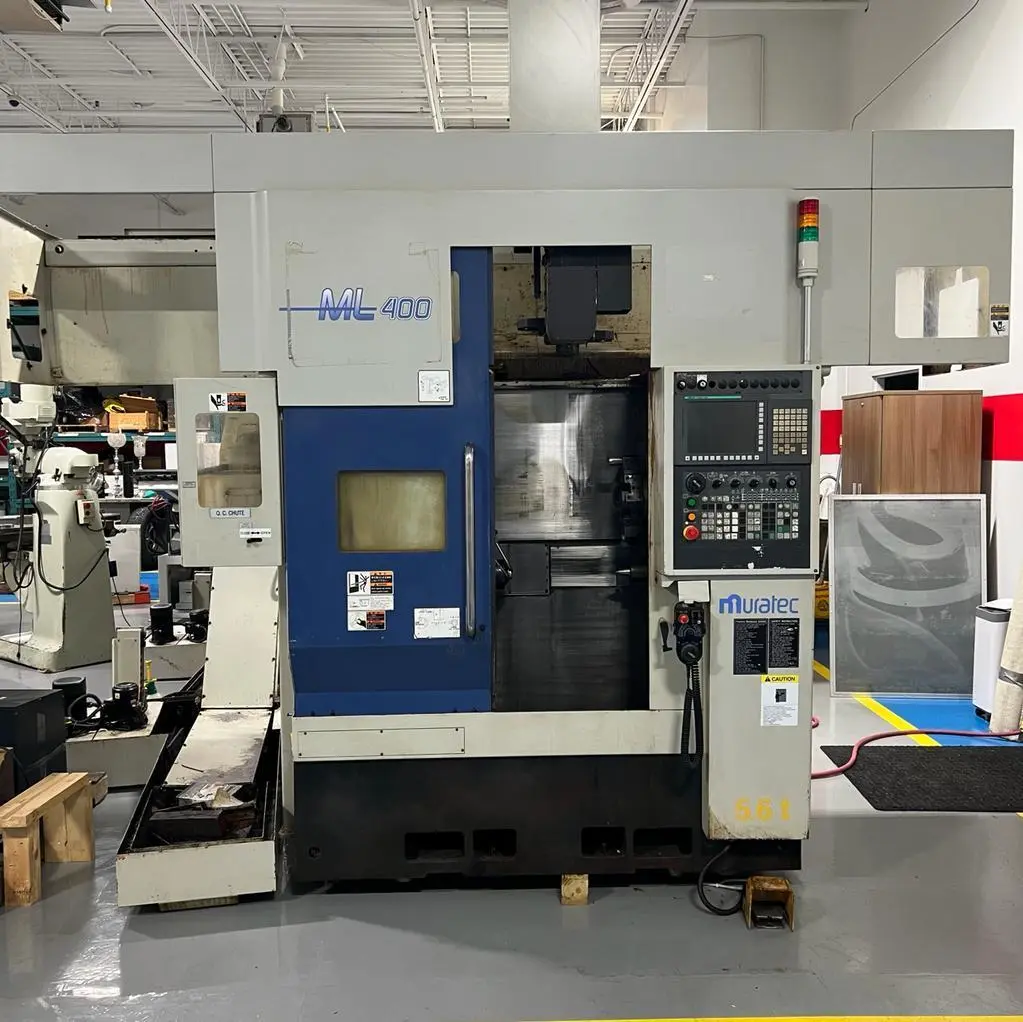

2010 Muratec ML400 CNC Lathe, Fanuc Gantry Loader, Tailstock, Collet Chuck, Chip Conveyor, Coolant Tank, Tool Presetter
| Swing | 13.38" | 339.85 mm |
| Machining Length | 15.35" | 389.89 mm |
| Max Turning Dia | 7.87" | 199.9 mm |
| # Axis | 2 | 2 |
| Spindle Bore | 1.25" | 3.2 cm |
| Power | 7.5 kW | 10.1 hp |
| Max RPM | 4,500 RPM | 4,500 RPM |
| X-Axis Travel | 5.11" | 129.79 mm |
| Z-Axis Travel | 16.92" | 429.77 mm |
| Tailstock | Yes | Yes |
| Quill Travel | 11.81" | 299.97 mm |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Turret Capacity | 6 | 6 |
| Made In | Japan | Japan |
| Control | CNC (Fanuc 32i-T) | CNC (Fanuc 32i-T) |
| Weight | 9,700 lb | 9,700 lb |
Fanuc Loader Specifications:
[Stroke]
X-Axis: 33.46"
Y-Axis: 10.62"
Z-Axis: Respective Specifications
Alpha Axis: 180°
[Max Speed]
X-Axis: 3,937 in/min.
Y-Axis: 1,377 in/min.
Alpha Axis: 1.5 sec/180°
Fanuc gantry loader
Tailstock
Collet chuck
Chip conveyor
Tool presetter
Coolant tank
