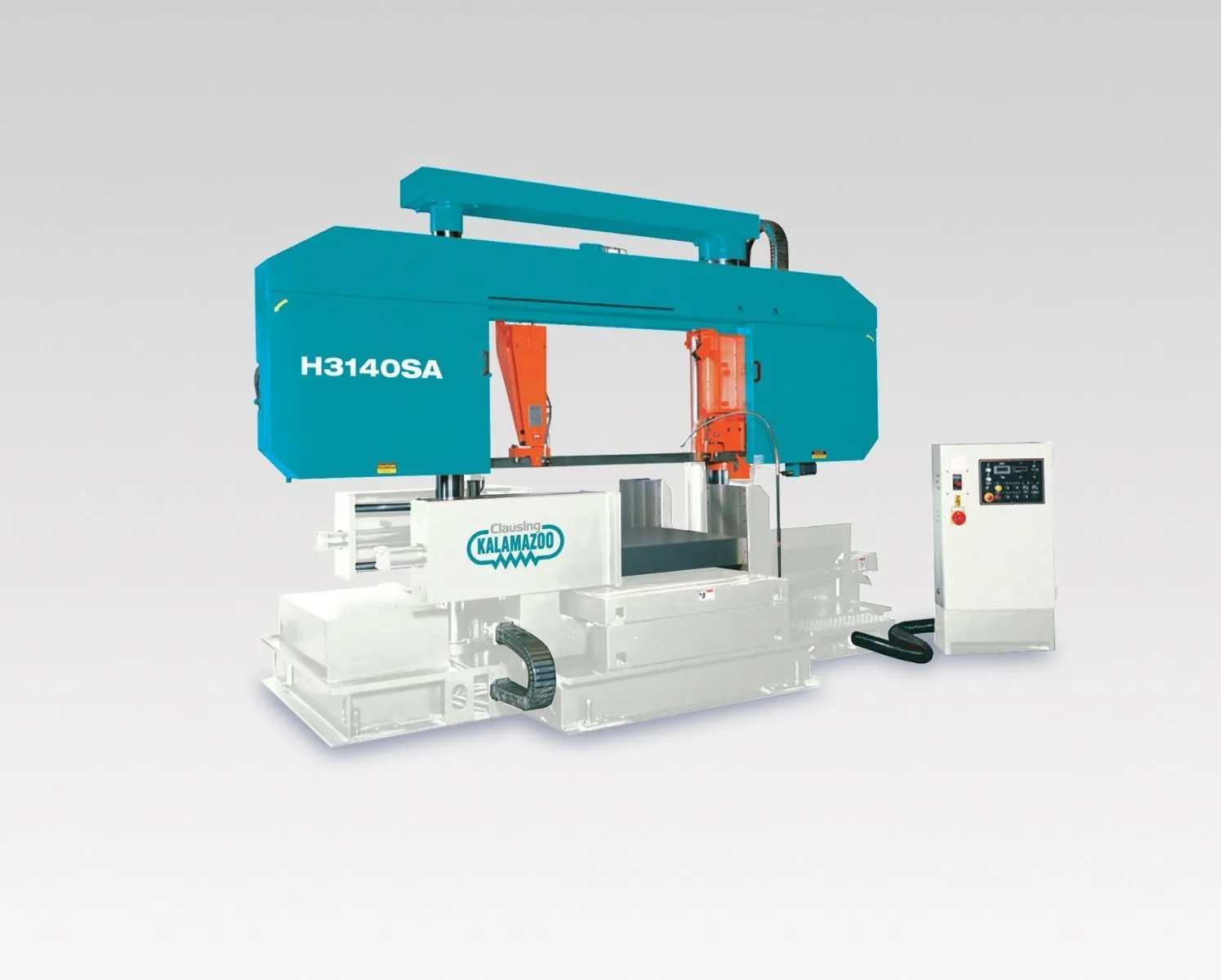

NEW CLAUSING KALAMAZOO H3140SA
Overview
Clausing Kalamazoo Double Column Semi-automatic Horizontal Bandsaw 31.5” x 39.4” Max Rectangular Capacity, 31.5” Round Capacity, 49 to 264 SFPM Blade Speed, 15 Hp drive motor, 230 volts 3 Phase
Features and Benefits:
This model is designed for rugged production use, and it offers high production output and heavy-duty performance in Semi-automatic operation. Voltage specific model, at 230 volts, other voltages may require a transformer or special order.Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Specs
Drive Type Inverter drive with infinitely variable blade speeds with blade speed indicator
Maximum Capacity Round (inch) 31.5
Maximum Capacity Rectangle (inch) 31.5 x 39.4
Voltage 230
Phase 3
Coolant System Yes
Angular Cuts at 45 Degrees (inch) N/A
Blade Size 2.5” x .063” x 346.5”
Blade Speeds (SFPM) 49-264
Blade Guide Type Carbide
Motor Horsepower 15
Equipped With
Inverter drive with infinitely variable blade speeds with blade speed indicator
Dual Column design with precision ground columns ensures smooth saw frame movement and consistent cutting force throughout the cutting cycle
Hydraulic controlled tungsten carbide blade guide
Hydraulic controlled blade tension device
Hydraulic driven guide arm
Precise flow control valve to finely adjust the cutting speed
Two full stroke cylinder vices
Proximity switch for sensing blade slippage or breakage
Discharge table with built-in coolant return
Auto shut-off function automatically stops the machine and shuts down the hydraulic system at the end of the last cut
2 Year limited warranty
